Fränkische Rohrwerke 19230110 KabuflexRBeton110 gr Conduit Grey 93 mm 50 m
Product type
Conduit
Content
50 m
Material
Polyethylene (PE)
Conduit features
pressure-resistant
Inside diameter
93 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Material: Plastic
- Material quality: Polyethylene (PE)
- Surface protection: Untreated
- Polished surface: No.
- Transparent: No.
- Colour: grey
- Pipe inner color: Green
- Design: Flexible
- Shape: Corrugated on the outside, smooth on the inside
- 93 mm internal diameter
- Outer diameter: 110 mm
- Shock resistance according to EN 61386-24: Normal
- Compressive strength according to EN 61386-24: Type 750
- Product type
Conduit
- Content
50 m
- Factory colour
Grey
- Material
Polyethylene (PE)
- Conduit features
pressure-resistant
- Inside diameter
93 mm
- Outside Ø
110 mm
- Length
50 m
- Manufacturer part #
19230110
- Type
KabuflexRBeton110 gr
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3407312 Fränkische Rohrwerke 19230110 KabuflexRBeton110 gr Conduit Grey 93 mm 50 m
User & Safety Instructions
User & Safety Instructions 3407312 Fränkische Rohrwerke 19230110 KabuflexRBeton110 gr Conduit Grey 93 mm 50 m
Description

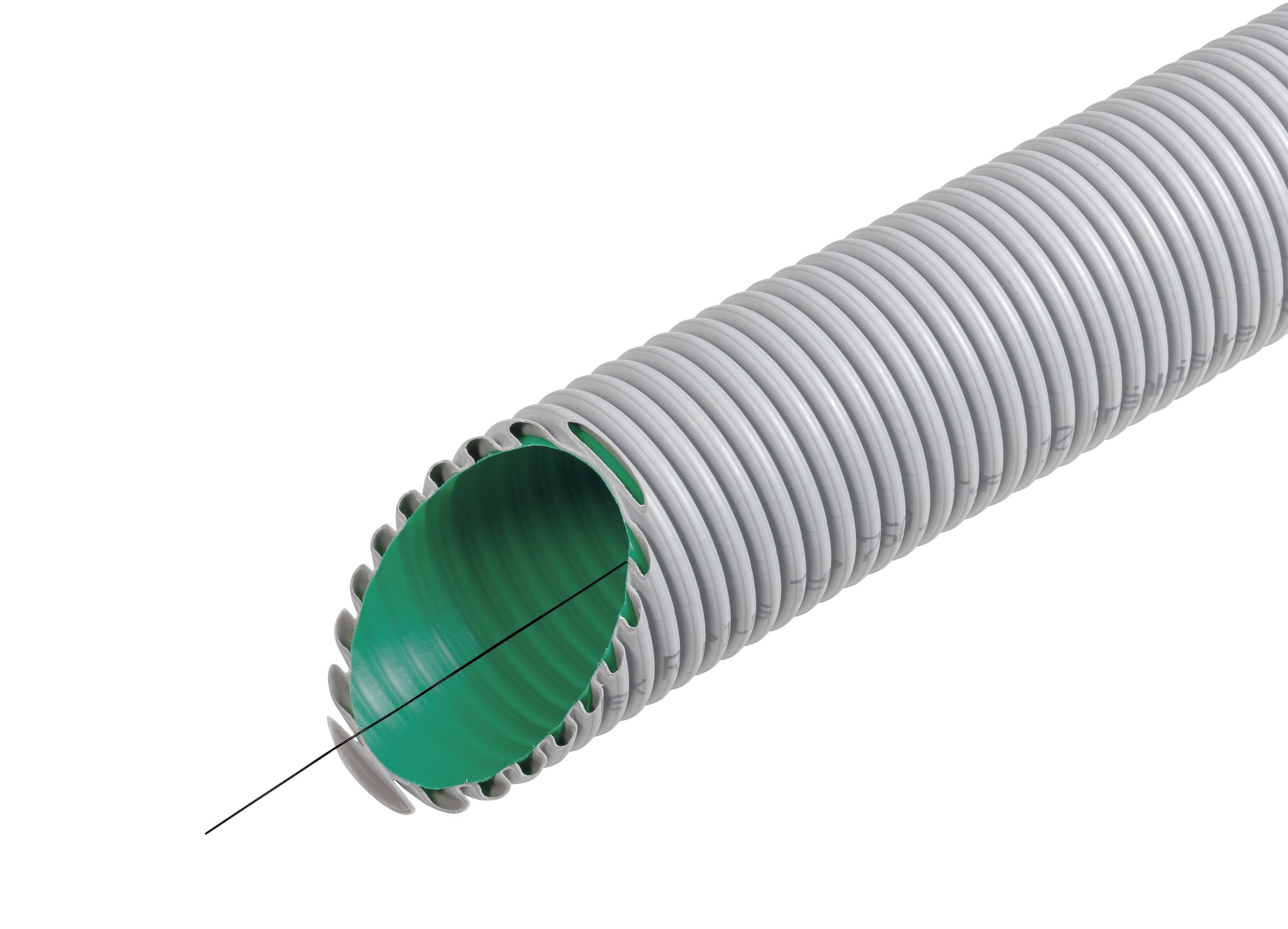

Kabuflex R plus Type 750 is a flexible PE cable protective tube for laying concrete floor panels, in gray, halogen-free, composite design with optimized green inner skin for fast cable entry. Another feature is the improved stability through higher use of material. It is corrugated on the outside and has a transparent double plug-on sleeve on one side (Sandproof).
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x 50 m corrugated conduit
