Fränkische Rohrwerke 19242075 Cable grommet gas-tight Terminal Ø (max.) 24 mm 1 pc(s)

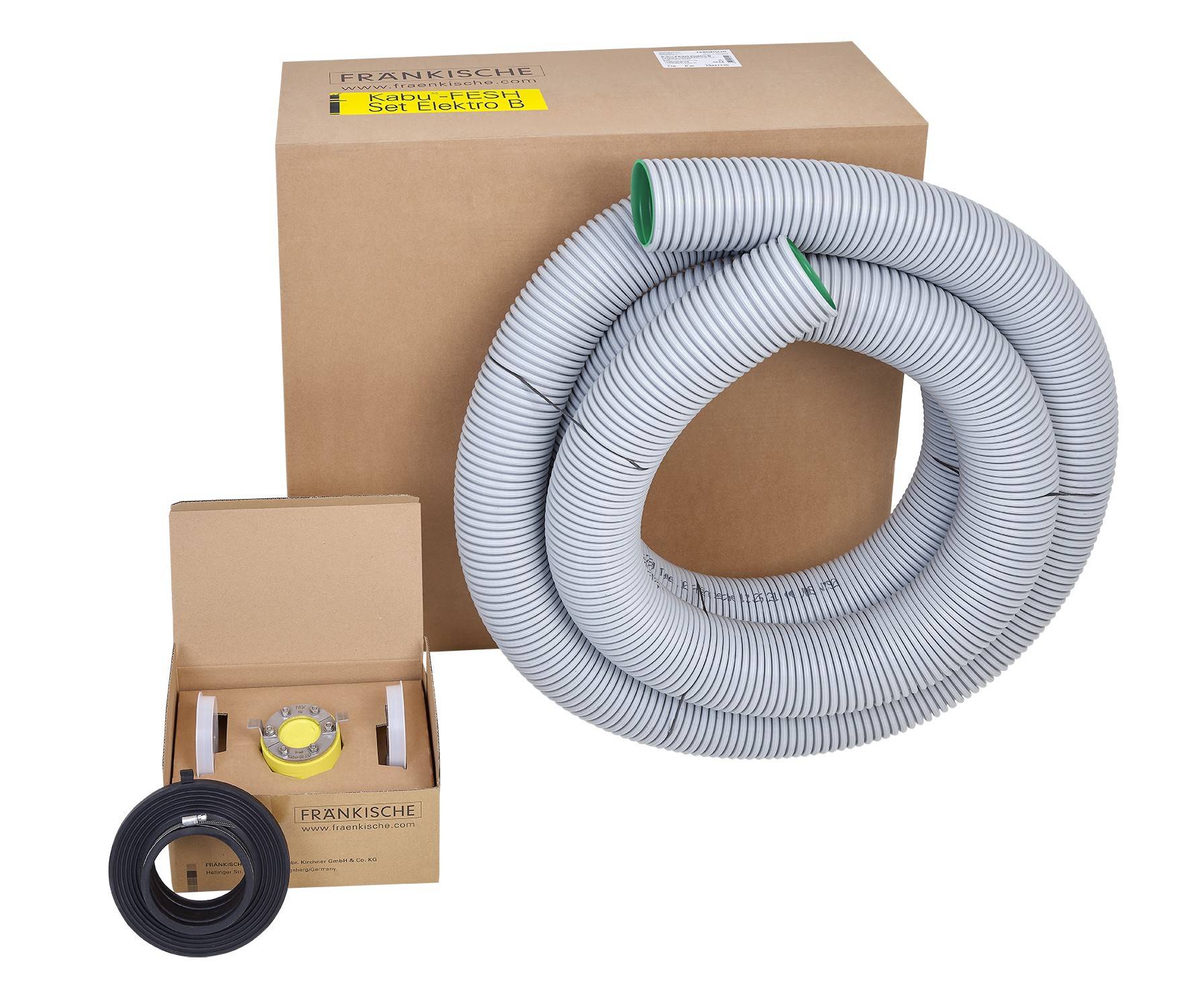

Kabu-FESH Set Electro B, the FRANCONIAN introduction system House for the Electric division is a savings house introduction set for buildings without cellar for installation in the floor panel. The set consists of a high-quality cable protection pipe Kabuflex R plus type 750, a wall sleeve set, a sand-proof end cap SD as well as the leak-proof inner seal Kabu-IN DD for a safe implementation of a current or telecommunication cable. This house introduction is used for concrete concreting in the base plate. The advantages of the system lie in the easy laying of the cable protection tube up to the house connection room, the simple cutting of the tube to the required height of the floor structure, as well as the individual adaptation to different cable diameters on site through segment ring technology of the Kabu-IN DD seal. Gas and pressurized water tightness: Type 75 to 1.5 bar and type 110 to 1 bar, tested according to DVGW VP 601
Application area: W1-E according to DIN 18533, WU-concrete of the stress class 1 and 2
The system is suitable for laying according to TAB 2019, VDE-AR-N 4100 and DIN 18012. CE-compliant and VDE approved protection tube according to DIN EN 61386-24 with classification N750. DIN EN 61386-24 Pressure stress type 750

This text is machine translated.
