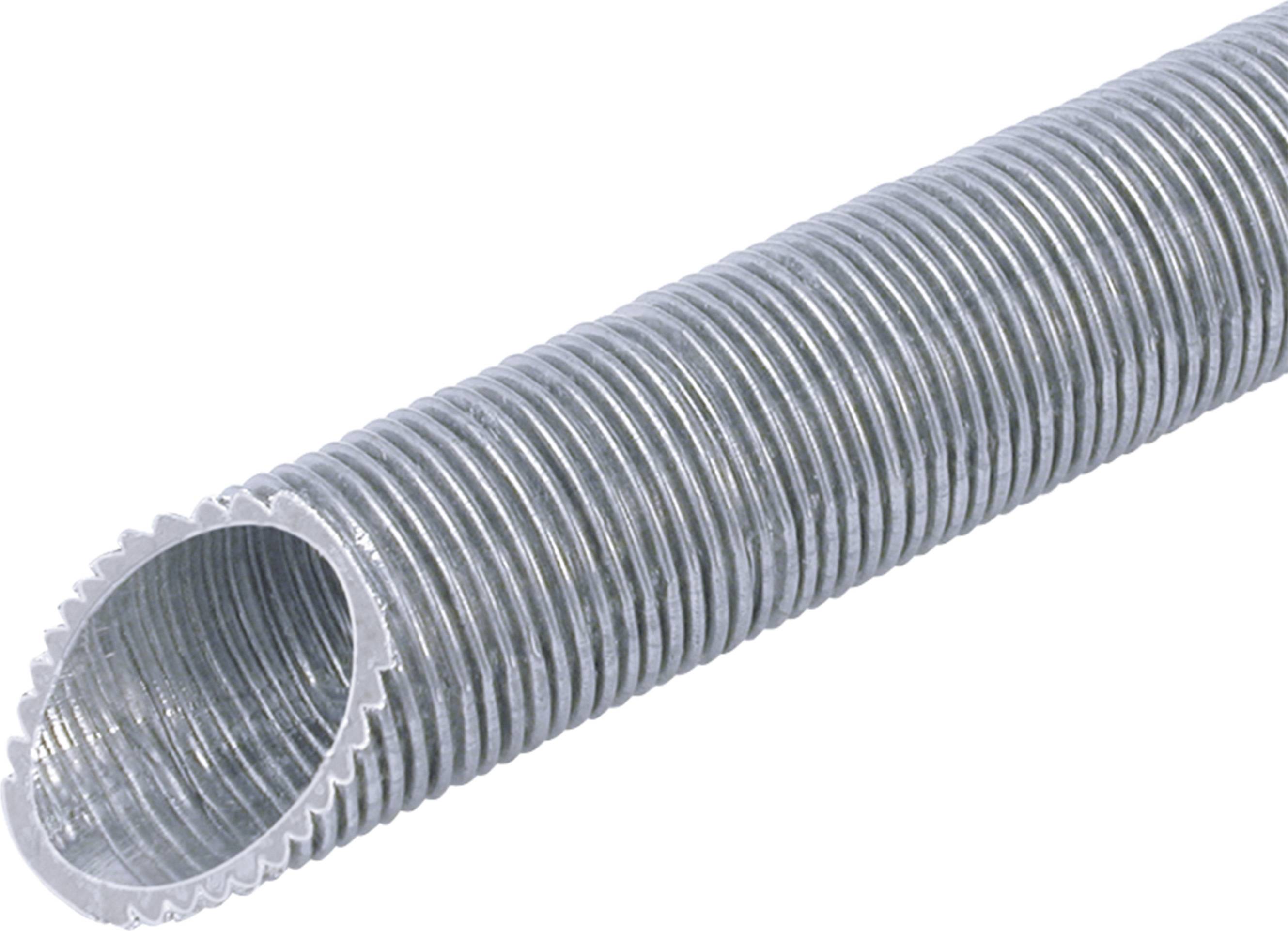

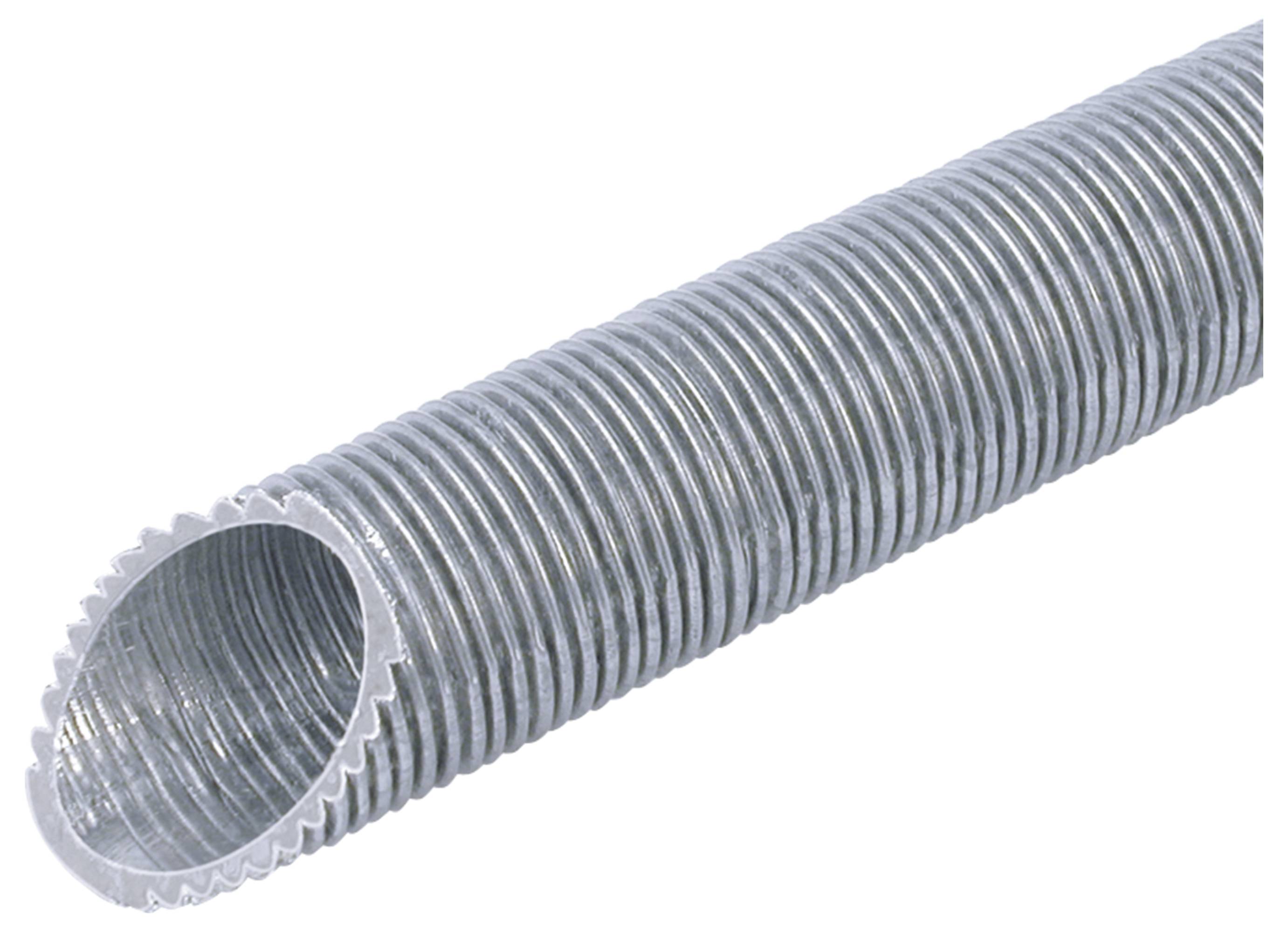

Fränkische Rohrwerke 20110025 Steel pipe Zinc 25 m
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Material: Steel
- Material quality: Steel (rolled strip steel)
- Surface protection: Galvanised/electrolytically
- Quality of the surface coating: Galvanized zinc coated
- Polished surface: No.
- Surface brushed: No.
- Design: Flexibly corrugated
- Connection 1: Inner thread (metric)
- Connection 2: Pipe end
- Colour zinc
- Flush mounting: Yes
- Surface mounting: Yes
- Machine and plant installation: Yes
- Suitable for concrete installation: Yes
- Suitable for underground installation (bitumen, hot asphalt): Yes
- Suitable for outside use: No.
- Suitable for underground installation (screed): Yes
- Suitable for installation on wood: Yes
- Suitable for hollow wall installation: Yes
- Suitable for laying in the ground: No.
- Pressure rating according to EN 61386-1: Heavy (class 4, 1250 N)
- Weight class according to EN 61386-1: Heavy (class 4 / 6 Joule)
- 20.2 mm internal diameter
- Outer diameter: 25 mm
- Operating temperature -45..250°C
- Product type
Steel pipe
- Outside Ø
25 mm
- Inside diameter
20.2 mm
- Content
25 m
- Material
Steel
- Factory colour
Zinc
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3795876 Fränkische Rohrwerke 20110025 Steel pipe Zinc 25 m
User & Safety Instructions
User & Safety Instructions 3795876 Fränkische Rohrwerke 20110025 Steel pipe Zinc 25 m
Description
FFS-ES is a heavy, flexible steel tube made of galvanized steel strip with a narrow groove and intermediate layer of special insulation, including one-sided sleeve (SM-E-V). This flexible steel tube is used for all surface and flush-mounting installations in the domestic or industrial construction and for laying in hot asphalt. The advantages are the high compressive strength and high thermal load. In addition, cable and lines can be securely shielded. Suitable for laying in the hot tarmac due to temperature resistance up to +250°C. VDE 0605 DIN EN 61386-22 Minimum pressure resistance 1250N / 5cm
