Fränkische Rohrwerke 20210020 Steel pipe EN20 3 m Black 3 m
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Material: Steel
- Material quality: Steel (flux steel rolled)
- Surface protection: Painted
- Quality of the surface coating: Other
- Polished surface: No.
- Surface brushed: No.
- Design: Rigid
- Connection 1: Inner thread (metric)
- Connection 2: Outer thread (metric)
- Colour, black
- Flush mounting: Yes
- Surface mounting: Yes
- Suitable for concrete installation: Yes
- Machinery and equipment installation: Yes
- Underground installation (bitumen, hot asphalt): Yes
- Underfloor installation (screed): Yes
- Outdoor installation: No.
- Installation on wood: Yes
- Suitable for hollow wall installation: Yes
- Suitable for laying in the ground: No.
- Compressive strength: Very heavy (class 5)
- Interior diameter 16.3 mm
- Outer diameter: 20 mm
- Operating temperature -45..250°C
- Product type
Steel pipe
- Size
EN20
- Outside Ø
20 mm
- Inside diameter
16.3 mm
- Length
3 m
- Content
3 m
- Material
Steel
- Compressive strength
4000 N
- Factory colour
Black
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3407238 Fränkische Rohrwerke 20210020 Steel pipe EN20 3 m Black 3 m
User & Safety Instructions
User & Safety Instructions 3407238 Fränkische Rohrwerke 20210020 Steel pipe EN20 3 m Black 3 m
Description

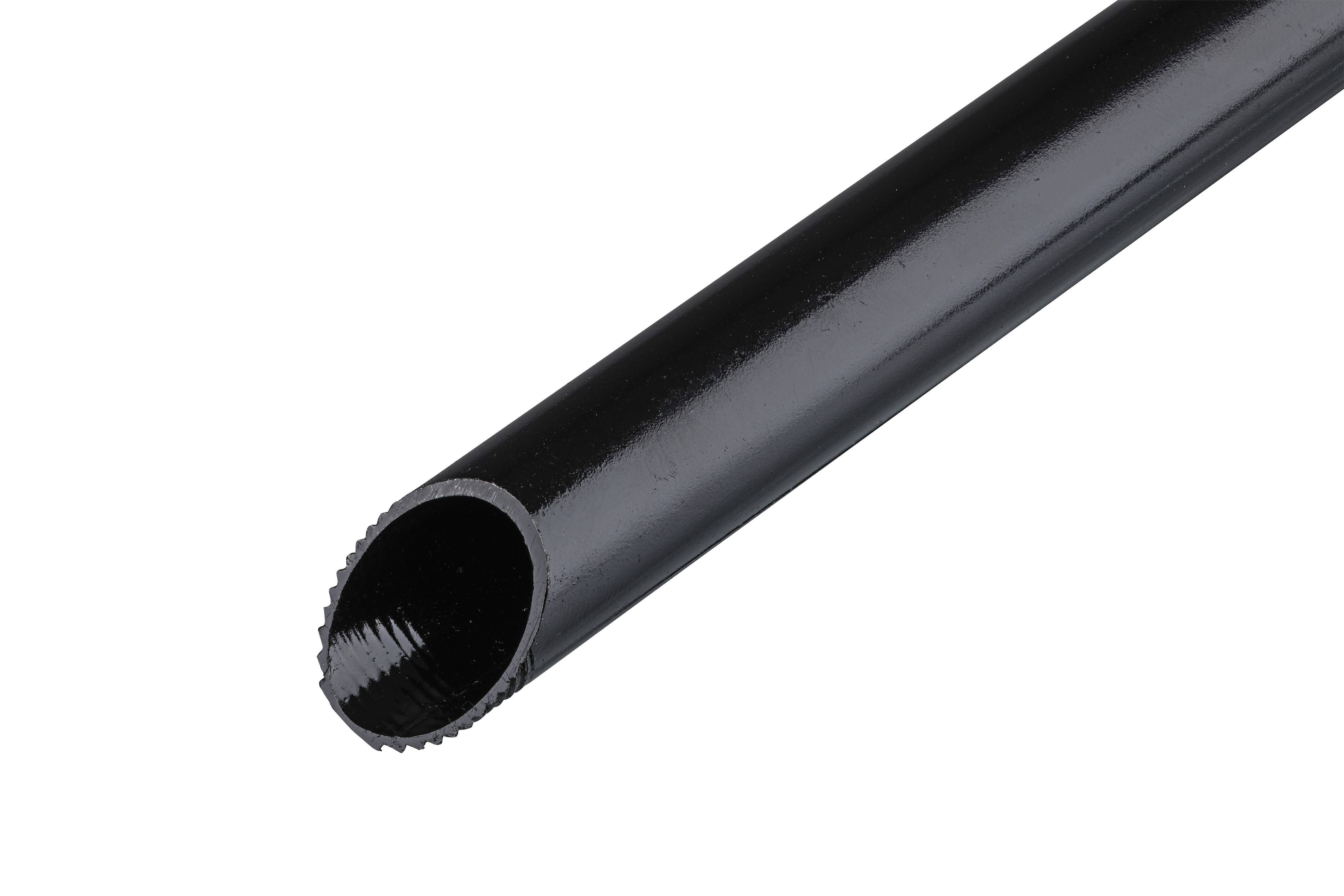

Staro thread-ES is a very heavy black painted steel tube made of rolled flux steel with a burn-in lacquer, in rods of 3 m, with a coloring similar to RAL9005 (deep black), on both sides with thread, and screwed-on sleeve (SM-E). This steel tube is used for extreme mechanical requirements and solid connections. The advantages are the very high compressive strength, temperature resistance and corrosion protection. This product is suitable for laying cables with functional retention (E30/ E60/ E90) and tested in the system. VDE 0605 DIN EN 61386-21 Classification: 55561 Minimum pressure resistance 400N/5cm
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x 3 m steel tube
