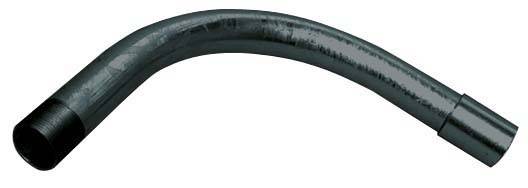

Fränkische Rohrwerke 20260032 Bend Black 1 pc(s) Halogen-free
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Bend
- Outside Ø
32 mm
- Inside diameter
32 mm
- Content
1 pc(s)
- Features
Halogen-free
- Material
Metal
- Compressive strength
4000 N
- Factory colour
Black
- (Ø)
32 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1957125 Fränkische Rohrwerke 20260032 Bend Black 1 pc(s) Halogen-free
User & Safety Instructions
User & Safety Instructions 1957125 Fränkische Rohrwerke 20260032 Bend Black 1 pc(s) Halogen-free
Description
SB-E is a steel pipe thread bow made of rolled river steel with enamel finish, in black color-painted, on both sides, Threaded, One-sided screwed-on sleeve (SM-E). This is used for the connection of the painted steel pipe thread sheet Staro thread-IT. The advantages lie in the very heavy pressure resistance and in the extreme Temperaturturbestandigkeit. VDE0605 DIN EN 61386-21 Classification: 55561 minimum compressive strength: 4000N/5cm
