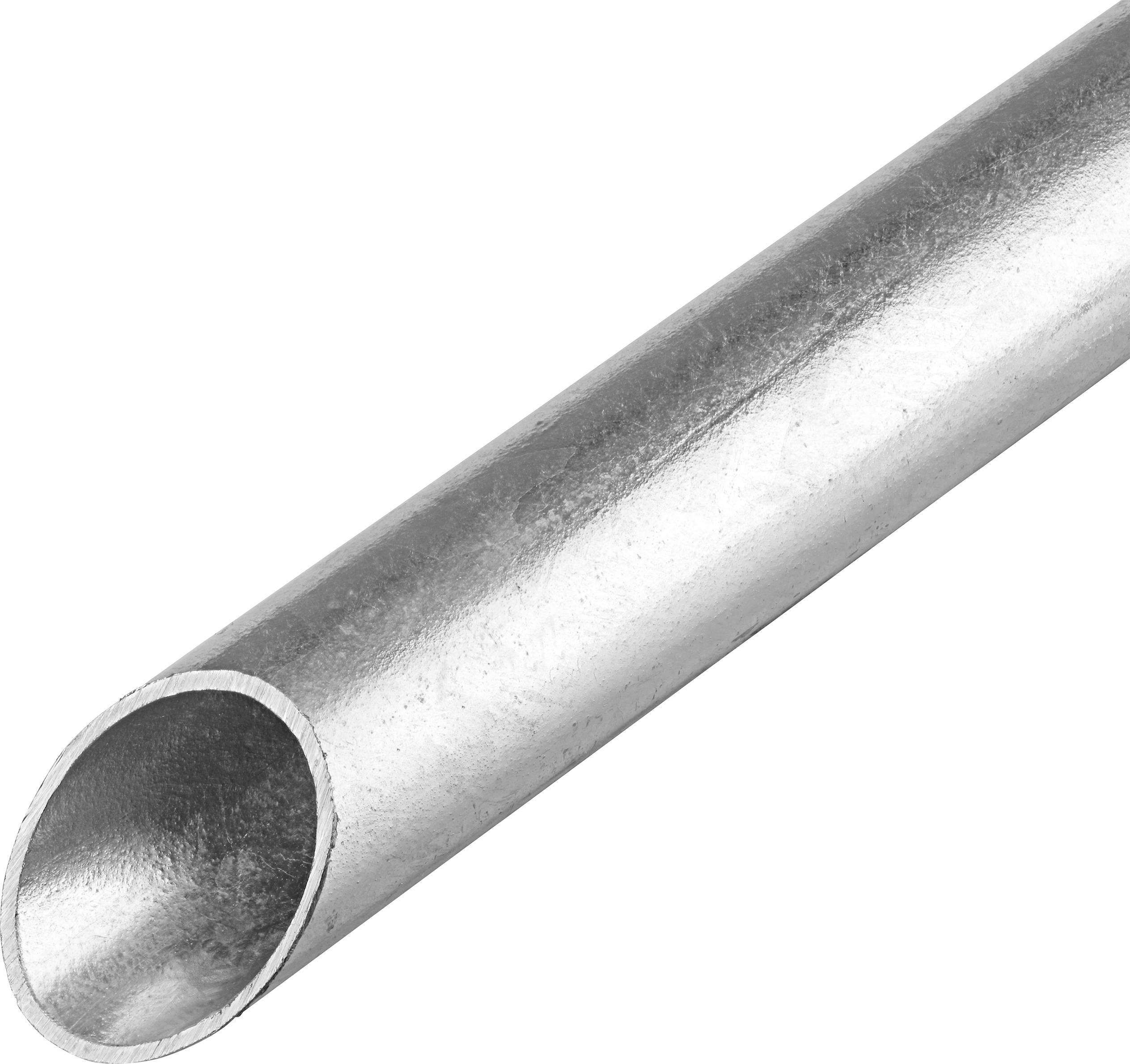

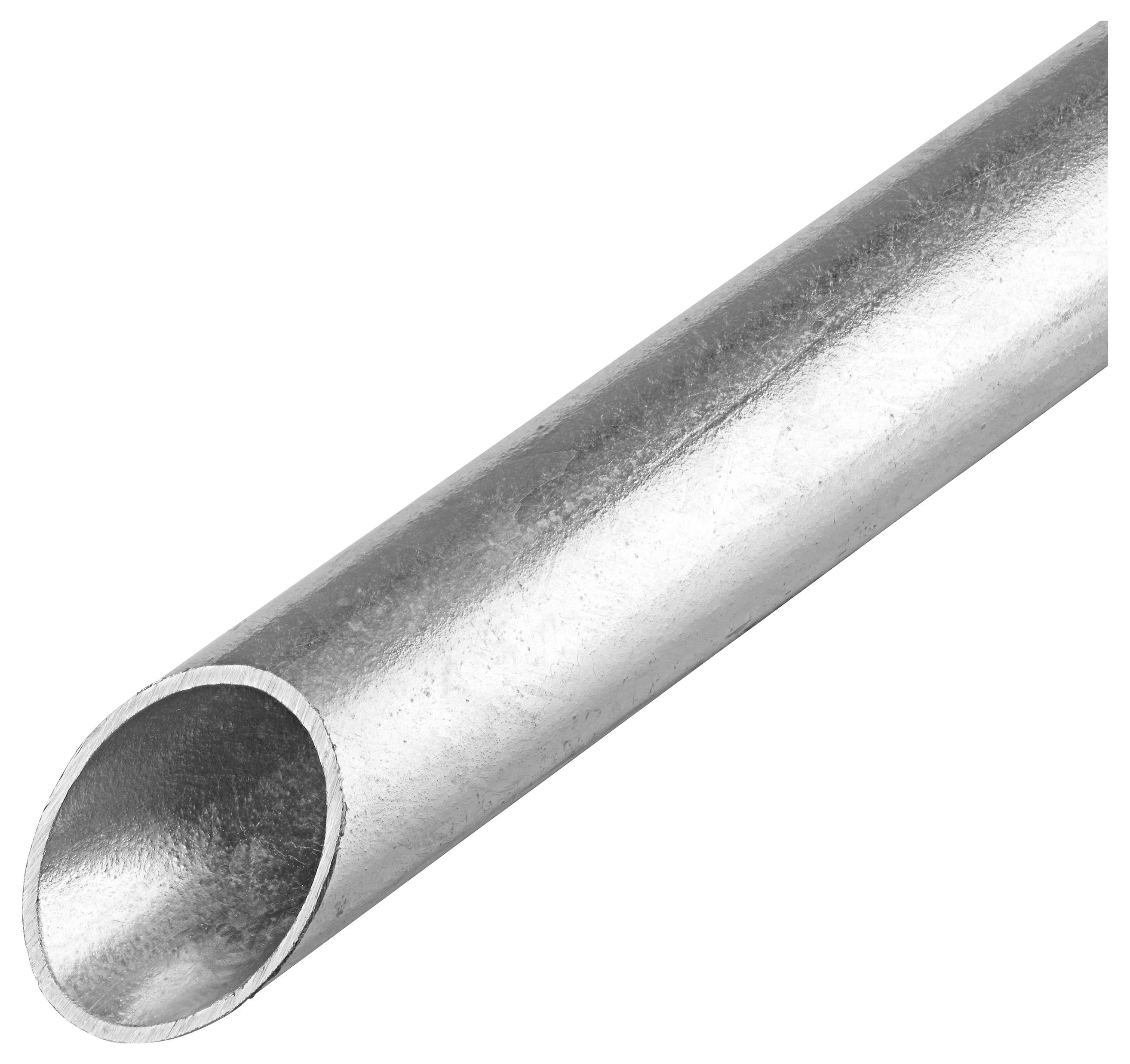

Fränkische Rohrwerke 20510025 Steel pipe Zinc 3 m
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Material: Steel
- Material quality: Steel (flux steel rolled)
- Surface protection: Hot-dip galvanized
- Quality of the surface coating: Other
- Polished surface: No.
- Surface brushed: No.
- Design: Rigid
- Connection 1: Pipe end
- Connection 2: Pipe end
- Colour zinc
- Flush mounting: Yes
- Surface mounting: Yes
- Machine and plant installation: Yes
- Suitable for concrete installation: Yes
- Suitable for underground installation (bitumen, hot asphalt): Yes
- Suitable for outside use: Yes
- Suitable for underground installation (screed): Yes
- Suitable for installation on wood: Yes
- Suitable for hollow wall installation: Yes
- Suitable for laying in the ground: No.
- Pressure rating according to EN 61386-1: Heavy (class 4, 1250 N)
- Weight class according to EN 61386-1: Heavy (class 4 / 6 Joule)
- 22.1 mm internal diameter
- Outer diameter: 25 mm
- Operating temperature -45..400°C
- Product type
Steel pipe
- Outside Ø
25 mm
- Inside diameter
22.1 mm
- Content
3 m
- Material
Steel
- Factory colour
Zinc
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3795875 Fränkische Rohrwerke 20510025 Steel pipe Zinc 3 m
User & Safety Instructions
User & Safety Instructions 3795875 Fränkische Rohrwerke 20510025 Steel pipe Zinc 3 m
Information
Information 3795875 Fränkische Rohrwerke 20510025 Steel pipe Zinc 3 m
Description
Staro Steck-ES-V is a heavy zinc-coated steel tube made of rolled flux steel with zinc coating in accordance with EN ISO 1461, in bars to 3M. This steel tube is used for high mechanical requirements and outdoor installations. The advantages are the high compressive strength, temperature resistance and corrosion protection. This product is suitable for laying cables with functional retention (E30/ E60/ E90) and tested in the system. VDE 0605 DIN EN 61386-21 Classification: 44571 Minimum pressure resistance 1250N/5cm
