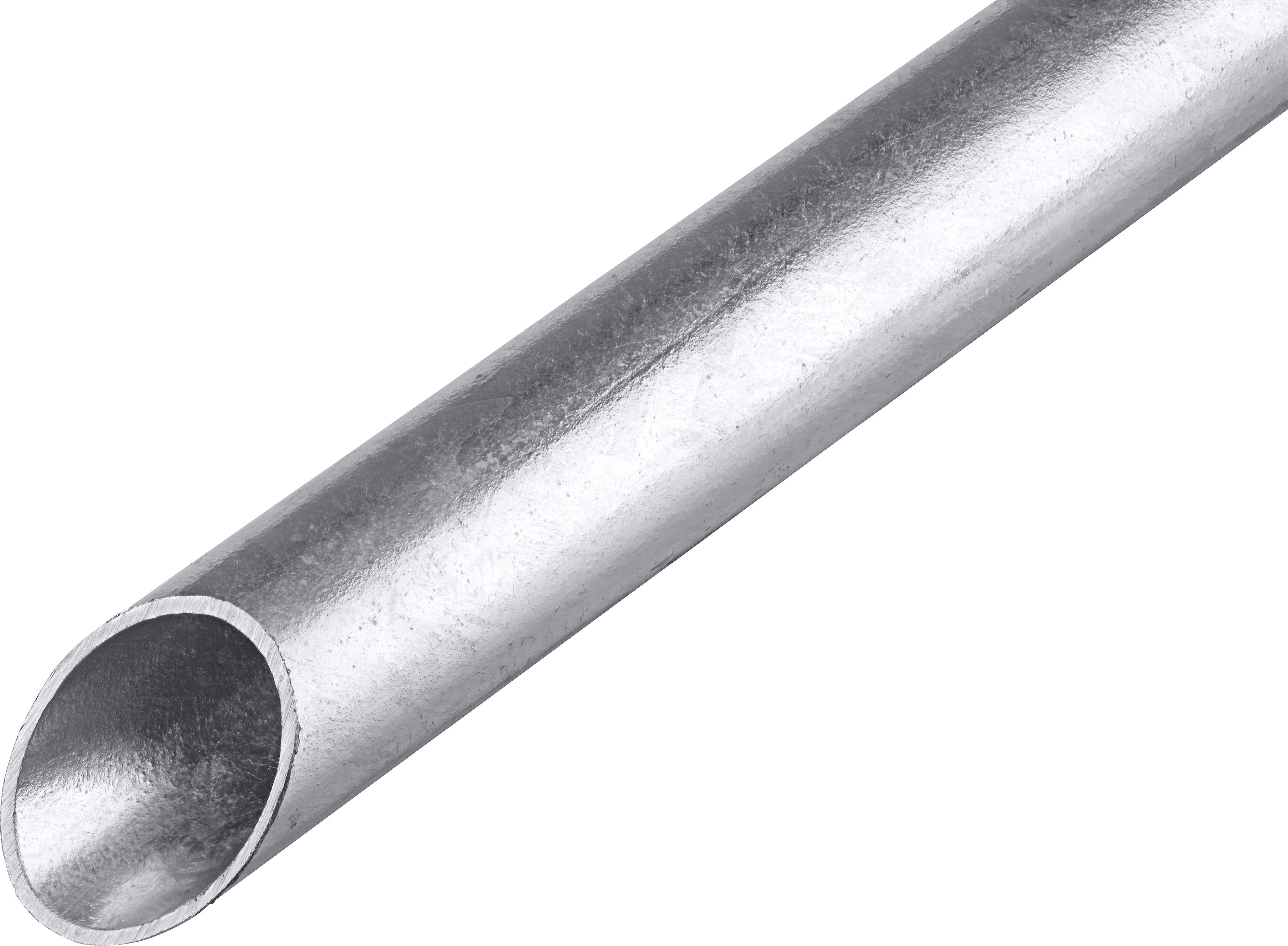

Fränkische Rohrwerke 20510040 Steel pipe 3 m Zinc 3 m
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Material: Steel
- Material quality: Steel (flux steel rolled)
- Surface protection: Hot-dip galvanized
- Quality of the surface coating: Other
- Polished surface: No.
- Surface brushed: No.
- Design: Rigid
- Connection 1: Pipe end
- Connection 2: Pipe end
- Colour zinc
- Flush mounting: Yes
- Surface mounting: Yes
- Suitable for concrete installation: No.
- Machinery and equipment installation: Yes
- Underground installation (bitumen, hot asphalt): Yes
- Underfloor installation (screed): Yes
- Outdoor installation: Yes
- Installation on wood: Yes
- Suitable for hollow wall installation: Yes
- Suitable for laying in the ground: No.
- Compressive strength: Heavy (class 4)
- Interior diameter 37 mm
- Outer diameter: 40 mm
- Operating temperature -45..400°C
- Product type
Steel pipe
- Outside Ø
40 mm
- Inside diameter
37 mm
- Length
3 m
- Content
3 m
- Material
Steel
- Factory colour
Zinc
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3407308 Fränkische Rohrwerke 20510040 Steel pipe 3 m Zinc 3 m
User & Safety Instructions
User & Safety Instructions 3407308 Fränkische Rohrwerke 20510040 Steel pipe 3 m Zinc 3 m
Description
Staro Steck-ES-V is a heavy zinc-coated steel tube made of rolled flux steel with zinc coating in accordance with EN ISO 1461, in bars to 3M. This steel tube is used for high mechanical requirements and outdoor installations. The advantages are the high compressive strength, temperature resistance and corrosion protection. This product is suitable for laying cables with functional retention (E30/ E60/ E90) and tested in the system. VDE 0605 DIN EN 61386-21 Classification: 44571 Minimum pressure resistance 1250N/5cm
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x 3 m steel tube
