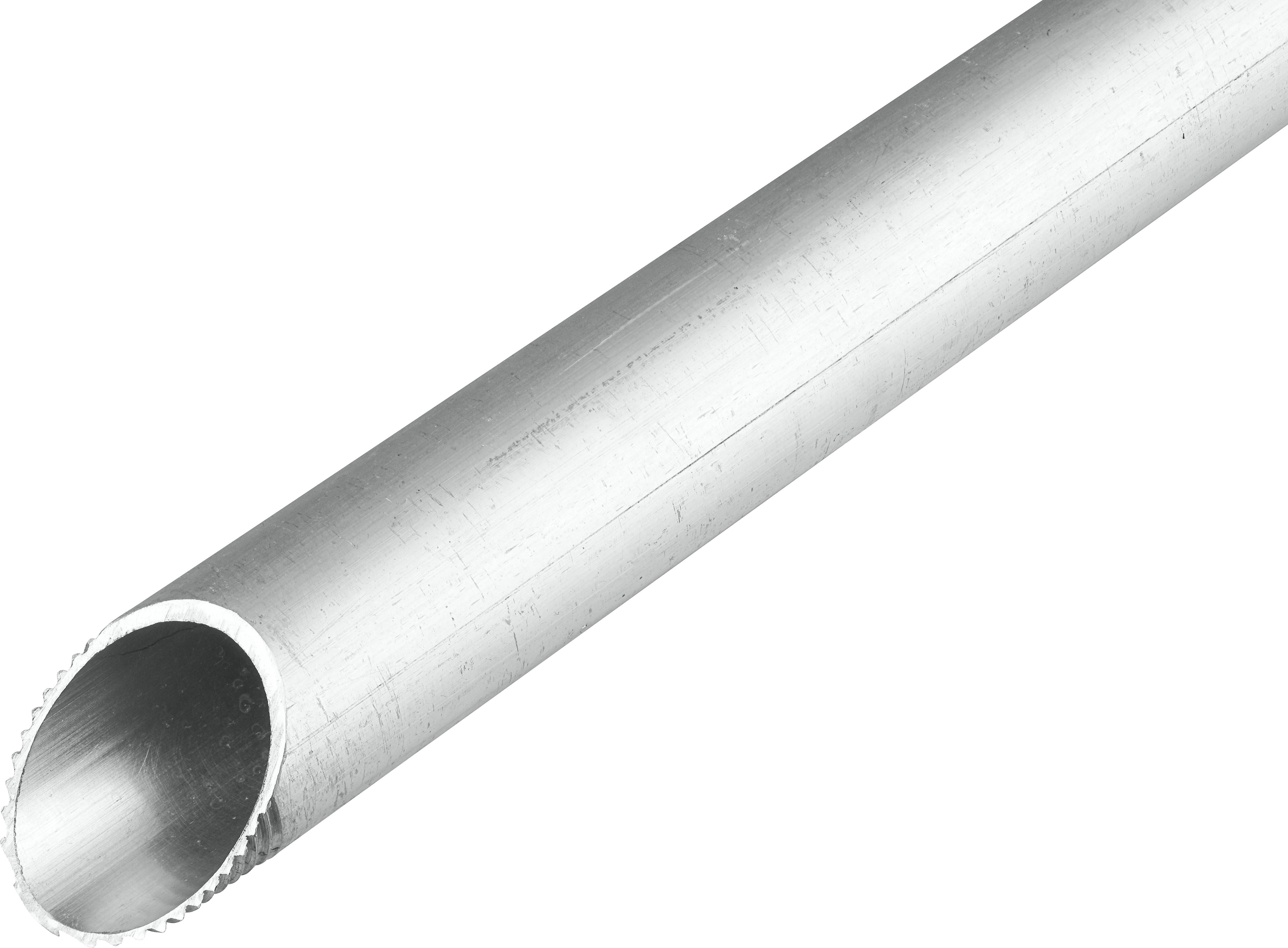

Fränkische Rohrwerke 21010050 Pipe 3 m 3 m
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Material: Aluminium
- Material quality: Other
- Surface protection: Untreated
- Quality of the surface coating: Uncoated
- Polished surface: No.
- Surface brushed: No.
- Design: Rigid
- Connection 1: Inner thread (metric)
- Connection 2: Outer thread (metric)
- Flush mounting: Yes
- Surface mounting: Yes
- Suitable for concrete installation: No.
- Machinery and equipment installation: Yes
- Underground installation (bitumen, hot asphalt): Yes
- Underfloor installation (screed): No.
- Outdoor installation: Yes
- Installation on wood: Yes
- Suitable for hollow wall installation: Yes
- Suitable for laying in the ground: No.
- Compressive strength: Very heavy (class 5)
- Interior diameter 46.2 mm
- External diameter: 50 mm
- Operating temperature -45..250°C
- Product type
Pipe
- Outside Ø
50 mm
- Inside diameter
46.2 mm
- Length
3 m
- Content
3 m
- Material
Aluminium
- Compressive strength
4000 N
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3407346 Fränkische Rohrwerke 21010050 Pipe 3 m 3 m
User & Safety Instructions
User & Safety Instructions 3407346 Fränkische Rohrwerke 21010050 Pipe 3 m 3 m
Description
Aluminum thread-IT is a very heavy, extruded aluminum threaded pipe, in bars to 3M, on both sides with thread, screwed on one side sleeve (AMG-E). This aluminum pipe is used with Hohem mechanical requirements and with outdoor installation. The advantages are the very high compressive strength and the low weight. VDE 0605 DIN EN 61386-21Minimum pressure 400N/5cm
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x 3 m tube
