Fränkische Rohrwerke 22110025 Pipe EN25 3 m Grey 3 m
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Material: Polyvinyl chloride (PVC)
- Halogen-free: No.
- Flame-resistant version: Yes
- Bending behavior: Rigid
- With sleeve: Yes
- Compressive strength: Light (class 2)
- Impact resistance: Light (class 2)
- Flush mounting: Yes
- Surface mounting: Yes
- Suitable for installation on wood: Yes
- Suitable for hollow wall installation: Yes
- Suitable for concrete installation: No.
- Machines and system installation: No.
- Underfloor installation (screed): Yes
- Outdoor installation: No.
- Suitable for laying in the ground: No.
- 22.6 mm internal diameter
- Outer diameter: 25 mm
- Operating temperature 5 °C .60 °C
- High-gloss smooth inner layer: No.
- Colour: grey
- RAL number: 7035
- Product type
Pipe
- Size
EN25
- Outside Ø
25 mm
- Inside diameter
22.6 mm
- Length
3 m
- Content
3 m
- Material
Polyvinyl chloride
- Factory colour
Grey
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3407235 Fränkische Rohrwerke 22110025 Pipe EN25 3 m Grey 3 m
User & Safety Instructions
User & Safety Instructions 3407235 Fränkische Rohrwerke 22110025 Pipe EN25 3 m Grey 3 m
Description

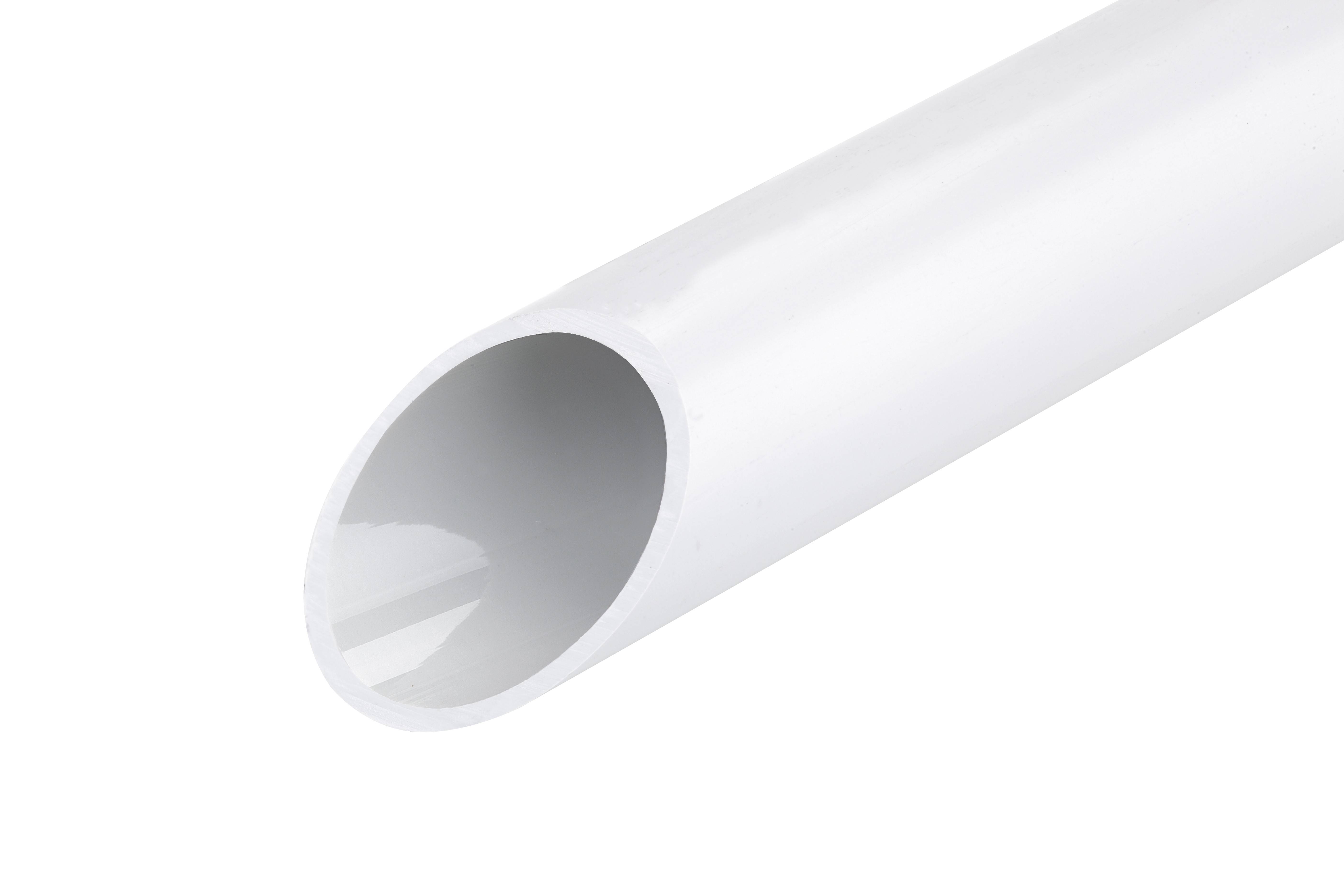

ISOFIX-EL-F is a light plastic tube made of PVC, gray (RAL7035), non-flame spreading, in bars to 3M, with sleeve molded on one side. This plastic rod pipe is used for surface installation, for slight pressure requirements and mechanical strength.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x 3 m tube
