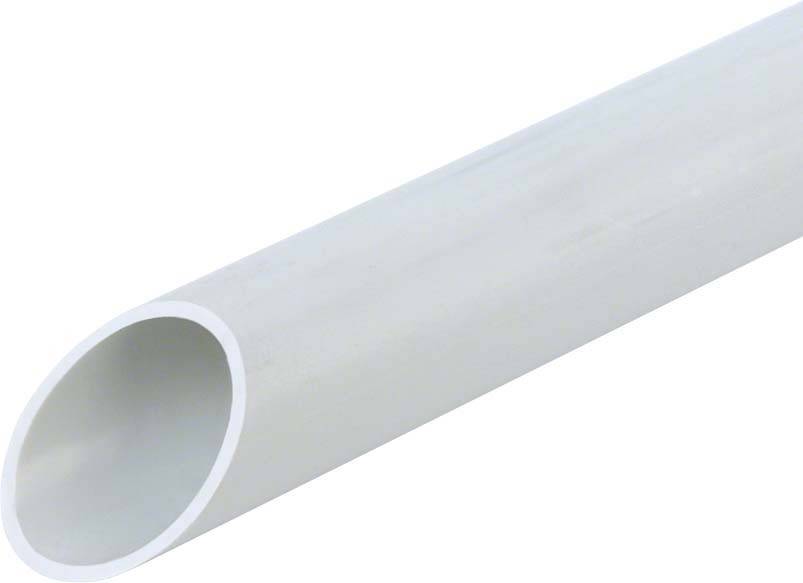

Fränkische Rohrwerke 22210016 Pipe EN16 3 m Grey 3 m
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Material: Polyvinyl chloride (PVC)
- Halogen-free: No.
- Flame-resistant version: Yes
- Bending behavior: Rigid
- With sleeve: Yes
- Compressive strength: Medium (class 3)
- Impact resistance: Medium (class 3)
- Flush mounting: Yes
- Surface mounting: Yes
- Suitable for installation on wood: Yes
- Suitable for hollow wall installation: Yes
- Suitable for concrete installation: Yes
- Machinery and equipment installation: Yes
- Underfloor installation (screed): Yes
- Outdoor installation: No.
- Suitable for laying in the ground: No.
- Interior diameter 13.4 mm
- Outer diameter: 16 mm
- Operating temperature 25 °C .60 °C
- High-gloss smooth inner layer: No.
- Colour: grey
- RAL number: 7035
- Product type
Pipe
- Size
EN16
- Outside Ø
16 mm
- Inside diameter
13.4 mm
- Length
3 m
- Content
3 m
- Material
Polyvinyl chloride
- Compressive strength
750 N
- Factory colour
Grey
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3407191 Fränkische Rohrwerke 22210016 Pipe EN16 3 m Grey 3 m
User & Safety Instructions
User & Safety Instructions 3407191 Fränkische Rohrwerke 22210016 Pipe EN16 3 m Grey 3 m
Description
FPKu-EM-F is a medium plastic tube made of PVC, gray (RAL 7035), non-flame retardant, in rods to 3M, with sleeve shaped on one side. This plastic tube pole is used for all standard surface applications, especially for surface mounting in industrial and plant engineering. The advantages are the medium pressure and high impact strength. Due to its high corrosion resistance, the tube is also resistant to aggressive materials. VDE 0605 DIN EN 61386-21 Minimum pressure resistance 750N / 5cm
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x 3 m tube
