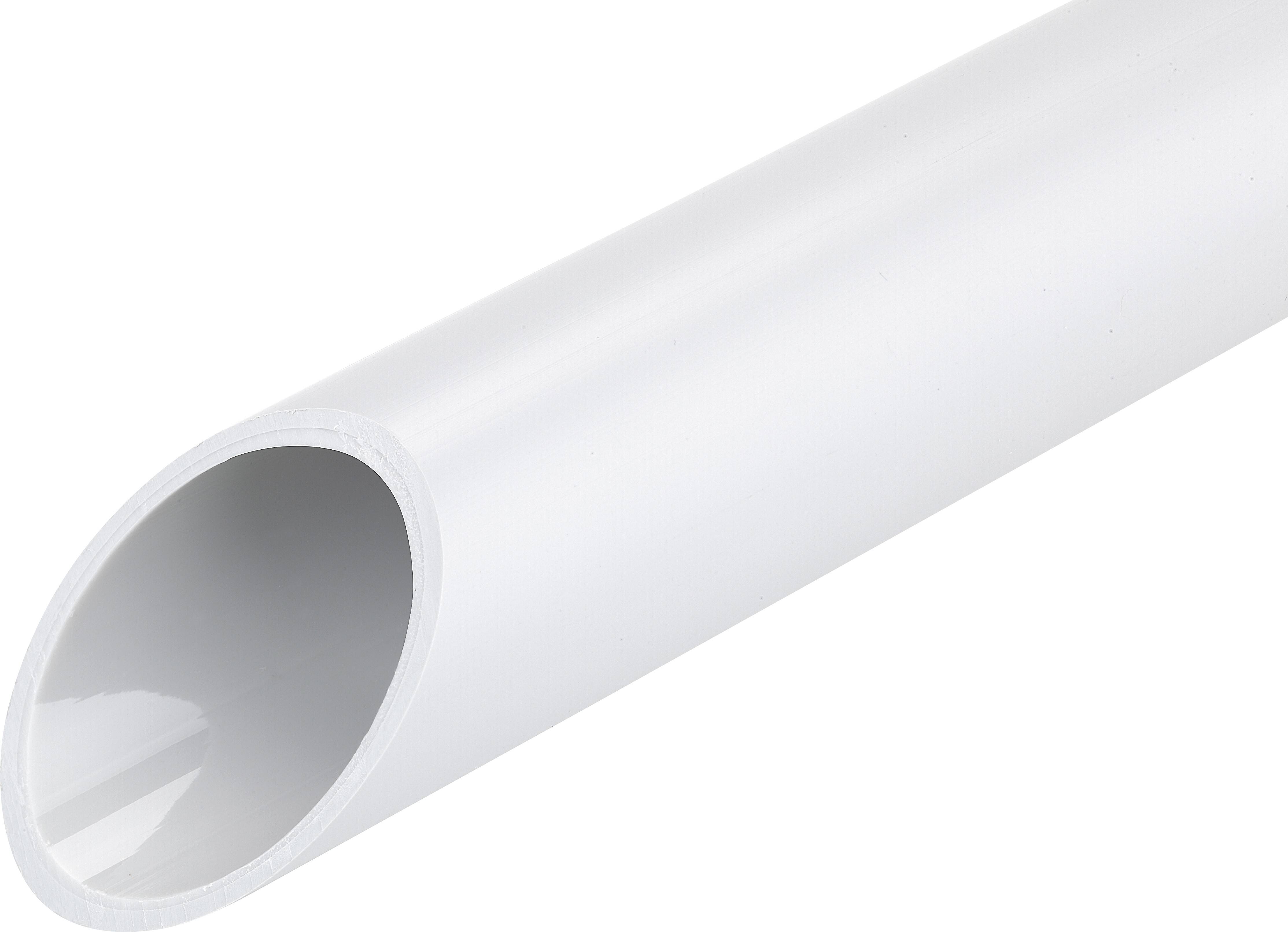

Fränkische Rohrwerke 23210063 Pipe EN63 3 m Grey 3 m Halogen-free
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Material: Other
- Halogen-free: Yes
- Flame-resistant version: Yes
- Bending behavior: Rigid
- With sleeve: Yes
- Compressive strength: Medium (class 3)
- Impact resistance: Medium (class 3)
- Flush mounting: Yes
- Surface mounting: Yes
- Suitable for installation on wood: Yes
- Suitable for hollow wall installation: Yes
- Suitable for concrete installation: Yes
- Machinery and equipment installation: Yes
- Underfloor installation (screed): Yes
- Outdoor installation: No.
- Suitable for laying in the ground: No.
- Interior diameter 57.8 mm
- Outer diameter: 63 mm
- Operating temperature 45 °C .90 °C
- High-gloss smooth inner layer: No.
- Colour: grey
- RAL number: 7035
- Product type
Pipe
- Size
EN63
- Outside Ø
63 mm
- Inside diameter
57.8 mm
- Length
3 m
- Content
3 m
- Features
Halogen-free
- Material
Plastic
- Factory colour
Grey
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3407349 Fränkische Rohrwerke 23210063 Pipe EN63 3 m Grey 3 m Halogen-free
User & Safety Instructions
User & Safety Instructions 3407349 Fränkische Rohrwerke 23210063 Pipe EN63 3 m Grey 3 m Halogen-free
Description
FPKu-EM-F-H0 is a medium plastic bar tube made of special plastic, in gray (RAL 7035), not flame retardant, in rods to 3M, with sleeve molded on one side. This plastic tube pole is used for surface mounting in industrial and plant construction as well as for all standard surface-mounting applications. The advantage lies in the freedom of halogen, since it does not produce any dangerous toxic and corrosive gases. This product is suitable for laying cables with functional retention (E30/ E60/ E90) and tested in the system. VDE 0605 DIN EN 61386-22 100% halogen-free according to DIN VDE V 0604-2-100 Minimum pressure resistance 750N / 5cm
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x 3 m tube
