Fränkische Rohrwerke 25010050 FFKu-EL-F 50 bg Conduit Beige 40.3 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Conduit
Content
1 pc(s)
Material
PVC
Inside diameter
40.3 mm
Outside Ø
50 mm
Datasheet (PDF)
Technical specifications
- Material = polyvinyl chloride (PVC)
- Halogen-free = No
- Flame-resistant design = Yes
- Bending behavior = bendable
- With sleeve = No
- Compressive strength class = light (class 2)
- Impact strength = light (class 2)
- Flush-mounted = Yes
- Surface-mounted = Yes
- On Wood = Yes
- Hollow wall = Yes
- Suitable for concrete installation = No
- Machines and equipment installation = No
- Concealed installation (screed) = No
- Installation in the open = No
- Laying in soil = No
- Inner diameter = 40.3 mm
- Outer diameter = 50 mm
- Operating temperature =-5.:00-15 °C
- Extra slippery inner coating = No
- Color = beige
- RAL-number = 1013
- Product type
Conduit
- Content
1 pc(s)
- Factory colour
Beige
- Material
PVC
- Inside diameter
40.3 mm
- Outside Ø
50 mm
- Max. temperature
+60 °C
- Min. temperature
-5 °C
- Length
25 m
- Manufacturer part #
25010050
- Type
FFKu-EL-F 50 bg
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1957129 Fränkische Rohrwerke 25010050 FFKu-EL-F 50 bg Conduit Beige 40.3 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1957129 Fränkische Rohrwerke 25010050 FFKu-EL-F 50 bg Conduit Beige 40.3 mm 1 pc(s)
Description

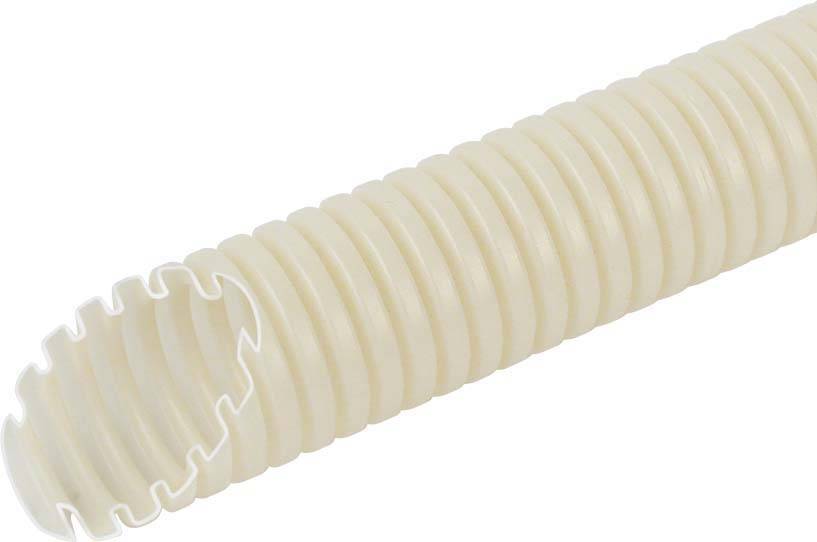

FFKu-EL-F is a lightweight plastic corrugated pipe made of PVC-U, not flame laying out in color beige. Used this plastic corrugated pipe for simple flush-mounting and hollow wall installations. This light electrical installation pipe must not be laid in concrete. VDE0605 DIN EN 61386-22 minimum compressive strength: 320 N/5 cm
