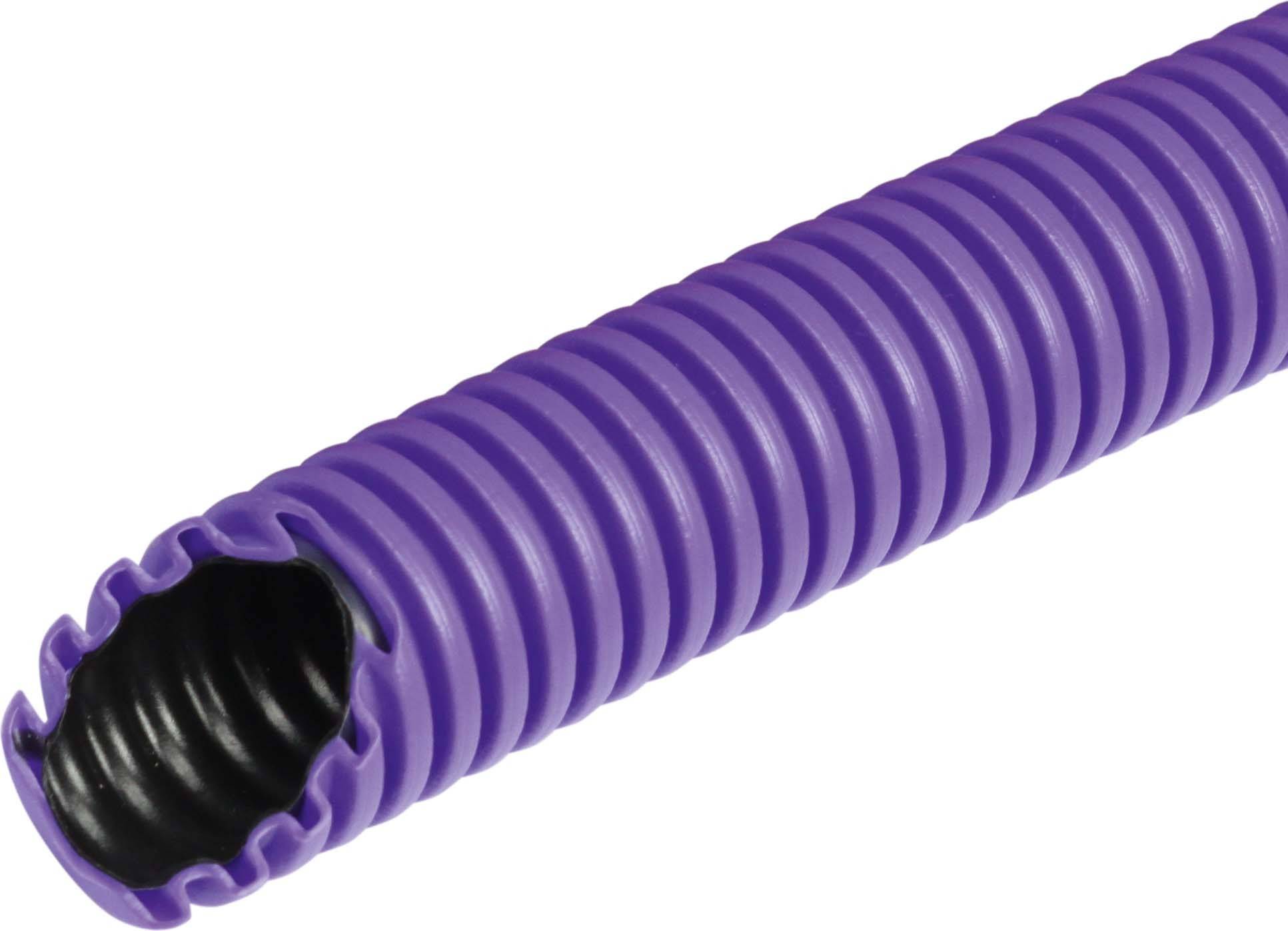

Fränkische Rohrwerke 25230025 FFKu-Smart net 25 Conduit Violet 17 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Conduit
Content
1 pc(s)
Material
Polyolefin
Inside diameter
17 mm
Outside Ø
25 mm
Datasheet (PDF)
Technical specifications
- Material = Polyolefins
- Halogen-free = No
- Flame-resistant design = Yes
- Bending behavior = bendable
- With sleeve = No
- Compressive strength class = medium (class 3)
- Impact strength = medium (class 3)
- Flush-mounted = Yes
- Surface-mounted = Yes
- On Wood = Yes
- Hollow wall = Yes
- Suitable for concrete installation = Yes
- Machines and equipment installation = Yes
- Concealed installation (screed)=yes
- Installation in the open = No
- Laying in soil = Yes
- Inner diameter = 17 mm
- Outer diameter = 25 mm
- Operating temperature = .90 °C-45.
- Extra slippery inner coating = Yes
- Color = purple (purple)
- RAL-number = 4005
- Product type
Conduit
- Content
1 pc(s)
- Factory colour
Violet
- Material
Polyolefin
- Inside diameter
17 mm
- Outside Ø
25 mm
- Max. temperature
+90 °C
- Min. temperature
-45 °C
- Length
50 m
- Manufacturer part #
25230025
- Type
FFKu-Smart net 25
Documents & Downloads
Datasheet
Datasheet 1965199 Fränkische Rohrwerke 25230025 FFKu-Smart net 25 Conduit Violet 17 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1965199 Fränkische Rohrwerke 25230025 FFKu-Smart net 25 Conduit Violet 17 mm 1 pc(s)
Description
Ku-Smart net is a medium-sized plastic corrugated pipe from FF polyolefin, double-walled, edges, high sliding capability, in color blue-purple (RAL 4005), not flame laying out. This data is used tube feeding or inserting data lines for Smart Metering and smart grid, which from the meter box to the electrical distribution panels and the display or calibrated. The advantage lies in the middle pressure resistance, whereby the data pipe both in concrete, in the hollow wall as well as under plaster can be used. Due to the special double-walled, high-floating-enabled and impact edges free structure of the data tube tight radii are avoided and thus improve the feeding behavior. Especially for recruiting and insertion of cables. VDE0605 DIN EN 61386-22 DIN 18015-1 minimum compressive strength: 750 N/5 cm
This text is machine translated.
This text is machine translated.
