Fränkische Rohrwerke 25310063 FFKuS-EM-F 63 gr Conduit Grey 50.5 mm 1 pc(s)
Product type
Conduit
Content
1 pc(s)
Material
PVC
Inside diameter
50.5 mm
Outside Ø
63 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Material = polyvinyl chloride (PVC)
- Halogen-free = No
- Flame-resistant design = Yes
- Bending behavior = bendable
- With sleeve = No
- Compressive strength class = medium (class 3)
- Impact strength = medium (class 3)
- Flush-mounted = Yes
- Surface-mounted = Yes
- On Wood = Yes
- Hollow wall = Yes
- Suitable for concrete installation = Yes
- Machines and equipment installation = Yes
- Concealed installation (screed)=yes
- Installation in the open = No
- Laying in soil = Yes
- Inner diameter = 50.5 mm
- Outer diameter = 63 mm
- Operating temperature =-25:00-15 °C
- Extra slippery inner coating = Yes
- Color = gray
- RAL-number = 7035
- Product type
Conduit
- Content
1 pc(s)
- Factory colour
Grey
- Material
PVC
- Inside diameter
50.5 mm
- Outside Ø
63 mm
- Max. temperature
+60 °C
- Min. temperature
-25 °C
- Length
25 m
- Manufacturer part #
25310063
- Type
FFKuS-EM-F 63 gr
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1955750 Fränkische Rohrwerke 25310063 FFKuS-EM-F 63 gr Conduit Grey 50.5 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1955750 Fränkische Rohrwerke 25310063 FFKuS-EM-F 63 gr Conduit Grey 50.5 mm 1 pc(s)
Description

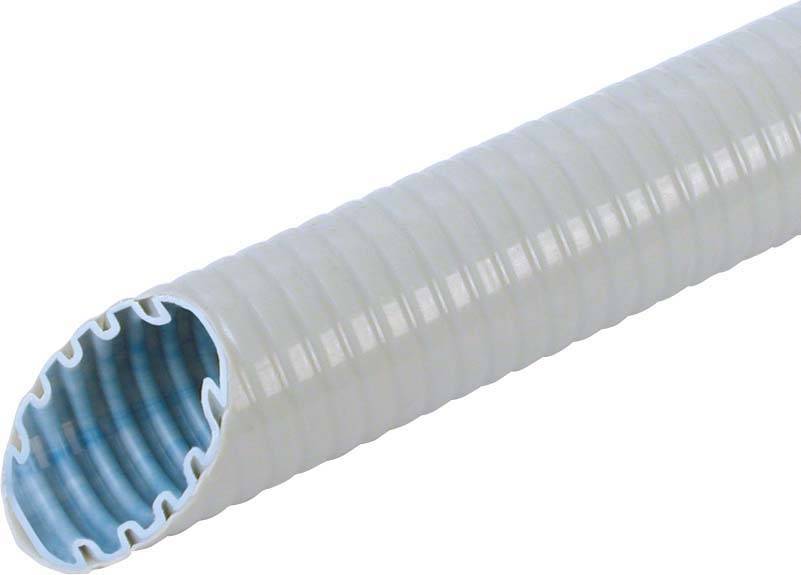

FFKuS-EM-F high-speed is a medium-sized plastic corrugated pipe made of PVC, with high sliding capable inner layer, plastic sheath, not flame laying out in color gray. Used this plastic corrugated pipes for the concrete and cavity wall installation, as well as at low temperatures in soil. The advantage lies in the high sliding enabled inner layer. With this cables and wires can be pulled in without problems over long distances. VDE0605 DIN EN 61386-22 minimum compressive strength: 750 N/5 cm
