Fränkische Rohrwerke 25410020 FFKuS-ES-F-UV20 sw Conduit Black 13.7 mm 1 pc(s)
Product type
Conduit
Content
1 pc(s)
Material
PVC
Inside diameter
13.7 mm
Outside Ø
20 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Material = PVC, UV-stabilised
- Halogen-free = No
- Flame-resistant design = Yes
- Bending behavior = bendable
- With sleeve = No
- Compressive strength class = heavy (class 4)
- Impact strength = medium (class 3)
- Flush-mounted = Yes
- Surface-mounted = Yes
- On Wood = Yes
- Hollow wall = Yes
- Suitable for concrete installation = Yes
- Machines and equipment installation = Yes
- Concealed installation (screed)=yes
- Installation in the open = Yes
- Laying in soil = Yes
- Inner diameter = 13.7 mm
- Outer diameter = 20 mm
- Operating temperature =-25:00-15 °C
- Extra slippery inner coating = Yes
- Color = black
- RAL-number = 9005
- Product type
Conduit
- Content
1 pc(s)
- Factory colour
Black
- Material
PVC
- Inside diameter
13.7 mm
- Outside Ø
20 mm
- Max. temperature
+60 °C
- Min. temperature
-25 °C
- Length
50 m
- Manufacturer part #
25410020
- Type
FFKuS-ES-F-UV20 sw
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1961152 Fränkische Rohrwerke 25410020 FFKuS-ES-F-UV20 sw Conduit Black 13.7 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1961152 Fränkische Rohrwerke 25410020 FFKuS-ES-F-UV20 sw Conduit Black 13.7 mm 1 pc(s)
Description

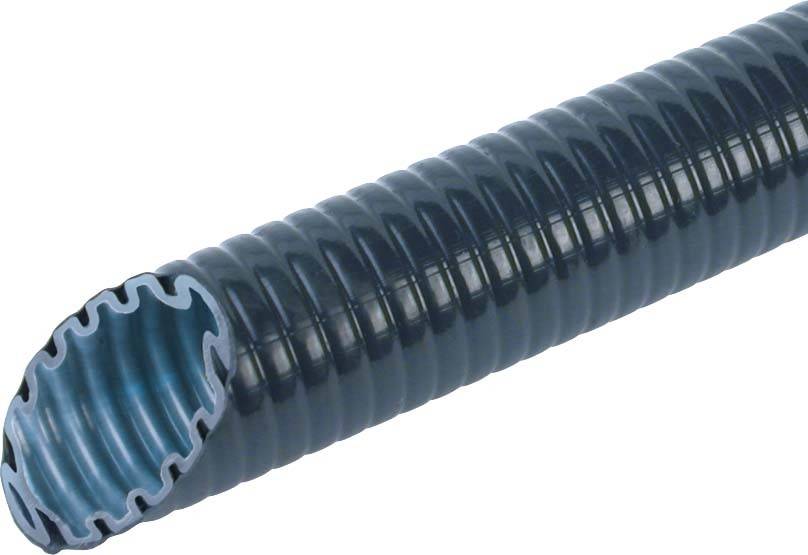

FFKuS-IT-F-UV high-speed is a heavy plastic corrugated pipe from modified PVC, with high sliding capable inner coating, plastic sheath, in black color, not flame laying out. Used this plastic corrugated pipe for the installation in the open, in concrete and in soil. The advantages are in the heavy pressure resistance and the high sliding enabled inner layer. With this cables and wires can be pulled in without problems over long distances. Single flexible plastic corrugated pipe with heavy pressure resistance. Up to 10 years UV-stable. VDE0605 DIN EN 61386-22 minimum compressive strength: 1250N/5cm
