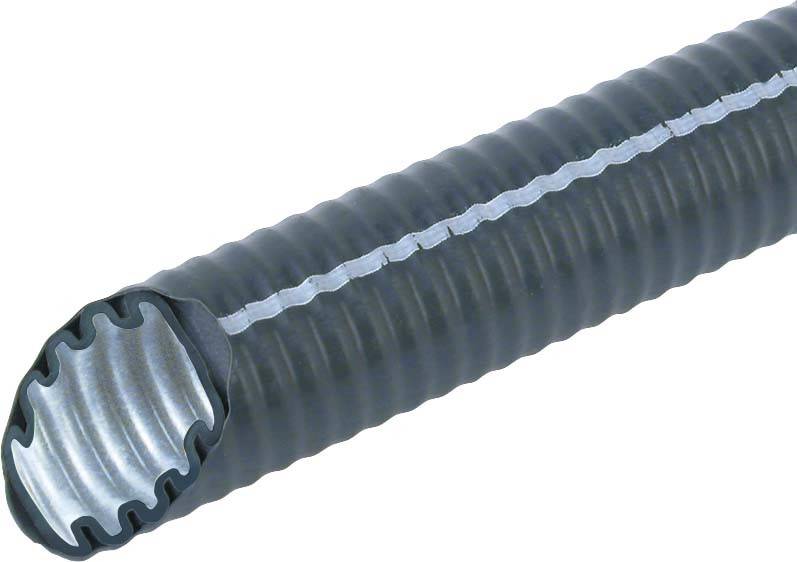

Fränkische Rohrwerke 25510020 FFKuS-EM-F-LS0H 20sw Conduit Black 13.6 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Conduit
Content
1 pc(s)
Material
Plastic
Conduit features
smooth inner lining
flame-retardant
pressure-resistant
halogen-free
Flexible
Inside diameter
13.6 mm
Datasheet (PDF)
Technical specifications
- Material = other
- Halogen-free = Yes
- Flame-resistant design = Yes
- Bending behavior = bendable
- With sleeve = No
- Compressive strength class = medium (class 3)
- Impact strength = medium (class 3)
- Flush-mounted = Yes
- Surface-mounted = Yes
- On Wood = Yes
- Hollow wall = Yes
- Suitable for concrete installation = Yes
- Machines and equipment installation = Yes
- Concealed installation (screed)=yes
- Installation in the open = No
- Laying in soil = Yes
- Inner diameter = 13.6 mm
- Outer diameter = 20 mm
- Operating temperature = .105 °C-45.
- Extra slippery inner coating = Yes
- Color = black
- RAL-number = 9005
- Product type
Conduit
- Content
1 pc(s)
- Factory colour
Black
- Material
Plastic
- Conduit features
smooth inner lining
flame-retardant
pressure-resistant
halogen-free
Flexible
- Inside diameter
13.6 mm
- Outside Ø
20 mm
- Max. temperature
+105 °C
- Min. temperature
-45 °C
- Length
50 m
- Manufacturer part #
25510020
- Type
FFKuS-EM-F-LS0H 20sw
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1965225 Fränkische Rohrwerke 25510020 FFKuS-EM-F-LS0H 20sw Conduit Black 13.6 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1965225 Fränkische Rohrwerke 25510020 FFKuS-EM-F-LS0H 20sw Conduit Black 13.6 mm 1 pc(s)
Description
FFKuS-EM-F-LS0 H Low Smoke is a medium-sized plastic corrugated pipe made from special plastic with high sliding capable inner layer, plastic sheath, not flame laying out, halogen-free. Used this plastic corrugated pipe especially during installation in concrete. The advantage lies in the extremely low smoke. This makes escape routes can be more easily identified and there are no dangerous toxic and corrosive gases due to the halogen-free. Halogen-free plastic corrugated pipes are marked with a solid white stripes. VDE0605 DIN EN 61386-22 100% halogen-free according to DIN VDE 0604-2-100 V flue-gas density according to DIN EN 61034-2 minimum compressive strength: 750 N/5 cm
This text is machine translated.
This text is machine translated.
