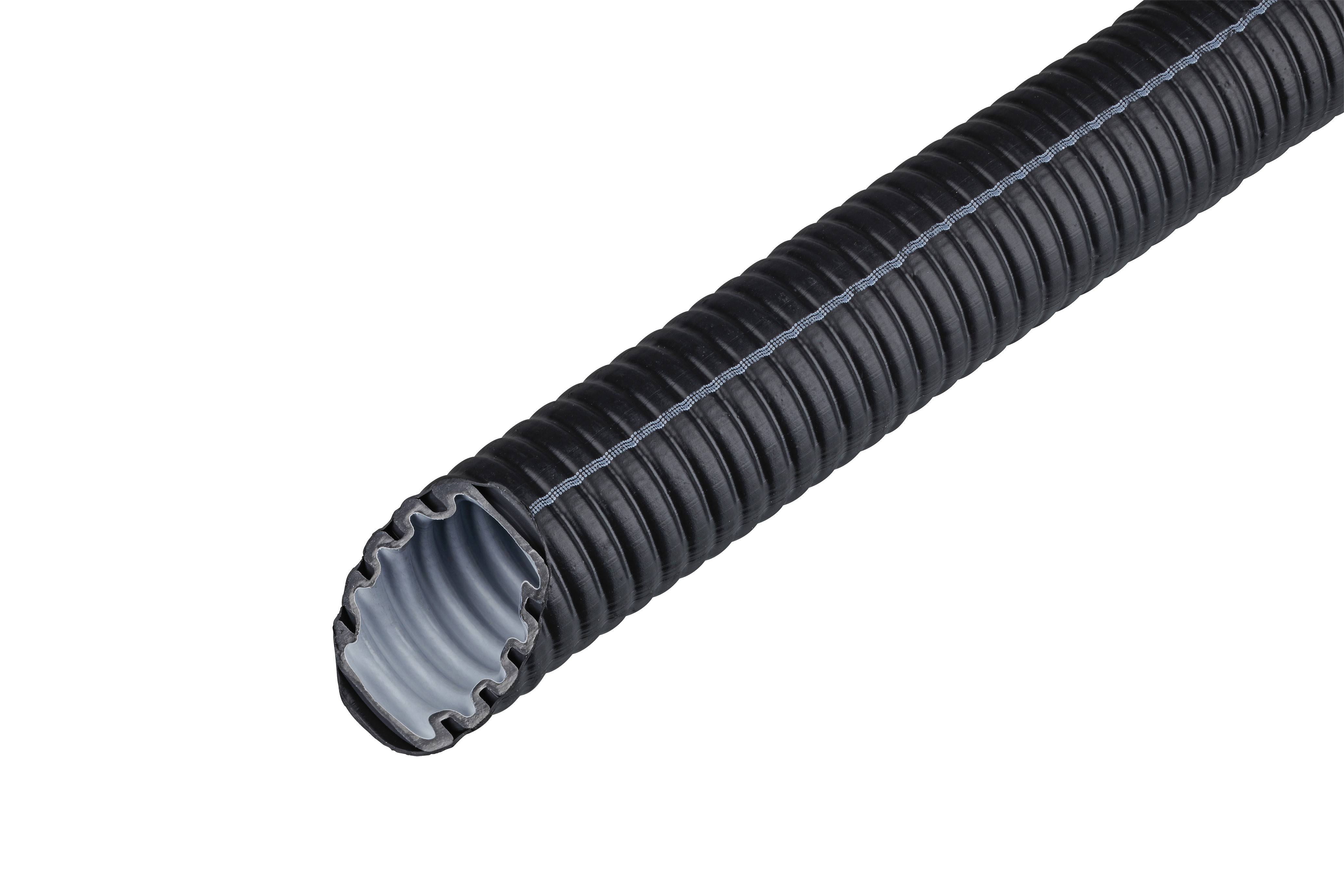

Fränkische Rohrwerke 25510040 FFKuS-EM-F-LS0H 40sw Conduit Black 29.8 mm 25 m
Product type
Conduit
Content
25 m
Material
Plastic
Conduit features
flame-retardant
Inside diameter
29.8 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Material: Other
- Halogen-free: Yes
- Flame-resistant version: Yes
- Bending characteristics: Flexible
- With sleeve: No.
- Compressive strength: Medium (class 3)
- Impact resistance: Medium (class 3)
- Flush mounting: Yes
- Surface mounting: Yes
- Suitable for installation on wood: Yes
- Suitable for hollow wall installation: Yes
- Suitable for concrete installation: Yes
- Machinery and equipment installation: Yes
- Underfloor installation (screed): Yes
- Outdoor installation: No.
- Suitable for laying in the ground: Yes
- 29.8 mm internal diameter
- Outer diameter: 40 mm
- Operating temperature 45 °C .105 °C
- High-gloss smooth inner layer: No.
- Colour, black
- RAL number: 9005
- Product type
Conduit
- Content
25 m
- Factory colour
Black
- Material
Plastic
- Conduit features
flame-retardant
- Inside diameter
29.8 mm
- Outside Ø
40 mm
- Max. temperature
105 °C
- Min. temperature
-45 °C
- Length
25 m
- Manufacturer part #
25510040
- Type
FFKuS-EM-F-LS0H 40sw
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3407298 Fränkische Rohrwerke 25510040 FFKuS-EM-F-LS0H 40sw Conduit Black 29.8 mm 25 m
User & Safety Instructions
User & Safety Instructions 3407298 Fränkische Rohrwerke 25510040 FFKuS-EM-F-LS0H 40sw Conduit Black 29.8 mm 25 m
Description
FFKUS-EM-F-LS0H Low Smoke is a medium plastic corrugated pipe made of special plastic, with highly flexible inner coating, plastic sheath, in black color (RAL 9005), not flame-retardant, halogen-free. This plastic corrugated conduit is particularly used for installation in concrete. The advantage is the extremely low smoke development. This makes escape routes easier to see and no dangerous toxic and corrosive gases arise because of the freedom of halogen. Halogen-free plastic corrugated pipes are marked with a continuous white longitudinal strip. VDE 0605 DIN EN 61386-22 100% halogen-free according to DIN VDE V 0604-2-100 flue gas density according to DIN EN 61034-2 Minimum pressure strength 750N/5cm
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x 25 m corrugated conduit
