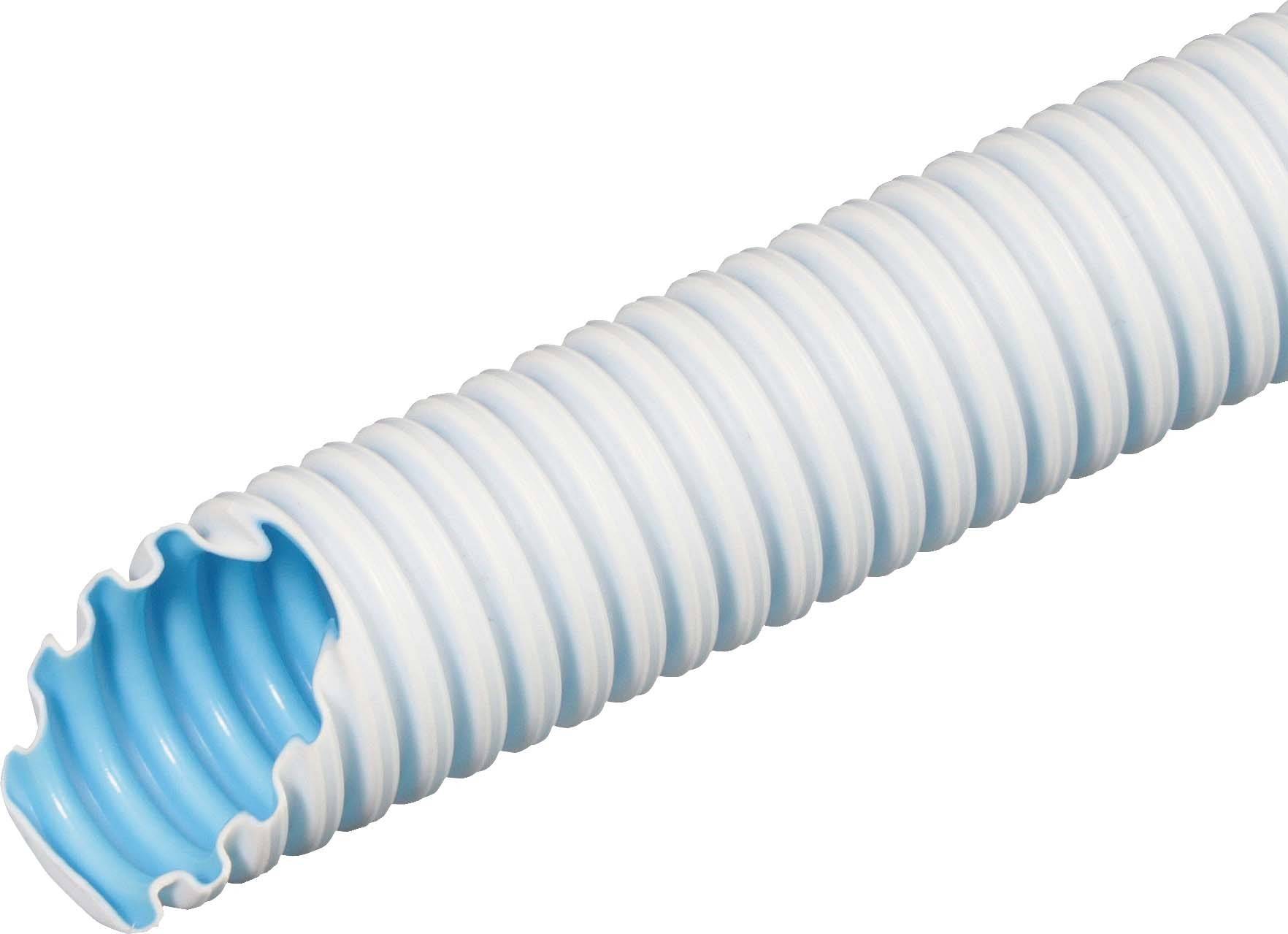

Fränkische Rohrwerke 26220032 FBY-EL-F 32 ws Conduit White 24.9 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Conduit
Content
1 pc(s)
Material
Polyolefin
Inside diameter
24.9 mm
Outside Ø
32 mm
Datasheet (PDF)
Technical specifications
- Material = Polyolefins
- Halogen-free = No
- Flame-resistant design = Yes
- Bending behavior = bendable
- With sleeve = No
- Compressive strength class = light (class 2)
- Impact strength = medium (class 3)
- Flush-mounted = Yes
- Surface-mounted = Yes
- On Wood = Yes
- Hollow wall = Yes
- Suitable for concrete installation = No
- Machines and equipment installation = No
- Concealed installation (screed)=yes
- Installation in the open = No
- Laying in soil = No
- Inner diameter = 24.9 mm
- Outer diameter = 32 mm
- Operating temperature = 15 .90 °C
- Extra slippery inner coating = No
- Color = white
- RAL-number = 9010
- Product type
Conduit
- Content
1 pc(s)
- Factory colour
White
- Material
Polyolefin
- Inside diameter
24.9 mm
- Outside Ø
32 mm
- Max. temperature
+90 °C
- Min. temperature
-15 °C
- Length
50 m
- Manufacturer part #
26220032
- Type
FBY-EL-F 32 ws
Documents & Downloads
Datasheet
Datasheet 1963865 Fränkische Rohrwerke 26220032 FBY-EL-F 32 ws Conduit White 24.9 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1963865 Fränkische Rohrwerke 26220032 FBY-EL-F 32 ws Conduit White 24.9 mm 1 pc(s)
Description
FBY-EL-F high-speed is a lightweight plastic corrugated pipe with high sliding capable lining made from polyolefin, not flame laying out in black color. Used this plastic corrugated pipes for the flush-mounted, hollow wall and floor screed installation. VDE0605 DIN EN 61386-22 minimum compressive strength: 320 N/5 cm
