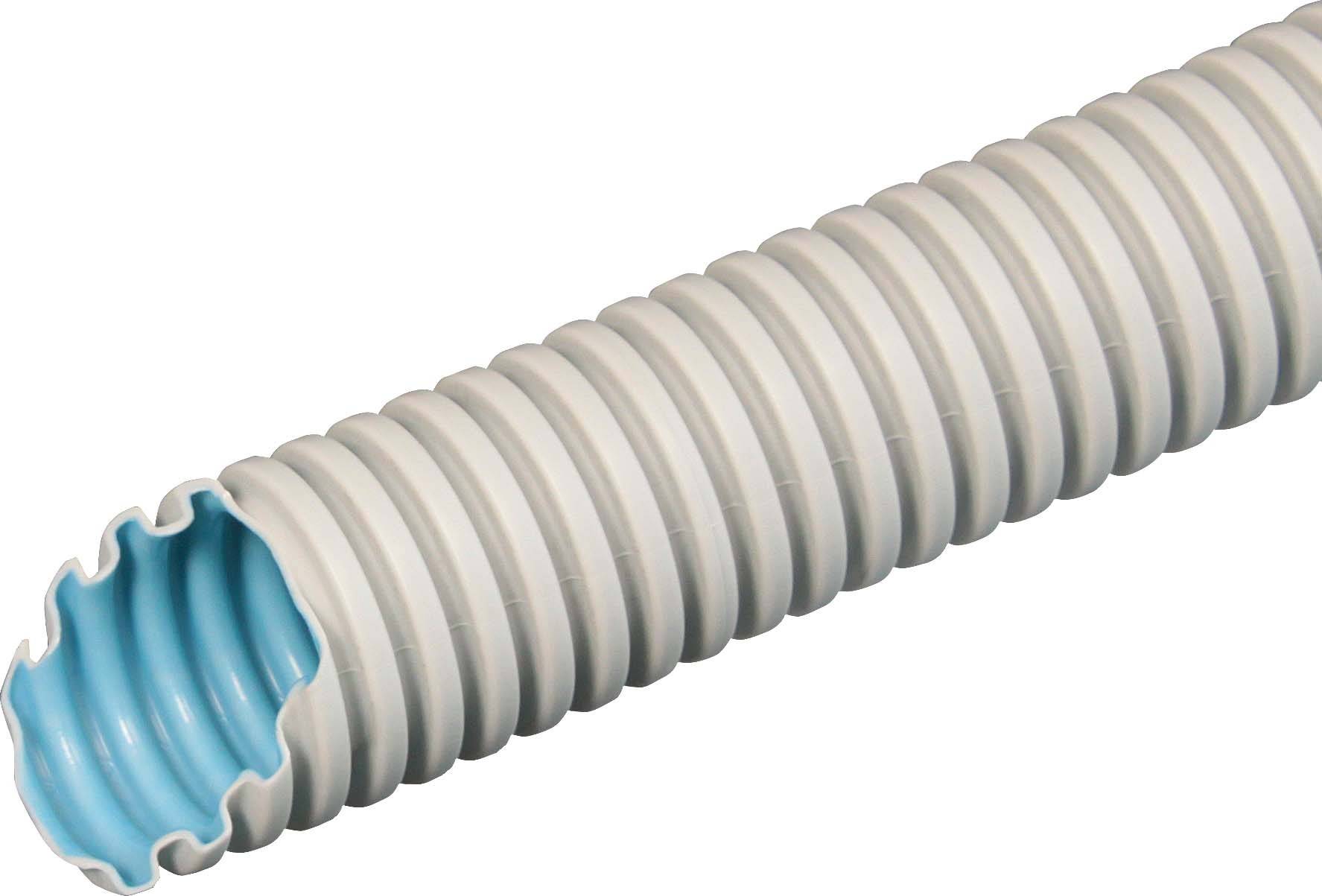

Fränkische Rohrwerke 26230025 FBY-EL-F 25 gr Conduit Grey 19.3 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Conduit
Content
1 pc(s)
Material
Polyolefin
Inside diameter
19.3 mm
Outside Ø
25 mm
Datasheet (PDF)
Technical specifications
- Material = Polyolefins
- Halogen-free = No
- Flame-resistant design = Yes
- Bending behavior = bendable
- With sleeve = No
- Compressive strength class = light (class 2)
- Impact strength = medium (class 3)
- Flush-mounted = Yes
- Surface-mounted = Yes
- On Wood = Yes
- Hollow wall = Yes
- Suitable for concrete installation = No
- Machines and equipment installation = No
- Concealed installation (screed)=yes
- Installation in the open = No
- Laying in soil = No
- Inner diameter = 19.3 mm
- Outer diameter = 25 mm
- Operating temperature = 15 .90 °C
- Extra slippery inner coating = Yes
- Color = gray
- RAL-number = 7035
- Product type
Conduit
- Content
1 pc(s)
- Factory colour
Grey
- Material
Polyolefin
- Inside diameter
19.3 mm
- Outside Ø
25 mm
- Max. temperature
+90 °C
- Min. temperature
-15 °C
- Length
50 m
- Manufacturer part #
26230025
- Type
FBY-EL-F 25 gr
Documents & Downloads
Datasheet
Datasheet 1966548 Fränkische Rohrwerke 26230025 FBY-EL-F 25 gr Conduit Grey 19.3 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1966548 Fränkische Rohrwerke 26230025 FBY-EL-F 25 gr Conduit Grey 19.3 mm 1 pc(s)
Description
FBY-EL-F high-speed is a lightweight plastic corrugated pipe with high sliding capable lining made from polyolefin, not flame laying out in color gray. Used this plastic corrugated pipes for the flush-mounted, hollow wall and floor screed installation. The advantage lies in the high sliding enabled inner layer Type 20 and 25. With this cables and wires can be pulled in without problems over long distances. VDE0605
This text is machine translated.
This text is machine translated.
