Fränkische Rohrwerke 26240025 FBY-EL-F 25 bl Conduit Blue 19.3 mm 1 pc(s)
Product type
Conduit
Content
1 pc(s)
Material
Polyolefin
Inside diameter
19.3 mm
Outside Ø
25 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Material = Polyolefins
- Halogen-free = No
- Flame-resistant design = Yes
- Bending behavior = bendable
- With sleeve = No
- Compressive strength class = light (class 2)
- Impact strength = medium (class 3)
- Flush-mounted = Yes
- Surface-mounted = Yes
- On Wood = Yes
- Hollow wall = Yes
- Suitable for concrete installation = No
- Machines and equipment installation = No
- Concealed installation (screed)=yes
- Installation in the open = No
- Laying in soil = No
- Inner diameter = 19.3 mm
- Outer diameter = 25 mm
- Operating temperature = 15 .90 °C
- Extra slippery inner coating = Yes
- Color = blue
- RAL-number = 5012
- Product type
Conduit
- Content
1 pc(s)
- Factory colour
Blue
- Material
Polyolefin
- Inside diameter
19.3 mm
- Outside Ø
25 mm
- Max. temperature
+90 °C
- Min. temperature
-15 °C
- Length
50 m
- Manufacturer part #
26240025
- Type
FBY-EL-F 25 bl
Documents & Downloads
Datasheet
Datasheet 1958466 Fränkische Rohrwerke 26240025 FBY-EL-F 25 bl Conduit Blue 19.3 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1958466 Fränkische Rohrwerke 26240025 FBY-EL-F 25 bl Conduit Blue 19.3 mm 1 pc(s)
Description

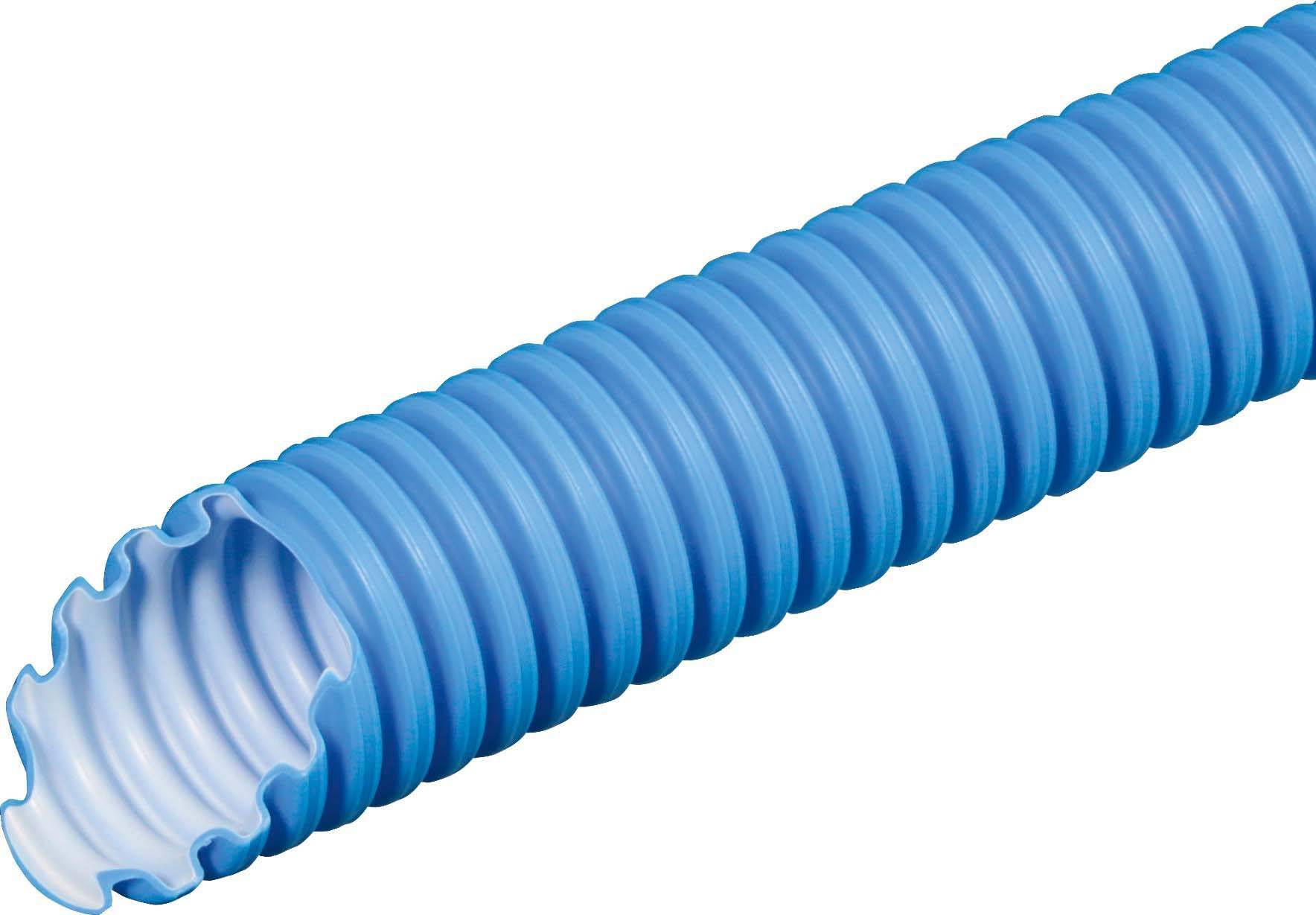

FBY-EL-F high-speed is a lightweight plastic corrugated pipe with high sliding capable lining made from polyolefin, not flame laying out in blue color. Used this plastic corrugated pipes for the flush-mounted, hollow wall and floor screed installation. The advantage lies in the high sliding enabled inner layer Type 20 and 25. With this cables and wires can be pulled in without problems over long distances. VDE0605
This text is machine translated.
This text is machine translated.
