Fränkische Rohrwerke 28121011 FFKSS-SW 11 Cable trunking Grey 50 m
Product type
Cable trunking
Factory colour
Grey
Material
PVC
Manufacturer part #
28121011
Content
50 m
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Plastic spiral hose difficult, flexible, size 50 m
- Grey
Technical specifications
- Nominal diameter = 11 mm
- Nominal size in inches = other
- Outer diameter = 17 mm
- Inner diameter = 13 mm
- Material = polyvinyl chloride (PVC)
- Material of the helical = plastic-covered spring steel
- Coating material = without coating
- Use temperature =-25:00-15 °C
- IP68 degree of protection (IP) =
- Bending radius
- Static = 17 mm
- UV-resistant = Yes
- Halogen-free = No
- Smooth inside = No
- Outdoor smooth = No
- Flexibility = very flexible
- Color = gray
- Certification according to DIN EN 61386-23 = No
- Approval according to UR = No
- Approval according to N = No
- Approval according to CSA = No
- Product type
Cable trunking
- Factory colour
Grey
- Material
PVC
- Manufacturer part #
28121011
- Content
50 m
- Length
50 m
- Max. temperature
+60 °C
- Min. temperature
-25 °C
- Type
FFKSS-SW 11
- Inside diameter
13 mm
IP68
- Outside Ø
17 mm
- Standards
no
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1955771 Fränkische Rohrwerke 28121011 FFKSS-SW 11 Cable trunking Grey 50 m
User & Safety Instructions
User & Safety Instructions 1955771 Fränkische Rohrwerke 28121011 FFKSS-SW 11 Cable trunking Grey 50 m
Description

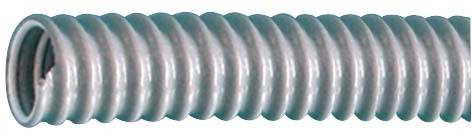

FFKSS-SW is a gray, flexible plastic spiral hose. The sheathing is made of PVC-P with a spiral from kunststoffummanteltem spring steel wire. Used this plastic spiral hose for the switchgear, switchgear cabinets, in mechanical engineering and robotics. The advantages are in the heavy pressure resistance, and the cold-impact strength in extreme temperatures. Up to 10 years UV-stable. Temperature resistance: -25°C to +60°C
This text is machine translated.
This text is machine translated.
