Fränkische Rohrwerke 28121029 FFKSS-SW 29 Cable trunking Grey 25 m
Product type
Cable trunking
Factory colour
Grey
Material
PVC
Manufacturer part #
28121029
Content
25 m
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Plastic spiral hose difficult, flexible, Gr
- Grey
Technical specifications
- Nominal diameter = 29 mm
- Nominal size in inches = other
- Outer diameter = 36 mm
- Inner diameter = 30 mm
- Material = polyvinyl chloride (PVC)
- Material of the helical = plastic-covered spring steel
- Coating material = without coating
- Use temperature =-25:00-15 °C
- IP68 degree of protection (IP) =
- Bending radius
- Static = 36 mm
- UV-resistant = Yes
- Halogen-free = No
- Smooth inside = No
- Outdoor smooth = No
- Flexibility = very flexible
- Color = gray
- Certification according to DIN EN 61386-23 = No
- Approval according to UR = No
- Approval according to N = No
- Approval according to CSA = No
- Product type
Cable trunking
- Factory colour
Grey
- Material
PVC
- Manufacturer part #
28121029
- Content
25 m
- Length
25 m
- Max. temperature
+60 °C
- Min. temperature
-25 °C
- Type
FFKSS-SW 29
- Inside diameter
30 mm
IP68
- Outside Ø
36 mm
- Standards
no
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1961192 Fränkische Rohrwerke 28121029 FFKSS-SW 29 Cable trunking Grey 25 m
User & Safety Instructions
User & Safety Instructions 1961192 Fränkische Rohrwerke 28121029 FFKSS-SW 29 Cable trunking Grey 25 m
Description

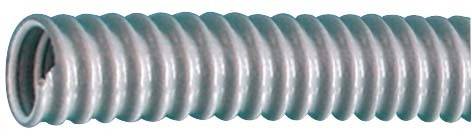

FFKSS-SW is a gray, flexible plastic spiral hose. The sheathing is made of PVC-P with a spiral from kunststoffummanteltem spring steel wire. Used this plastic spiral hose for the switchgear, switchgear cabinets, in mechanical engineering and robotics. The advantages are in the heavy pressure resistance, and the cold-impact strength in extreme temperatures. Up to 10 years UV-stable. Temperature resistance: -25°C to +60°C
This text is machine translated.
This text is machine translated.
