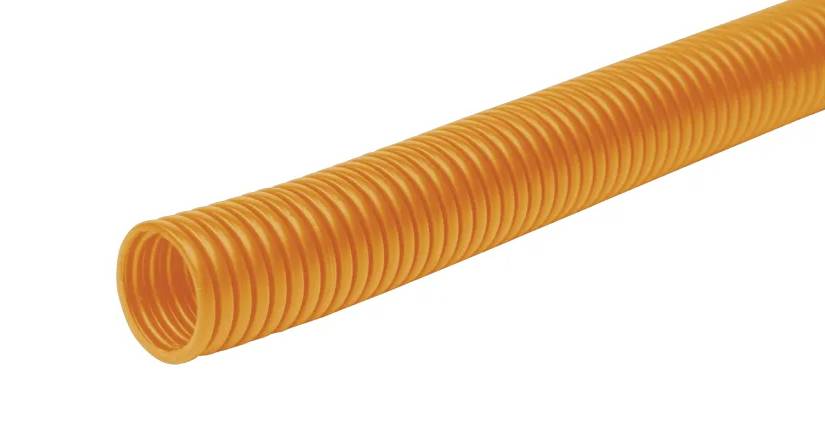

Fränkische Rohrwerke 3090204800 FPPSF-48O2.25 Conduit Orange 47.5 mm 25 m
Product type
Conduit
Content
25 m
Material
Polypropylene
Conduit features
UV-resistant
Inside diameter
47.5 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Nominal diameter 48 mm
- Nominal size in inches: Other
- Outer diameter: 54.4 mm
- Interior diameter 47.5 mm
- Material: Polypropylene (PP)
- Operating temperature -40..105°C
- PROTECTION CLASS (IP) IP66/IP67/IP68/IP69
- Fire protection according to UL 94 V2
- Bending radius, static 70 mm
- Bending radius, dynamic 185 mm
- UV-resistant: Yes
- Oil resistant: Yes
- Colour: orange.
- Jacket material: Without sheathing
- Flame-spreading: No.
- Bending characteristics: Flexible
- Tensile strength 500 N
- Slotted in length: No.
- Lockable (two-part): No.
- Halogen-free: Yes
- Approval according to DIN EN 61386-23: No.
- Approval according to UR: No.
- Approval according to CSA: No.
- Approval according to LUL/British standard: No.
- Approval according to Lloyd's register TA: No.
- Approval according to UTAC: No.
- Approval according to NF F 16-101: No.
- With train wire: No.
- High-gloss smooth inner layer: No.
- Approval according to DIN 5510: No.
- Approval according to VTÜV/GGVSEB: No.
- Product type
Conduit
- Content
25 m
- Factory colour
Orange
- Material
Polypropylene
- Conduit features
UV-resistant
- Inside diameter
47.5 mm
- Outside Ø
54.4 mm
- Max. temperature
105 °C
- Min. temperature
-40 °C
- Length
25 m
- Manufacturer part #
3090204800
- Type
FPPSF-48O2.25
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3407246 Fränkische Rohrwerke 3090204800 FPPSF-48O2.25 Conduit Orange 47.5 mm 25 m
User & Safety Instructions
User & Safety Instructions 3407246 Fränkische Rohrwerke 3090204800 FPPSF-48O2.25 Conduit Orange 47.5 mm 25 m
Description
FIPLOCK® plastic corrugated pipe FPPS-O made of specially formulated polypropylene, halogen-free, with fine profile. It is suitable for the optical identification of cables and wires. It is used in machine and plant engineering.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x 25 m corrugated conduit
