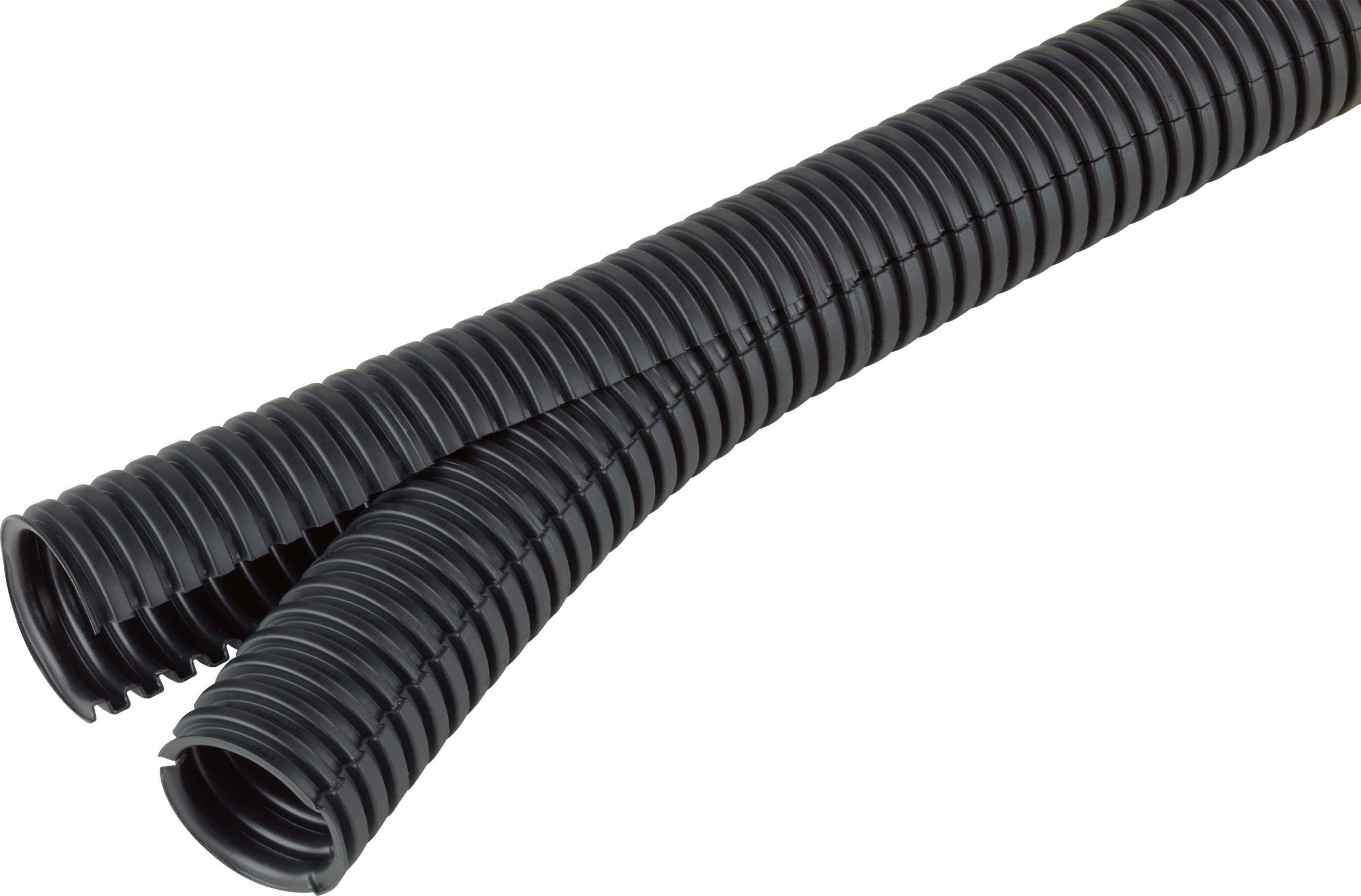

Fränkische Rohrwerke 37003700 Co-flex PP 37 sw Conduit Black 31 mm 25 m
Product type
Conduit
Content
25 m
Material
Polyphenylene
Inside diameter
31 mm
Outside Ø
41.4 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Nominal diameter = 37 mm
- Nominal size in inches = other
- Outer diameter = 41.4 mm
- Inner diameter = 31 mm
- Material = polypropylene (PP)
- Use temperature = .135 °C-40.
- Protection (IP) = other
- Fire protection according to UL 94 = HB
- Bending radius, static = 205 mm
- UV-resistant = No
- Oil-resistant = Yes
- Color = black
- Coating material = without coating
- Flame verb reitend = No
- Bending behavior = flexible
- Long slotted = Yes
- Can be locked (two parts) = Yes
- Halogen-free = No
- Certification according to DIN EN 61386-23 = No
- Approval according to UR = No
- Approval according to vd TÜV/GGVS = No
- Approval according to CSA = No
- Approval according to LUL/British Standard = No
- Approval according to Lloyd's Register TA = No
- Approval according to UTAC = No
- Certification according to DIN 5510 = No
- Approval according to NF F16-101 = No
- Product type
Conduit
- Content
25 m
- Factory colour
Black
- Material
Polyphenylene
- Inside diameter
31 mm
- Outside Ø
41.4 mm
- Max. temperature
+135 °C
- Min. temperature
-40 °C
- Manufacturer part #
37003700
- Type
Co-flex PP 37 sw
- Standards
no
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1957144 Fränkische Rohrwerke 37003700 Co-flex PP 37 sw Conduit Black 31 mm 25 m
User & Safety Instructions
User & Safety Instructions 1957144 Fränkische Rohrwerke 37003700 Co-flex PP 37 sw Conduit Black 31 mm 25 m
Description
Co-flex PP is an geschlitztes, lockable corrugated pipe made of PP-MOD-BS, not flame laying out. Used This corrugated pipe for subsequent protection of cables, in machine and plant construction as well as in the office and in the private sector. The advantages are in the high temperature resistance and in the protection against rodents and Nagetierverbiss. This separable corrugated tube is no effort in order to mount an already installed cable. The processing begins with the opening of the system, then the inner tube with cable equipped and as a last resort, the slot by attaching the outer tube closed. Temperature resistance: -40°C to +135 °C after LV 312-3 °C, short-term up to +150 °C temperature resistance according to DIN EN 61386-23: -25°C to +105 °C flammability: UL 94 HB/FMVSS302 Type B
This text is machine translated.
This text is machine translated.
What kind of Conduits are you looking for?
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
