Fränkische Rohrwerke 38402010 Co-flex PP 20 ws Conduit White 19.2 mm 25 m
Product type
Conduit
Content
25 m
Material
Polyphenylene
Inside diameter
19.2 mm
Outside Ø
25.3 mm
EAN:
Part number:
Item no:
Technical specifications
- Nominal diameter = 20 mm
- Nominal size in inches = other
- Outer diameter = 25.3 mm
- Inner diameter = 19.2 mm
- Material = polypropylene (PP)
- Use temperature = .135 °C-40.
- Protection (IP) = other
- Fire protection according to UL 94 = HB
- Bending radius, static = 130 mm
- UV-resistant = No
- Oil-resistant = Yes
- Color = white
- Coating material = without coating
- Flame verb reitend = No
- Bending behavior = flexible
- Long slotted = Yes
- Can be locked (two parts) = Yes
- Halogen-free = No
- Certification according to DIN EN 61386-23 = No
- Approval according to UR = No
- Approval according to vd TÜV/GGVS = No
- Approval according to CSA = No
- Approval according to LUL/British Standard = No
- Approval according to Lloyd's Register TA = No
- Approval according to UTAC = No
- Certification according to DIN 5510 = No
- Approval according to NF F16-101 = No
- Product type
Conduit
- Content
25 m
- Factory colour
White
- Material
Polyphenylene
- Inside diameter
19.2 mm
- Outside Ø
25.3 mm
- Max. temperature
+135 °C
- Min. temperature
-40 °C
- Manufacturer part #
38402010
- Type
Co-flex PP 20 ws
- Standards
no
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1965272 Fränkische Rohrwerke 38402010 Co-flex PP 20 ws Conduit White 19.2 mm 25 m
Description

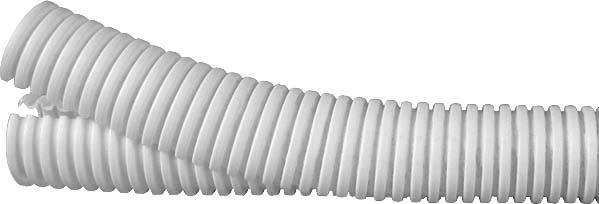

Co-flex PP White is a geschlitztes, lockable corrugated pipe made of PP-MOD-BS. Not flame laying out and available in white. Used This corrugated pipe for audio/hi-fi systems, office wiring, the shipbuilding, medical instruments such as x-ray equipment and CT scanner, hospital beds and furniture industry. The advantages are in the high temperature resistance and in the protection against rodents and Nagetierverbiss. This separable corrugated tube is no effort in order to mount an already installed cable. The processing begins with the opening of the system, then the inner tube with cable equipped and as a last resort, the slot by attaching the outer tube closed. Temperature resistance: -40°C to +135 °C after LV 312-3 °C, short-term up to +150 °C temperature resistance according to DIN EN 61386-23: -25°C to +105 °C flammability: UL 94 HB/FMVSS302 Type B
This text is machine translated.
This text is machine translated.
