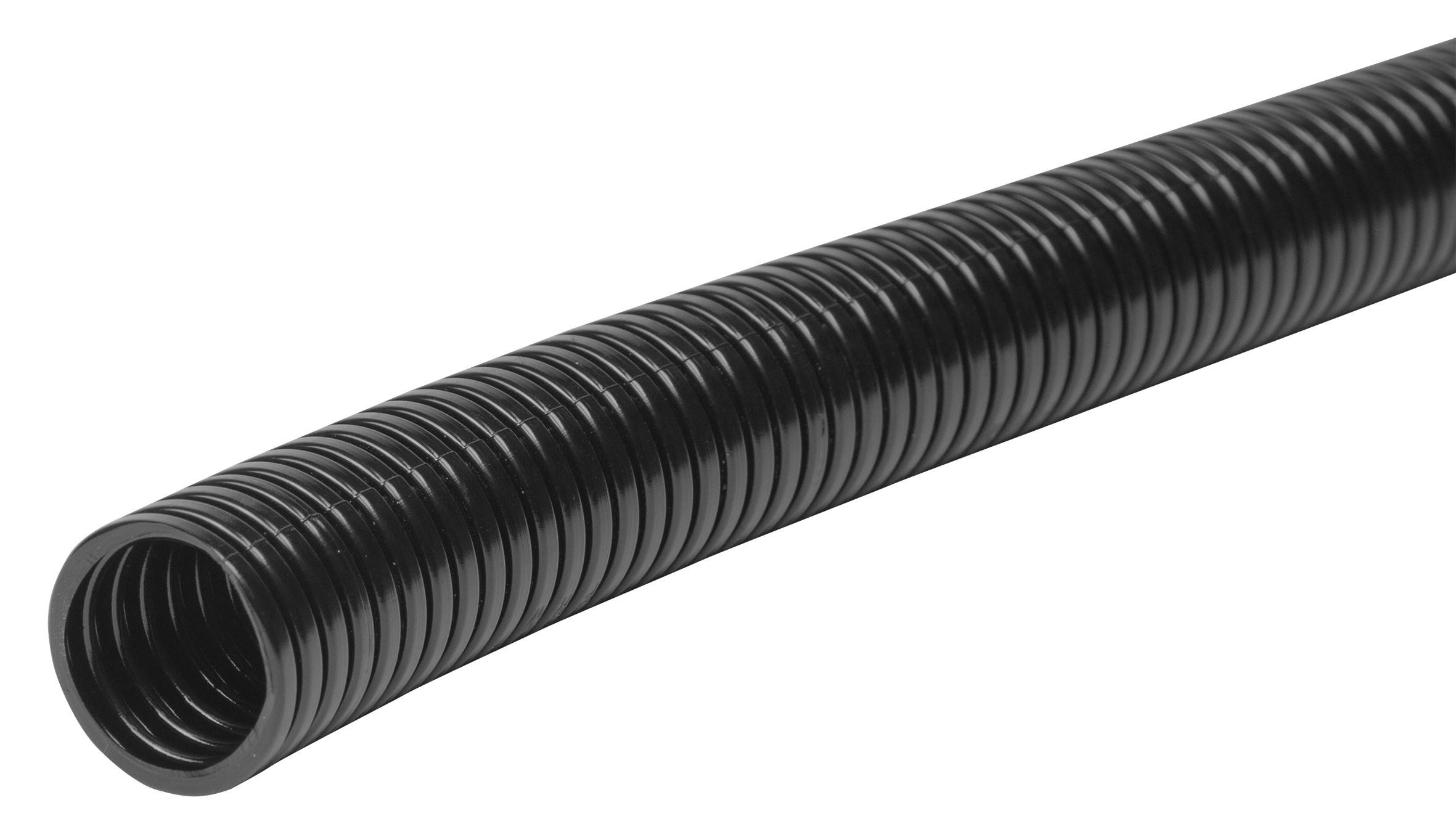

Fränkische Rohrwerke 4000004800 FPASF-48B.25 Conduit Black 47.5 mm 25 m
Product type
Conduit
Content
25 m
Material
Polyamide 6
Conduit features
oil-resistant
pressure-resistant
halogen-free
UV-resistant
Flexible
Inside diameter
47.5 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Nominal diameter 48 mm
- Nominal size in inches: Other
- Outer diameter: 54.4 mm
- Interior diameter 47.5 mm
- Material: Polyamide 6
- Operating temperature -45..120°C
- PROTECTION CLASS (IP) IP66/IP67/IP68/IP69
- Fire protection according to UL 94 V2
- Bending radius, static 65 mm
- Bending radius, dynamic 0 mm
- UV-resistant: Yes
- Oil resistant: Yes
- Colour, black
- Jacket material: Without sheathing
- Flame-spreading: No.
- Bending characteristics: Flexible
- Tensile strength 500 N
- Slotted in length: No.
- Lockable (two-part): No.
- Halogen-free: Yes
- Approval according to DIN EN 61386-23: No.
- Approval according to UR: Yes
- Approval according to CSA: Yes
- Approval according to LUL/British standard: No.
- Approval according to Lloyd's register TA: No.
- Approval according to UTAC: No.
- Approval according to NF F 16-101: No.
- With train wire: No.
- High-gloss smooth inner layer: No.
- Approval according to DIN 5510: No.
- Approval according to VTÜV/GGVSEB: No.
- Product type
Conduit
- Content
25 m
- Factory colour
Black
- Material
Polyamide 6
- Conduit features
oil-resistant
pressure-resistant
halogen-free
UV-resistant
Flexible
- Compatible with
SILVYN® FPAS
- Suitable for diameters
48 mm
- Inside diameter
47.5 mm
- Outside Ø
54.4 mm
- Max. temperature
120 °C
- Min. temperature
-45 °C
- Length
25 m
- Manufacturer part #
4000004800
- Type
FPASF-48B.25
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3407280 Fränkische Rohrwerke 4000004800 FPASF-48B.25 Conduit Black 47.5 mm 25 m
User & Safety Instructions
User & Safety Instructions 3407280 Fränkische Rohrwerke 4000004800 FPASF-48B.25 Conduit Black 47.5 mm 25 m
Description
FIPLOCK® plastic corrugated pipe FPAS made of high-quality, specially formulated polyamide 6, halogen-free, with fine profile. The "
All-rounder"
Is characterized by excellent fire protection properties with excellent impact resistance and compressive strength and excellent flexibility. It is used in machine, apparatus and electrical engineering applications.
This text is machine translated.
All-rounder"
Is characterized by excellent fire protection properties with excellent impact resistance and compressive strength and excellent flexibility. It is used in machine, apparatus and electrical engineering applications.
This text is machine translated.
Scope of delivery
- 1 x 25 m corrugated conduit
