Fränkische Rohrwerke 4003004800 FPASC-48B.25 Conduit Black 47 mm 25 m
Product type
Conduit
Content
25 m
Material
Polyamide 6
Conduit features
Flexible
UV-resistant
oil-resistant
halogen-free
Inside diameter
47 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Nominal diameter 48 mm
- Nominal size in inches: Other
- Outer diameter: 54.4 mm
- Interior diameter 47 mm
- Material: Polyamide 6
- Operating temperature -45..120°C
- PROTECTION CLASS (IP) IP66/IP67/IP68/IP69
- Fire protection according to UL 94 V2
- Bending radius, static 65 mm
- Bending radius, dynamic 0 mm
- UV-resistant: Yes
- Oil resistant: Yes
- Colour, black
- Jacket material: Without sheathing
- Flame-spreading: No.
- Bending characteristics: Flexible
- Tensile strength 500 N
- Slotted in length: No.
- Lockable (two-part): No.
- Halogen-free: Yes
- Approval according to DIN EN 61386-23: No.
- Approval according to UR: Yes
- Approval according to CSA: Yes
- Approval according to LUL/British standard: No.
- Approval according to Lloyd's register TA: No.
- Approval according to UTAC: No.
- Approval according to NF F 16-101: No.
- With train wire: No.
- High-gloss smooth inner layer: No.
- Approval according to DIN 5510: No.
- Approval according to VTÜV/GGVSEB: No.
- Product type
Conduit
- Content
25 m
- Factory colour
Black
- Material
Polyamide 6
- Conduit features
Flexible
UV-resistant
oil-resistant
halogen-free
- Suitable for diameters
48 mm
- Inside diameter
47 mm
- Outside Ø
54.4 mm
- Max. temperature
120 °C
- Min. temperature
-45 °C
- Length
25 m
- Manufacturer part #
4003004800
- Type
FPASC-48B.25
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3407279 Fränkische Rohrwerke 4003004800 FPASC-48B.25 Conduit Black 47 mm 25 m
User & Safety Instructions
User & Safety Instructions 3407279 Fränkische Rohrwerke 4003004800 FPASC-48B.25 Conduit Black 47 mm 25 m
Description

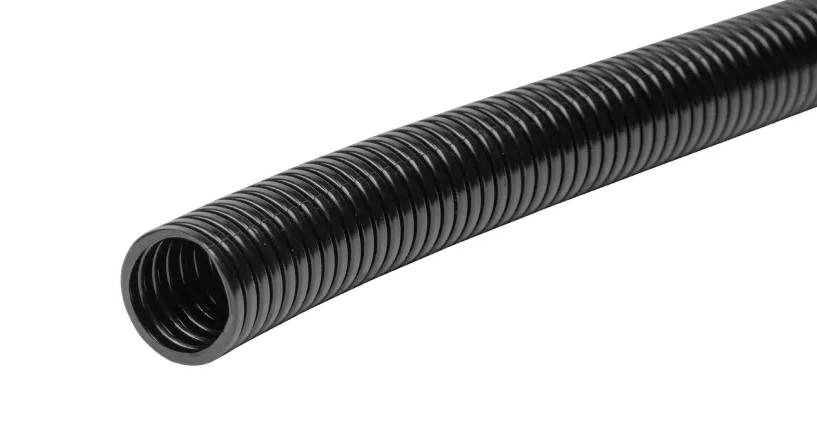

FIPLOCK® plastic corrugated pipe FPAS made of high-quality, specially formulated polyamide 6, halogen-free, with coarse profile. The "
All-rounder"
Is characterized by excellent fire protection properties with excellent impact resistance and compressive strength and excellent flexibility. It is used in machine, apparatus and electrical engineering applications.
This text is machine translated.
All-rounder"
Is characterized by excellent fire protection properties with excellent impact resistance and compressive strength and excellent flexibility. It is used in machine, apparatus and electrical engineering applications.
This text is machine translated.
Scope of delivery
- 1 x 25 m corrugated conduit
