Fränkische Rohrwerke 4100003700 2PASM-37B.25 Spiral tube Black 25 m
Product type
Spiral tube
Factory colour
Black
Manufacturer part #
4100003700
Content
25 m
Length
25 m
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

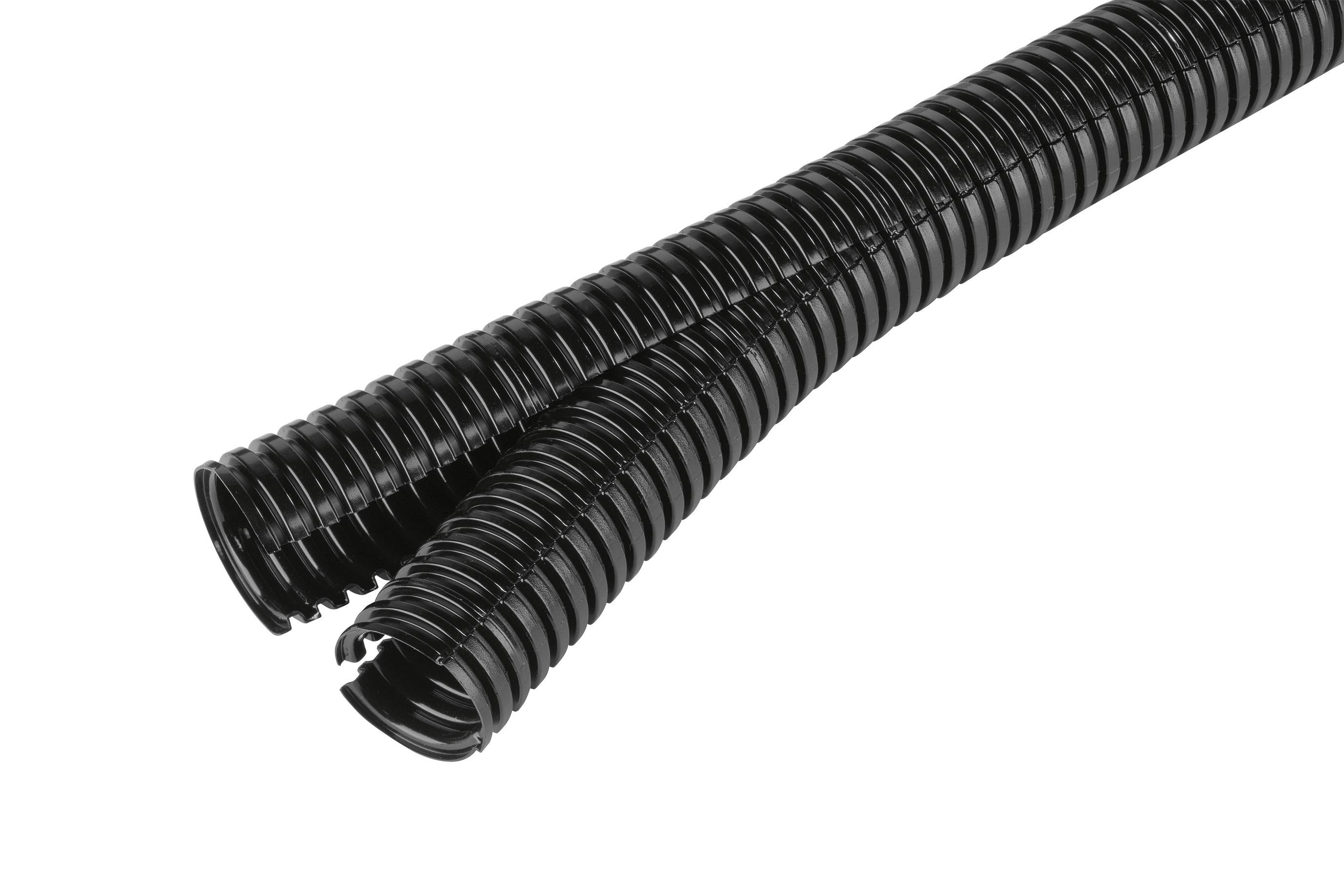

Franconian spiral hose black 2PASM-37B.25
- Black
Technical specifications
- Nominal diameter 37 mm
- Nominal size in inches: Other
- Outer diameter: 43.2 mm
- 32.5 mm internal diameter
- Material: Polyamide 6
- Operating temperature -45..120°C
- Protection class (IP) IP40
- Fire protection according to UL 94 V2
- Bending radius, static 135 mm
- Bending radius, dynamic 0 mm
- UV-resistant: Yes
- Oil resistant: Yes
- Colour, black
- Jacket material: Without sheathing
- Flame-spreading: No.
- Bending characteristics: Flexible
- Longitudinal: Yes
- Lockable (two-part): Yes
- Halogen-free: No.
- Approval according to DIN EN 61386-23: No.
- Approval according to UR: No.
- Approval according to CSA: No.
- Approval according to LUL/British standard: No.
- Approval according to Lloyd's register TA: No.
- Approval according to UTAC: No.
- Approval according to NF F 16-101: No.
- With train wire: No.
- High-gloss smooth inner layer: No.
- Approval according to DIN 5510: No.
- Approval according to VTÜV/GGVSEB: No.
- Product type
Spiral tube
- Factory colour
Black
- Manufacturer part #
4100003700
- Content
25 m
- Length
25 m
- Type
2PASM-37B.25
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3407324 Fränkische Rohrwerke 4100003700 2PASM-37B.25 Spiral tube Black 25 m
User & Safety Instructions
User & Safety Instructions 3407324 Fränkische Rohrwerke 4100003700 2PASM-37B.25 Spiral tube Black 25 m
Description
FIPSPLIT® divisible plastic corrugated pipe 2PAS made of specially formulated polyamide 6, halogen-free. The two-part corrugated pipe with good fire protection features is particularly suitable for the retrofitting of cables and wires. It is used in mechanical engineering, plant construction and railway engineering.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x 25 m spiral hose
