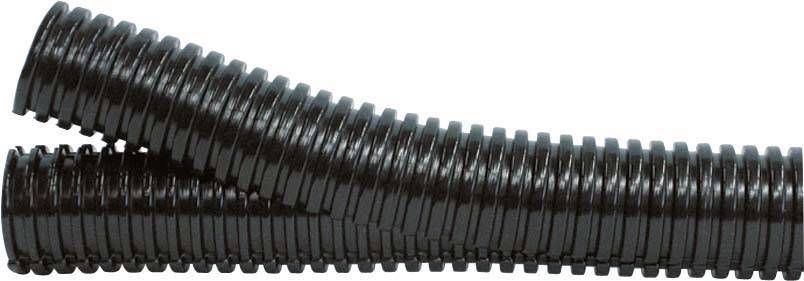

Fränkische Rohrwerke 41003700 Co-flex-PA 37 sw Conduit Black 32.5 mm 25 m
Product type
Conduit
Content
25 m
Material
Polyamide 6
Inside diameter
32.5 mm
Outside Ø
43.2 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Nominal diameter = 37 mm
- Nominal size in inches = other
- Outer diameter = 43.2 mm
- Inner diameter = 32.5 mm
- Material = polyamide 6
- Use temperature = .120 °C-40.
- Protection (IP) = other
- Fire protection according to UL 94 = V2
- Bending radius, static = 170 mm
- UV-resistant = No
- Oil-resistant = Yes
- Color = black
- Coating material = without coating
- Flame verb reitend = No
- Bending behavior = flexible
- Long slotted = Yes
- Can be locked (two parts) = Yes
- Halogen-free = Yes
- Certification according to DIN EN 61386-23 = No
- Approval according to UR = No
- Approval according to vd TÜV/GGVS = No
- Approval according to CSA = No
- Approval according to LUL/British Standard = No
- Approval according to Lloyd's Register TA = No
- Approval according to UTAC = No
- Certification according to DIN 5510 = No
- Approval according to NF F16-101 = No
- Product type
Conduit
- Content
25 m
- Factory colour
Black
- Material
Polyamide 6
- Inside diameter
32.5 mm
- Outside Ø
43.2 mm
- Max. temperature
+120 °C
- Min. temperature
-40 °C
- Manufacturer part #
41003700
- Type
Co-flex-PA 37 sw
- Standards
no
Documents & Downloads
Datasheet
Datasheet 1955768 Fränkische Rohrwerke 41003700 Co-flex-PA 37 sw Conduit Black 32.5 mm 25 m
User & Safety Instructions
User & Safety Instructions 1955768 Fränkische Rohrwerke 41003700 Co-flex-PA 37 sw Conduit Black 32.5 mm 25 m
Description
Co-flex PA6 is a geschlitztes, lockable corrugated pipe made of polyamide 6, not flame laying out and halogen-free. Used This corrugated pipe for subsequent protection on the computer, TV cabinet, in the cabinet, in automotive installation and in the electrical appliance industry. The advantages are in the high temperature resistance and in the protection against rodents and Nagetierverbiss. This separable corrugated tube is no effort in order to mount an already installed cable. The processing begins with the opening of the system, then the inner tube with cable equipped and as a last resort, the slot by attaching the outer tube closed. Temperature resistance: -40°C to +120°312-3 after LV C, short-term up to +150 °C temperature resistance according to DIN EN 61386-23: -45°C to +120°C flammability: UL 94 V2/FMVSS302
