Fränkische Rohrwerke 41007000 Co-flex-PA 70 sw Conduit Black 66 mm 10 m
Product type
Conduit
Content
10 m
Material
Polyamide 6
Conduit features
longitudinal slit
Inside diameter
66 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Nominal diameter 70 mm
- Nominal size in inches: Other
- Outer diameter: 79.8 mm
- 66 mm internal diameter
- Material: Polyamide 6
- Operating temperature -40..120°C
- Protection class (IP): Other
- Fire protection according to UL 94 V2
- Bending radius, static 300 mm
- UV-resistant: No.
- Oil resistant: Yes
- Colour, black
- Jacket material: Without sheathing
- Flame-spreading: No.
- Bending characteristics: Flexible
- Longitudinal: Yes
- Lockable (two-part): Yes
- Halogen-free: Yes
- Approval according to DIN EN 61386-23: No.
- Approval according to UR: No.
- Approval according to CSA: No.
- Approval according to LUL/British standard: No.
- Approval according to Lloyd's register TA: No.
- Approval according to UTAC: No.
- Approval according to NF F 16-101: No.
- With train wire: No.
- High-gloss smooth inner layer: No.
- Approval according to DIN 5510: No.
- Approval according to VTÜV/GGVSEB: No.
- Product type
Conduit
- Content
10 m
- Factory colour
Black
- Material
Polyamide 6
- Conduit features
longitudinal slit
- Suitable for diameters
70 mm
- Inside diameter
66 mm
- Outside Ø
79.8 mm
- Max. temperature
150 °C
- Min. temperature
-45 °C
- Length
10 m
- Manufacturer part #
41007000
- Type
Co-flex-PA 70 sw
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3407329 Fränkische Rohrwerke 41007000 Co-flex-PA 70 sw Conduit Black 66 mm 10 m
User & Safety Instructions
User & Safety Instructions 3407329 Fränkische Rohrwerke 41007000 Co-flex-PA 70 sw Conduit Black 66 mm 10 m
Description

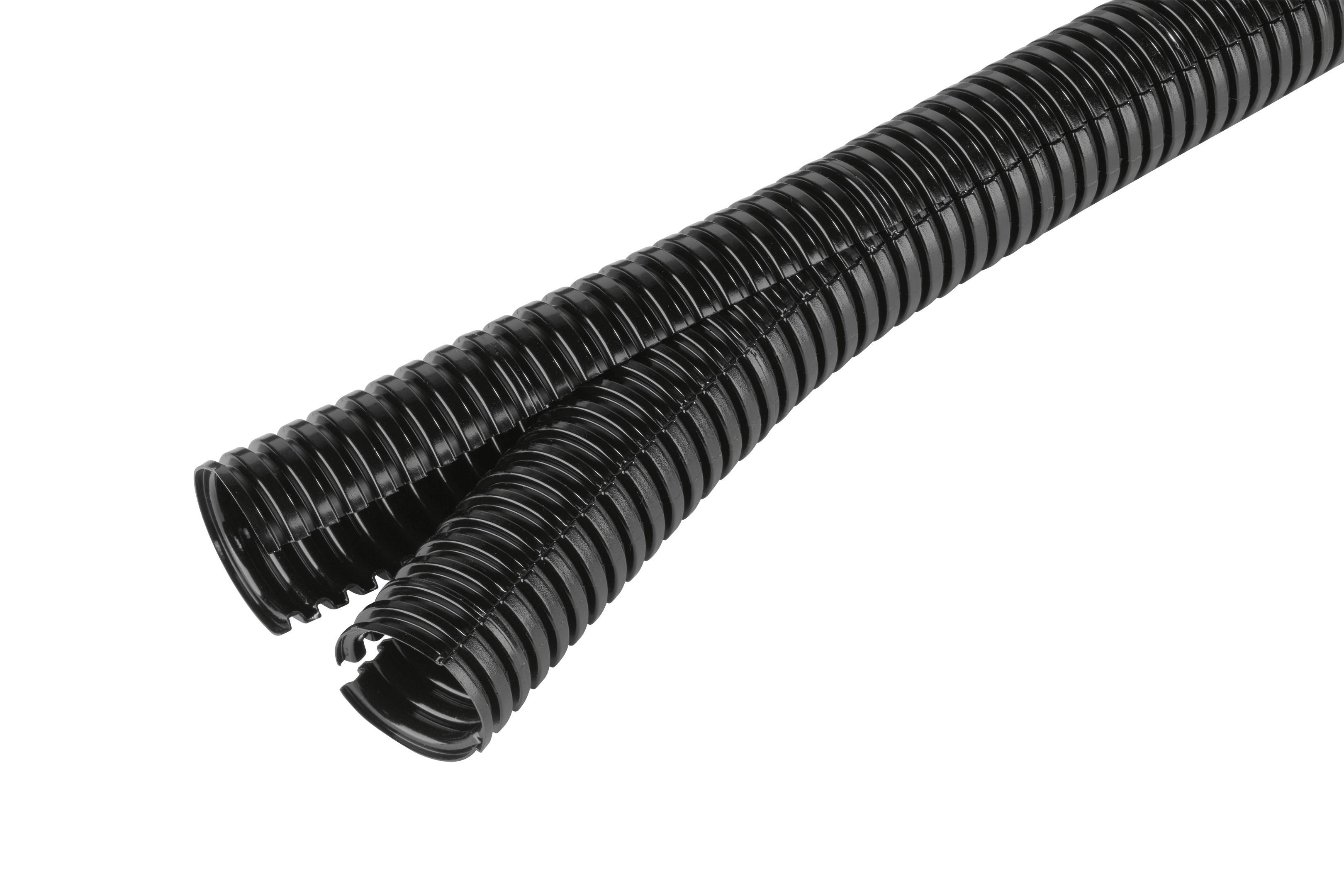

Co-Flex PA 6 is a slotted, lockable corrugated conduit made of polyamide 6, non-flame-spreading and halogen-free. Available in black color. This corrugated conduit is used for subsequent protection on the computer, at the TV-cabinet, in the switch cabinet construction, in the automotive installation and in the electrical equipment industry. The advantages lie in the high-temperature resistance and in the protection against damaging of rodents and rodents. This dividable corrugated pipe is easy to install to a previously installed pipe. Processing starts with opening the system, then the inner tube is fitted with cables and finally the slot is closed by inserting the outer tube. Temperature resistance according to LV312-3: -40° C to +120° C, short-term up to +150° C. Temperature resistance according to DIN EN 61386-22 (VDE 0605-23) -45° C to +120° C. Flammability: UL 94 V2 / FMVSS 302, non-flame retardant according to DIN EN 61386-22 (VDE0605-22).
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x 10 m corrugated conduit
