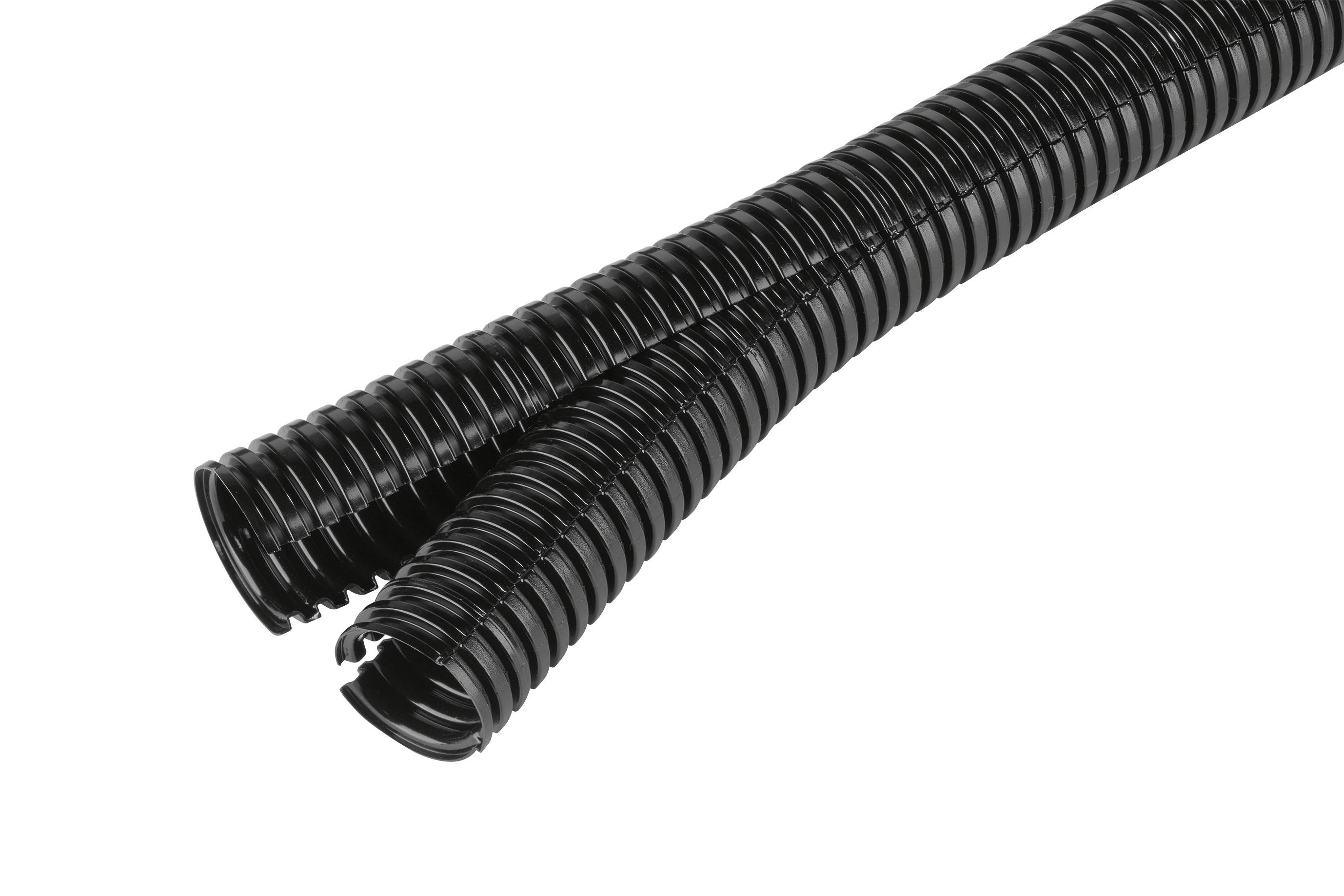

Fränkische Rohrwerke 4120007000 2PDSM-70B.10 Spiral tube Black 10 m
Product type
Spiral tube
Factory colour
Black
Manufacturer part #
4120007000
Content
10 m
Length
10 m
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Franconian spiral hose black 2PDSM-70B.10
- Black
Technical specifications
- Nominal diameter 70 mm
- Nominal size in inches: Other
- Outer diameter: 79.8 mm
- Interior diameter 67 mm
- Material: Polyamide 12
- Operating temperature -50..110°C
- Protection class (IP) IP40
- Fire protection according to UL 94 V2
- Bending radius, static 175 mm
- Bending radius, dynamic 350 mm
- UV-resistant: Yes
- Oil resistant: Yes
- Colour, black
- Jacket material: Without sheathing
- Flame-spreading: No.
- Bending characteristics: Flexible
- Longitudinal: Yes
- Lockable (two-part): Yes
- Halogen-free: Yes
- Approval according to DIN EN 61386-23: No.
- Approval according to UR: No.
- Approval according to CSA: No.
- Approval according to LUL/British standard: No.
- Approval according to Lloyd's register TA: No.
- Approval according to UTAC: No.
- Approval according to NF F 16-101: No.
- With train wire: No.
- High-gloss smooth inner layer: No.
- Approval according to DIN 5510: No.
- Approval according to VTÜV/GGVSEB: No.
- Product type
Spiral tube
- Factory colour
Black
- Manufacturer part #
4120007000
- Content
10 m
- Length
10 m
- Type
2PDSM-70B.10
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3407383 Fränkische Rohrwerke 4120007000 2PDSM-70B.10 Spiral tube Black 10 m
User & Safety Instructions
User & Safety Instructions 3407383 Fränkische Rohrwerke 4120007000 2PDSM-70B.10 Spiral tube Black 10 m
Description
FIPSPLIT® plastic corrugated pipe divisible 2PDS made of specially formulated polyamide 12, halogen-free, UV-stabilized. The two-part corrugated pipe with high fire protection and mechanical properties is particularly suitable for the retrofitting of cables and wires. It is used in machine and plant engineering, railway technology, solar and photovoltaic applications.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x 10 m spiral hose
