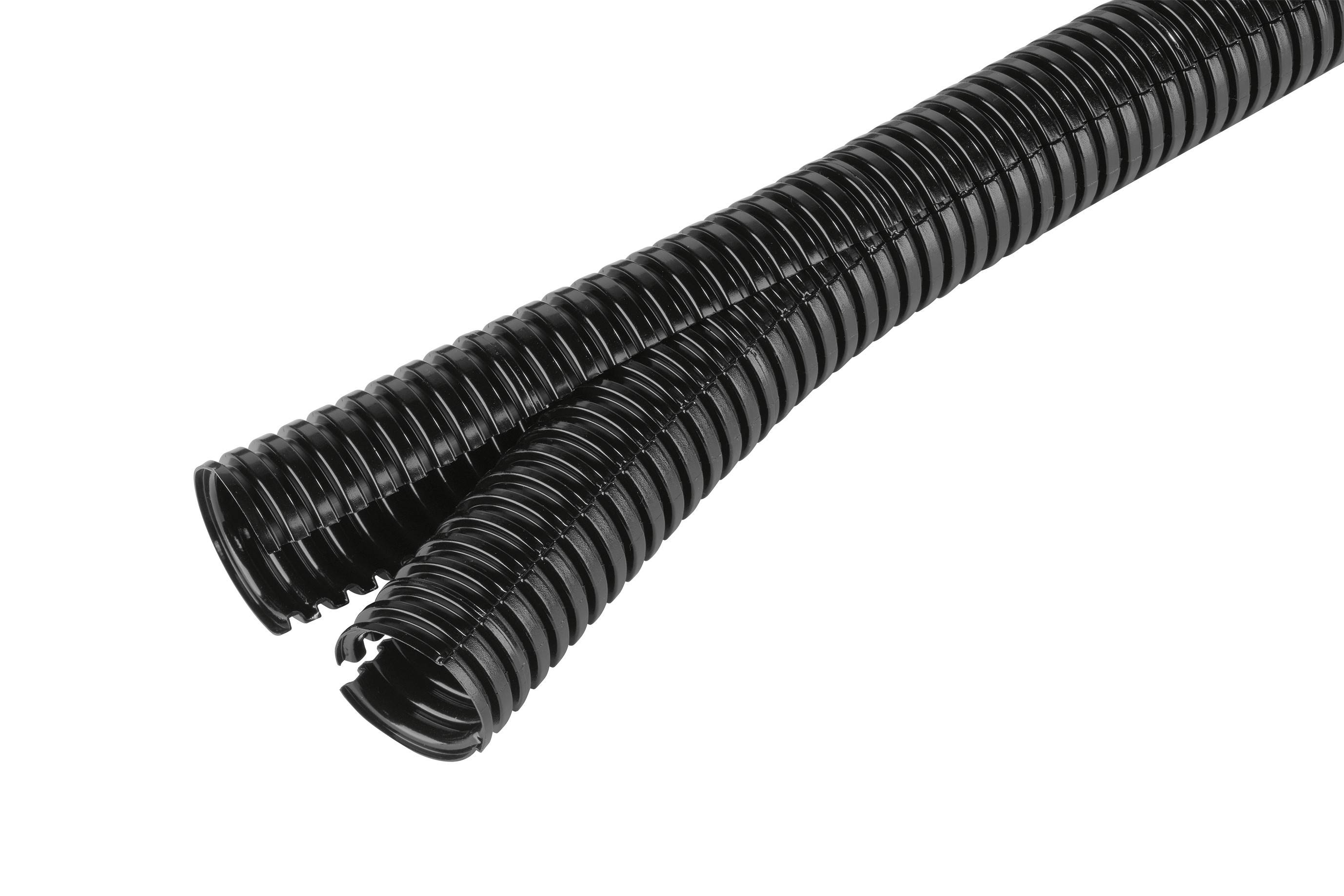

Fränkische Rohrwerke 4150004500 2PANM-45B.25 Spiral tube Black 25 m
Product type
Spiral tube
Factory colour
Black
Manufacturer part #
4150004500
Content
25 m
Length
25 m
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Franconian spiral hose black 2PANM-45B.25
- Black
Technical specifications
- Nominal diameter 45 mm
- Nominal size in inches: Other
- Outer diameter: 54.2 mm
- Interior diameter 43.1 mm
- Material: Polyamide 6
- Operating temperature -45..120°C
- Protection class (IP) IP40
- Fire protection according to UL 94 V2
- Bending radius, static 70 mm
- Bending radius, dynamic 0 mm
- UV-resistant: Yes
- Oil resistant: Yes
- Colour, black
- Jacket material: Without sheathing
- Flame-spreading: No.
- Bending characteristics: Flexible
- Longitudinal: Yes
- Lockable (two-part): Yes
- Halogen-free: Yes
- Approval according to DIN EN 61386-23: No.
- Approval according to UR: No.
- Approval according to CSA: No.
- Approval according to LUL/British standard: No.
- Approval according to Lloyd's register TA: No.
- Approval according to UTAC: No.
- Approval according to NF F 16-101: No.
- With train wire: No.
- High-gloss smooth inner layer: No.
- Approval according to DIN 5510: No.
- Approval according to VTÜV/GGVSEB: No.
- Product type
Spiral tube
- Factory colour
Black
- Manufacturer part #
4150004500
- Content
25 m
- Length
25 m
- Type
2PANM-45B.25
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3407350 Fränkische Rohrwerke 4150004500 2PANM-45B.25 Spiral tube Black 25 m
User & Safety Instructions
User & Safety Instructions 3407350 Fränkische Rohrwerke 4150004500 2PANM-45B.25 Spiral tube Black 25 m
Description
FIPSPLIT® divisible plastic corrugated pipe 2PAN made of specially formulated polyamide 6, halogen-free. The two-part corrugated pipe is particularly suitable for the retrofitting of cables and wires. It is used in mechanical engineering and plant construction.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x 25 m spiral hose
