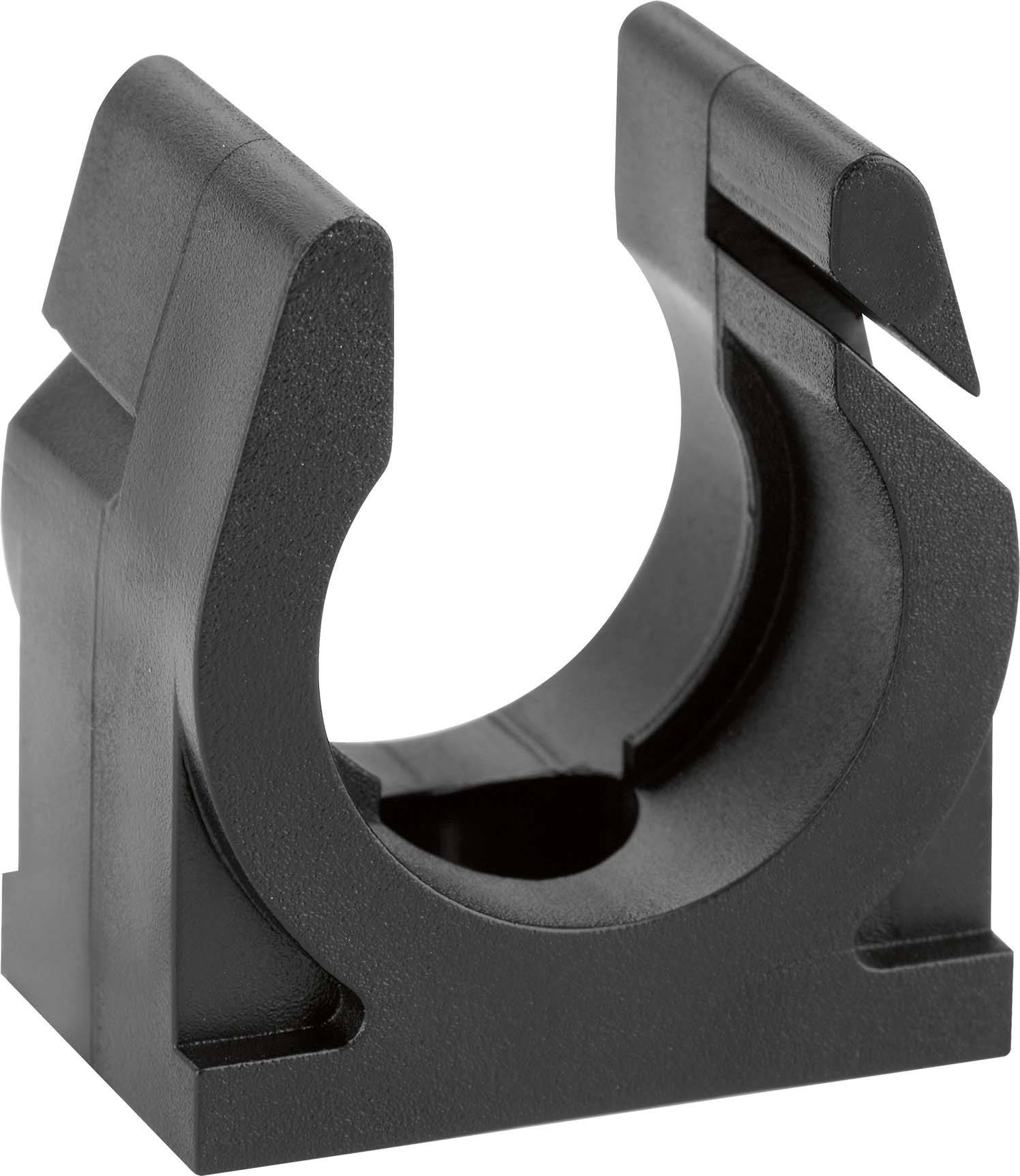

Fränkische Rohrwerke 49120202 COS Typ 20 sw /202 Tube holder Black 50 pc(s)
Product type
Tube holder
Content
50 pc(s)
Material
Plastic
Conduit features
halogen-free
Factory colour
Black
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Nominal diameter = 20 mm
- Diameter = 20 .20 mm
- Number of cables/pipes = 1
- Distance to the wall = No
- Design = zweilappig
- Mounting type = Screw Hole
- Material = Plastic
- Material good = polyamide (PA)
- Surface = untreated
- Halogen-free = Yes
- UV-resistant = No
- Suitable in the fire protection range = No
- Plastic sheath = No
- Color = black
- Product type
Tube holder
- Content
50 pc(s)
- Factory colour
Black
- Material
Plastic
- Conduit features
halogen-free
- Suitable for diameters
20 mm
- Max. temperature
+120 °C
- Min. temperature
-40 °C
- Manufacturer part #
49120202
- Terminal Ø (max.)
20 mm
- Type
COS Typ 20 sw /202
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1963862 Fränkische Rohrwerke 49120202 COS Typ 20 sw /202 Tube holder Black 50 pc(s)
User & Safety Instructions
User & Safety Instructions 1963862 Fränkische Rohrwerke 49120202 COS Typ 20 sw /202 Tube holder Black 50 pc(s)
Description
COS is a mounting clamp with integrated rib made of polyamide 66. This is halogen-free and not flame laying out. The mounting clip is used to secure the co-flex corrugated pipes. It is fitted with a bridge to prevent slipping of the tube into the clamp prevents. Special eyelets allow the pipe with the help of cable tie. Temperature resistance: -40°C to +120°312-3 after LV C, short-term up to +140 °C flammability: UL 94 V2/self-extinguishing
This text is machine translated.
This text is machine translated.
