FTCAP GMB22304040070 / 1013140 Electrolytic capacitor Screw-type 22000 µF 40 V (Ø x L) 40 mm x 70 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Electrolytic capacitor
Type
Screw-type
Capacity (elec.)
22000 µF
Nominal voltage
40 V
Dim
(Ø x L) 40 mm x 70 mm
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 26.04
3
4% = € 1.13
€ 24.91
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 26.04 / piece)
€ 26.04
plus VAT.
Highlights & Details
Electrolytic capacitor, 22000 µF, 40 V (DC), -10/+30 %, cup, Ø 40 mm
Our service for you
Technical specifications
- Tolerance -10/+30 %
- Product type
Electrolytic capacitor
- Type
Screw-type
- Dim
(Ø x L) 40 mm x 70 mm
- Capacity (elec.)
22000 µF
- Nominal voltage
40 V
- (Ø)
40 mm
- Content
1 pc(s)
- Length
70 mm
- RoHS-compliant
Yes
- Max. temperature
85 °C
- Min. temperature
-40 °C
- Type
GMB22304040070 / 1013140
Documents & Downloads
Datasheet
Datasheet 3046205 FTCAP GMB22304040070 / 1013140 Electrolytic capacitor Screw-type 22000 µF 40 V (Ø x L) 40 mm x 70 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3046205 FTCAP GMB22304040070 / 1013140 Electrolytic capacitor Screw-type 22000 µF 40 V (Ø x L) 40 mm x 70 mm 1 pc(s)
Description

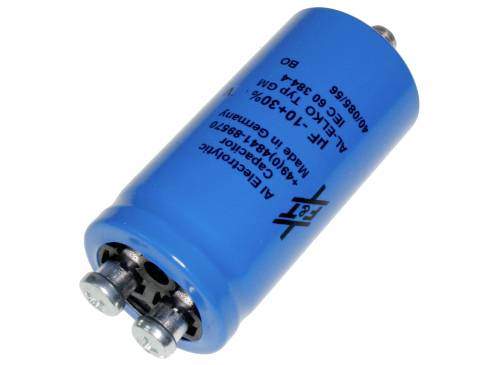

Electrolytic capacitor in aluminum housing type FTCAP GMB. With ground threaded bolts and M 5 thread connections With nominal voltage 40 VDC. Note: Due to the internal design, the cup is not potential-free. Therefore, it is absolutely necessary to use insulating material when mounting on conductive surfaces.
