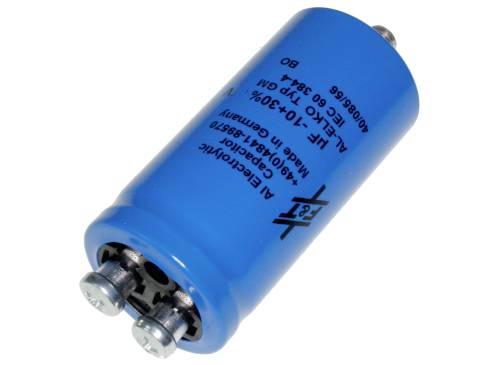

FTCAP GMB47210040070 Electrolytic capacitor Screw-type 4700 µF 100 V (Ø x L) 40 mm x 70 mm 1 pc(s)
Product type
Electrolytic capacitor
Type
Screw-type
Capacity (elec.)
4700 µF
Nominal voltage
100 V
Dim
(Ø x L) 40 mm x 70 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 29.99 / piece)
€ 29.99
incl. VAT
14-day return policy included
Highlights & Details
Electrolytic capacitor, 4700 µF, 100 V (DC), -10/+30 %, cup, Ø 40 mm
Our service for you
Technical specifications
- Tolerance -10/+30 %
- Product type
Electrolytic capacitor
- Type
Screw-type
- Dim
(Ø x L) 40 mm x 70 mm
- Capacity (elec.)
4700 µF
- Nominal voltage
100 V
- (Ø)
40 mm
- Content
1 pc(s)
- Length
70 mm
- RoHS-compliant
Yes
- Max. temperature
85 °C
- Min. temperature
-40 °C
- Type
GMB47210040070
Documents & Downloads
Datasheet
Datasheet 3046215 FTCAP GMB47210040070 Electrolytic capacitor Screw-type 4700 µF 100 V (Ø x L) 40 mm x 70 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3046215 FTCAP GMB47210040070 Electrolytic capacitor Screw-type 4700 µF 100 V (Ø x L) 40 mm x 70 mm 1 pc(s)
Description
Electrolytic capacitor in aluminum housing type FTCAP GMB. With ground threaded bolts and M 5 thread connections With nominal voltage 100 VDC. Note: Due to the internal design, the cup is not potential-free. Therefore, it is absolutely necessary to use insulating material when mounting on conductive surfaces.
This text is machine translated.
This text is machine translated.
