FUSG50110 Wireless indoor sounder ABUS Professional, ABUS Secvest

1/3
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions

Highlights & Details

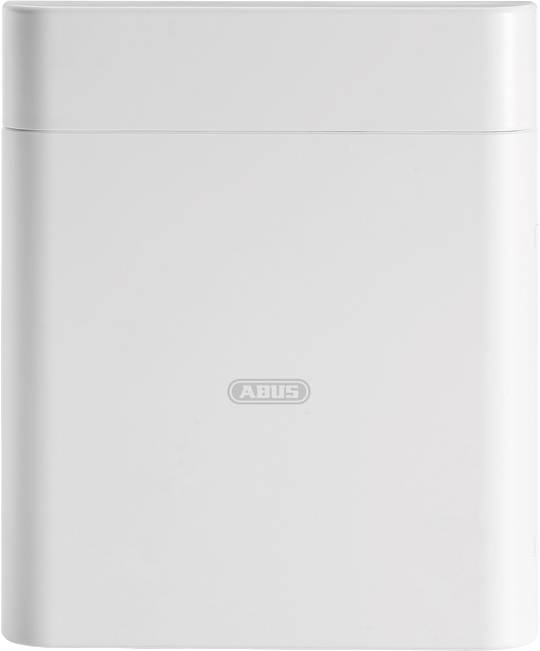

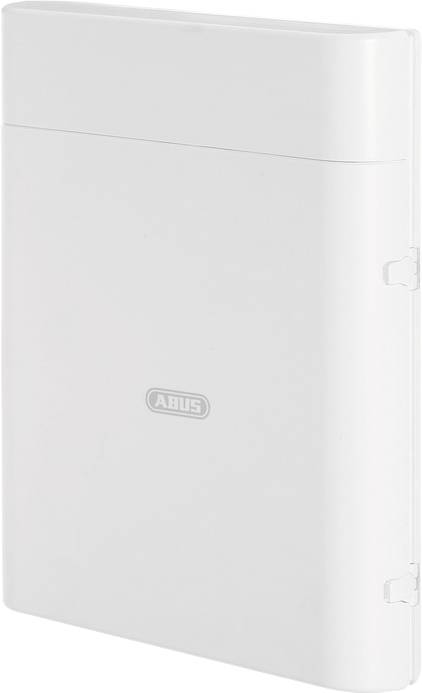

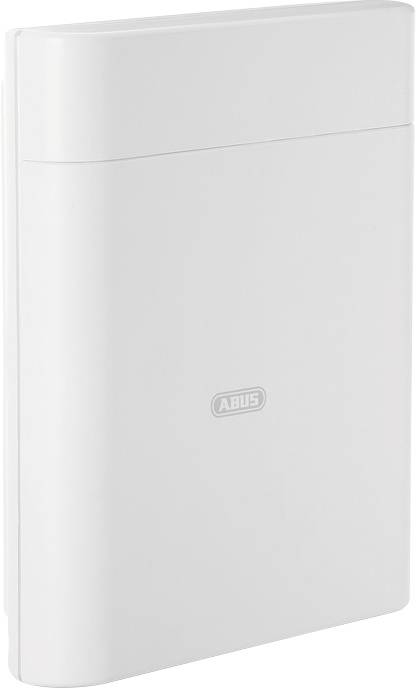

Secvest wireless indoor signal transmitter

  • Loud signal generator (80 dB(A)@1m) for indoor use
  • Acoustic support of central unit and wireless outdoor signal transmitter
  • Simple integration of up to 4 internal signaling devices in the Secvest

Technical specifications

Product type

Wireless indoor sounder

Series

ABUS Professional

ABUS Secvest

SPL

80 dB

500 m

Dim

(W x H x D) 54 x 130 x 40 mm

Operating temperature

-10 °C to +40 °C

Frequency

868.6625 MHz

Weight

310 g

Weight, information

incl. batteries

Width

54 mm

Height

130 mm

Depth

40 mm

Alarm sounder

Yes

Power supply (LOV)

mains-powered (optional)

battery-powered

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2298937 FUSG50110 Wireless indoor sounder ABUS Professional, ABUS Secvest

Description

The Secvest wireless indoor signal transmitter is an optional accessory of the Secvest. As a purely acoustic signal transmitter, it supports the wireless outdoor signal transmitter and the central unit of the Secvest in the event of an alarm – with a signal tone of more than 80 dB sound pressure.
The indoor signal transmitter can be connected very quickly and easily and integrated in the Secvest system. The inconspicuous housing design also makes it extremely flexible to position in the room. At the same time, it is ideal for use in environments with hohem esthetic requirements or listed premises, as well as for retrofitting existing systems where no wired solution is possible or desired.
The signaling device and the central unit communicate with each other on 868.6625 MHz, a radio frequency that is specially reserved for the security area. The wireless indoor signal transmitter can be supplied with voltage via battery or mains adapter. When using batteries, the service life is approx. two years. The internal signaling device monitors the supply and battery voltage under load conditions and reports faults to the control panel.

This text is machine translated.

Features

  • Loud signal generator (80 dB(A)@1m) for indoor use
  • Audible support of central unit and radio outdoor signal generator
  • Easy integration of up to 4 indoor signal transmitters in the Secvest-center
  • compatible equipment: FUAA50xxx B/W = v3.01.11, FUMO50010 wireless repeater
  • inconspicuous, compact product design
  • Flexible mounting and retrofitting with low effort
  • External power supply optional (6 - 15 V DC)
  • Jamming detection
  • Monitoring of the input voltage
  • Repeatable for bridging larger radio links.

Scope of delivery

  • Secvest wireless indoor signal transmitter
  • 4 x AA batteries
  • Quick guide
  • 3 x screws, plugs
  • 2 x cover housing screws.
