Name: Gaptec 10020041 DC/DC converter (print) 12 V DC 5 V DC 2 A 10 W No. of outputs: 1 x Content 1 pc(s)
Brand: Gaptec
SKU: 1603626
Availability: InStock

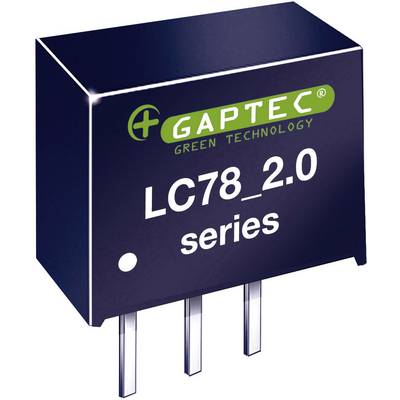

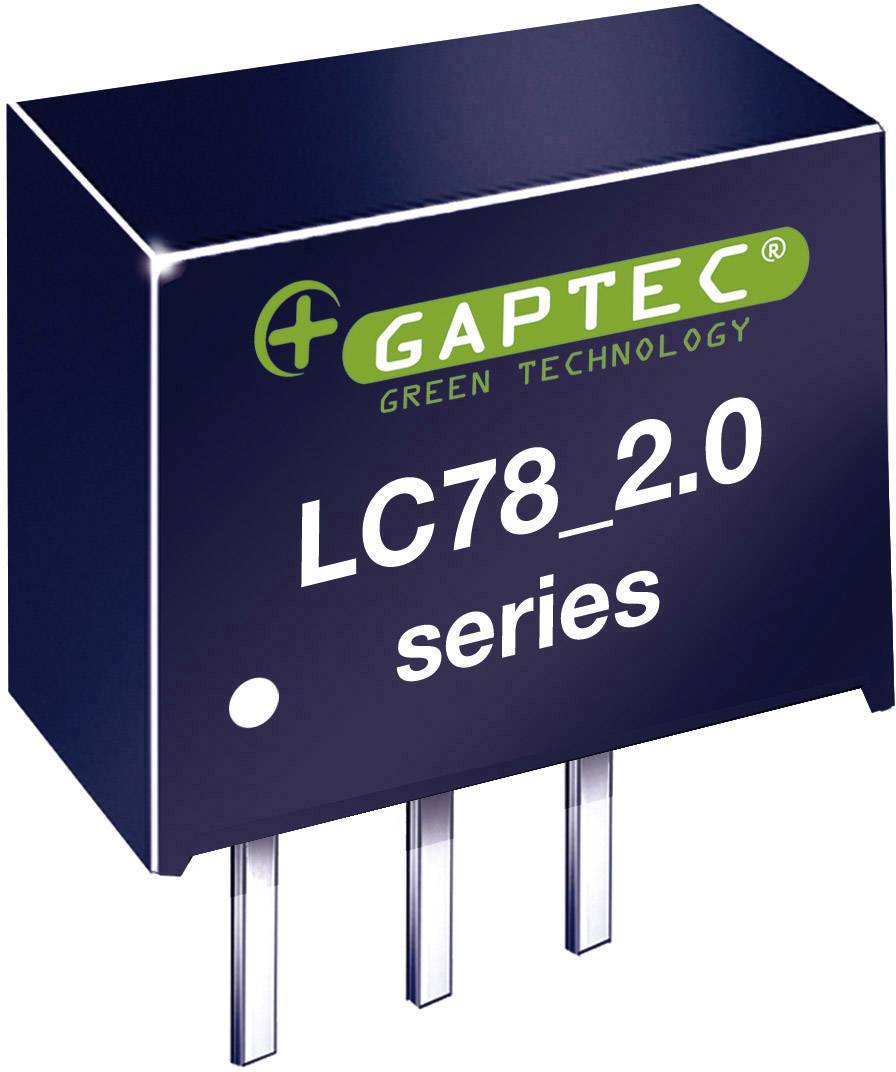

Electronic component with the inscription 'GAPTEC Green Technology LC78_2.0 series'. It has three terminals.

Image similar

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

17 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 13.99 / piece)

€ 13.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

DC/DC converter PIN, not isolated

Switching regulator LC 78 series
Protected against permanent short circuit
Closed housing

Technical specifications

Product type: DC/DC converter (print)

Type: LC78_05-2.0

Nominal voltage: 12 V DC

Min. input voltage: 6.5 V DC

Input voltage (max.): 30 V DC

No. of outputs: 1 x

Output voltages: 5 V DC

Max. output current: 2 A

Output current (max.) - rounded: 2 A

Efficiency (max.): 94 %

: 10 W

Enclosure: SIP 3

Connection: Solder pins

Operating temperature (min.): -40 °C

Operating temperature (max.): +85 °C

Dim: (L x W x H) 11.6 x 7.5 x 10.2 mm

Height: 10.2 mm

Length: 11.6 mm

Width: 7.5 mm

RoHS-compliant: Yes

Content: 1 pc(s)

Type: LC 78_05-2.0

Compliance & Certifications

Certified by EU Garan

Variants(All information include VAT, plus shipping costs)

Input voltage (max.)

Min. input voltage

Nominal voltage

Output current (max.) - rounded

Output voltages

Power

Gaptec 10020041 DC/DC converter (print) 12 V DC 5 V DC 2 A 10 W No. of outputs: 1 x Content 1 pc(s)

Item no:1603626

Fast track dispatch on Thu 29 Oct

17 Piece(s)Conrad Electronic

This article

30 V DC

6.5 V DC

12 V DC

2 A

5 V DC

10 W

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 13.99^*

Gaptec 10020073 DC/DC converter (print) 12 V DC 3.3 V DC 3 A 9.9 W No. of outputs: 1 x Content 1 pc(s)

Item no:1603627

Fast track dispatch on Thu 29 Oct

10 Piece(s)Conrad Electronic

28 V DC

4.5 V DC

12 V DC

3 A

3.3 V DC

9.9 W

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 16.99^*

Gaptec 10020074 DC/DC converter (print) 12 V DC 5 V DC 3 A 15 W No. of outputs: 1 x Content 1 pc(s)

Item no:1603628

Fast track dispatch on Thu 29 Oct

10 Piece(s)Conrad Electronic

28 V DC

6.5 V DC

12 V DC

3 A

5 V DC

15 W

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 16.99^*

Gaptec 10020557 DC/DC converter (print) 24 V DC 5 V DC 1 A 5 W No. of outputs: 1 x Content 1 pc(s)

Item no:1603622

Fast track dispatch on Thu 29 Oct

38 Piece(s)Conrad Electronic

42 V DC

6.5 V DC

24 V DC

1 A

5 V DC

5 W

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 9.99^*

Gaptec 10020042 DC/DC converter (print) 12 V DC 12 V DC 1.5 A 18 W No. of outputs: 1 x Content 1 pc(s)

Item no:1603625

Unavailable

Conrad Electronic

30 V DC

15 V DC

12 V DC

1.5 A

12 V DC

18 W

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 13.99^*

Gaptec 10020081 DC/DC converter (print) 12 V DC 12 V DC 500 mA 6 W No. of outputs: 1 x Content 1 pc(s)

Item no:1603620

Unavailable

Conrad Electronic

28 V DC

15 V DC

12 V DC

500 mA

12 V DC

6 W

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 3.99^*

Gaptec 10020082 DC/DC converter (print) 24 V DC 12 V DC 1 A 12 W No. of outputs: 1 x Content 1 pc(s)

Item no:1603623

Unavailable

Conrad Electronic

42 V DC

15 V DC

24 V DC

1 A

12 V DC

12 W

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 14.99^*

Gaptec 10020506 DC/DC converter (print) 12 V DC 3.3 V DC 500 mA 1.65 W No. of outputs: 1 x Content 1 pc(s)

Item no:1603618

Unavailable

Conrad Electronic

28 V DC

4.75 V DC

12 V DC

500 mA

3.3 V DC

1.65 W

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 6.99^*

Gaptec 10020507 DC/DC converter (print) 12 V DC 5 V DC 500 mA 2.5 W No. of outputs: 1 x Content 1 pc(s)

Item no:1603619

Unavailable

Conrad Electronic

28 V DC

6.8 V DC

12 V DC

500 mA

5 V DC

2.5 W

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 6.99^*

Documents & Downloads

Datasheet

Datasheet 1603626 Gaptec 10020041 DC/DC converter (print) 12 V DC 5 V DC 2 A 10 W No. of outputs: 1 x Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1603626 Gaptec 10020041 DC/DC converter (print) 12 V DC 5 V DC 2 A 10 W No. of outputs: 1 x Content 1 pc(s)

Warranty Terms

Warranty Terms 1603626 Gaptec 10020041 DC/DC converter (print) 12 V DC 5 V DC 2 A 10 W No. of outputs: 1 x Content 1 pc(s)

Description

Switching regulator of the 78 series as an alternative to the classical linear regulator. High high efficiency with low output noise.
