Name: Gaptec 10020074 DC/DC converter (print) 12 V DC 5 V DC 3 A 15 W No. of outputs: 1 x Content 1 pc(s)
Brand: Gaptec
SKU: 1603628
Availability: InStock

A black electronic component by GAPTEC, labelled 'LC78_3.0 Series', symbolises green technology.

Image similar

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

10 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 16.99 / piece)

€ 16.99

incl. VAT

Only 10 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

DC/DC converter PIN, not isolated

Switching regulator LC 78 series
Protected against permanent short circuit
Closed housing

Technical specifications

Product type: DC/DC converter (print)

Type: LC78_05-3.0

Nominal voltage: 12 V DC

Min. input voltage: 6.5 V DC

Input voltage (max.): 28 V DC

No. of outputs: 1 x

Output voltages: 5 V DC

Max. output current: 3 A

Output current (max.) - rounded: 3 A

Efficiency (max.): 95 %

: 15 W

Enclosure: SIP 3

Connection: Solder pins

Operating temperature (min.): -40 °C

Operating temperature (max.): +85 °C

Dim: (L x W x H) 11.6 x 7.5 x 10.2 mm

Height: 10.2 mm

Length: 11.6 mm

Width: 7.5 mm

RoHS-compliant: Yes

Content: 1 pc(s)

Type: LC 78_05-3.0

Compliance & Certifications

Certified by EU Garan

Variants(All information include VAT, plus shipping costs)

Input voltage (max.)

Min. input voltage

Nominal voltage

Output current (max.) - rounded

Output voltages

Power

Gaptec 10020074 DC/DC converter (print) 12 V DC 5 V DC 3 A 15 W No. of outputs: 1 x Content 1 pc(s)

Item no:1603628

Fast track dispatch on Thu 29 Oct

10 Piece(s)Conrad Electronic

This article

28 V DC

6.5 V DC

12 V DC

3 A

5 V DC

15 W

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 16.99^*

Gaptec 10020041 DC/DC converter (print) 12 V DC 5 V DC 2 A 10 W No. of outputs: 1 x Content 1 pc(s)

Item no:1603626

Fast track dispatch on Thu 29 Oct

17 Piece(s)Conrad Electronic

30 V DC

6.5 V DC

12 V DC

2 A

5 V DC

10 W

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 13.99^*

Gaptec 10020073 DC/DC converter (print) 12 V DC 3.3 V DC 3 A 9.9 W No. of outputs: 1 x Content 1 pc(s)

Item no:1603627

Fast track dispatch on Thu 29 Oct

10 Piece(s)Conrad Electronic

28 V DC

4.5 V DC

12 V DC

3 A

3.3 V DC

9.9 W

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 16.99^*

Gaptec 10020557 DC/DC converter (print) 24 V DC 5 V DC 1 A 5 W No. of outputs: 1 x Content 1 pc(s)

Item no:1603622

Fast track dispatch on Thu 29 Oct

38 Piece(s)Conrad Electronic

42 V DC

6.5 V DC

24 V DC

1 A

5 V DC

5 W

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 9.99^*

Gaptec 10020042 DC/DC converter (print) 12 V DC 12 V DC 1.5 A 18 W No. of outputs: 1 x Content 1 pc(s)

Item no:1603625

Unavailable

Conrad Electronic

30 V DC

15 V DC

12 V DC

1.5 A

12 V DC

18 W

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 13.99^*

Gaptec 10020081 DC/DC converter (print) 12 V DC 12 V DC 500 mA 6 W No. of outputs: 1 x Content 1 pc(s)

Item no:1603620

Unavailable

Conrad Electronic

28 V DC

15 V DC

12 V DC

500 mA

12 V DC

6 W

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 3.99^*

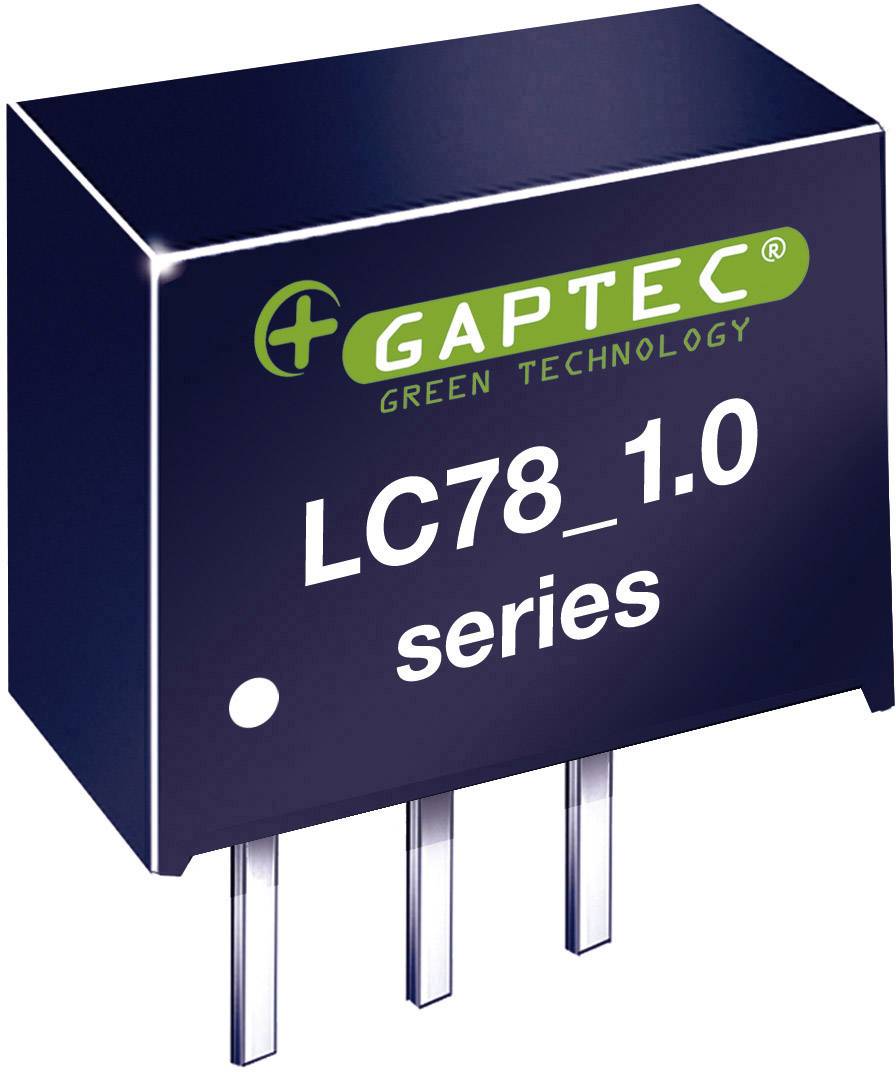

Gaptec 10020082 DC/DC converter (print) 24 V DC 12 V DC 1 A 12 W No. of outputs: 1 x Content 1 pc(s)

Item no:1603623

Unavailable

Conrad Electronic

42 V DC

15 V DC

24 V DC

1 A

12 V DC

12 W

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 14.99^*

Gaptec 10020506 DC/DC converter (print) 12 V DC 3.3 V DC 500 mA 1.65 W No. of outputs: 1 x Content 1 pc(s)

Item no:1603618

Unavailable

Conrad Electronic

28 V DC

4.75 V DC

12 V DC

500 mA

3.3 V DC

1.65 W

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 6.99^*

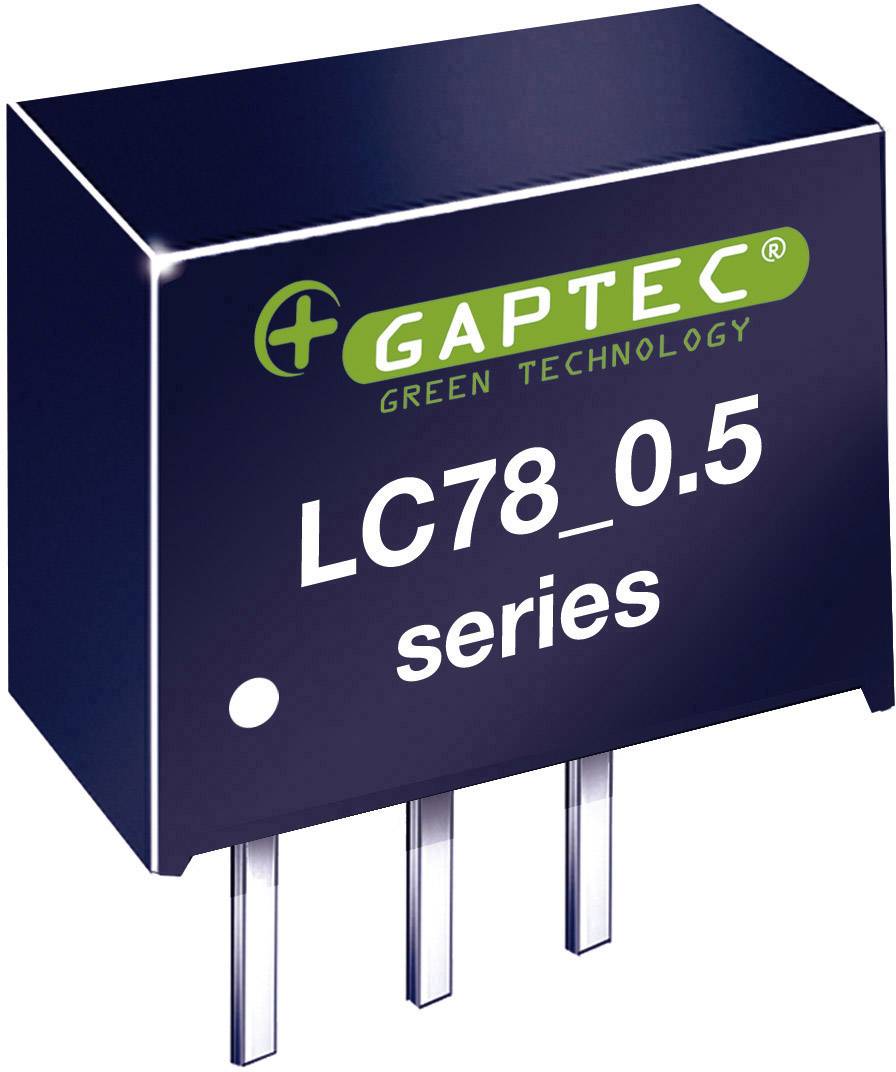

Gaptec 10020507 DC/DC converter (print) 12 V DC 5 V DC 500 mA 2.5 W No. of outputs: 1 x Content 1 pc(s)

Item no:1603619

Unavailable

Conrad Electronic

28 V DC

6.8 V DC

12 V DC

500 mA

5 V DC

2.5 W

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 6.99^*

Documents & Downloads

Datasheet

Datasheet 1603628 Gaptec 10020074 DC/DC converter (print) 12 V DC 5 V DC 3 A 15 W No. of outputs: 1 x Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1603628 Gaptec 10020074 DC/DC converter (print) 12 V DC 5 V DC 3 A 15 W No. of outputs: 1 x Content 1 pc(s)

Warranty Terms

Warranty Terms 1603628 Gaptec 10020074 DC/DC converter (print) 12 V DC 5 V DC 3 A 15 W No. of outputs: 1 x Content 1 pc(s)

Description

Switching regulator of the 78 series as an alternative to the classical linear regulator. High high efficiency with low output noise.

This text is machine translated.

Description

Switching regulator of the 78 series as an alternative to the classical linear regulator. High high efficiency with low output noise.
