Image similar

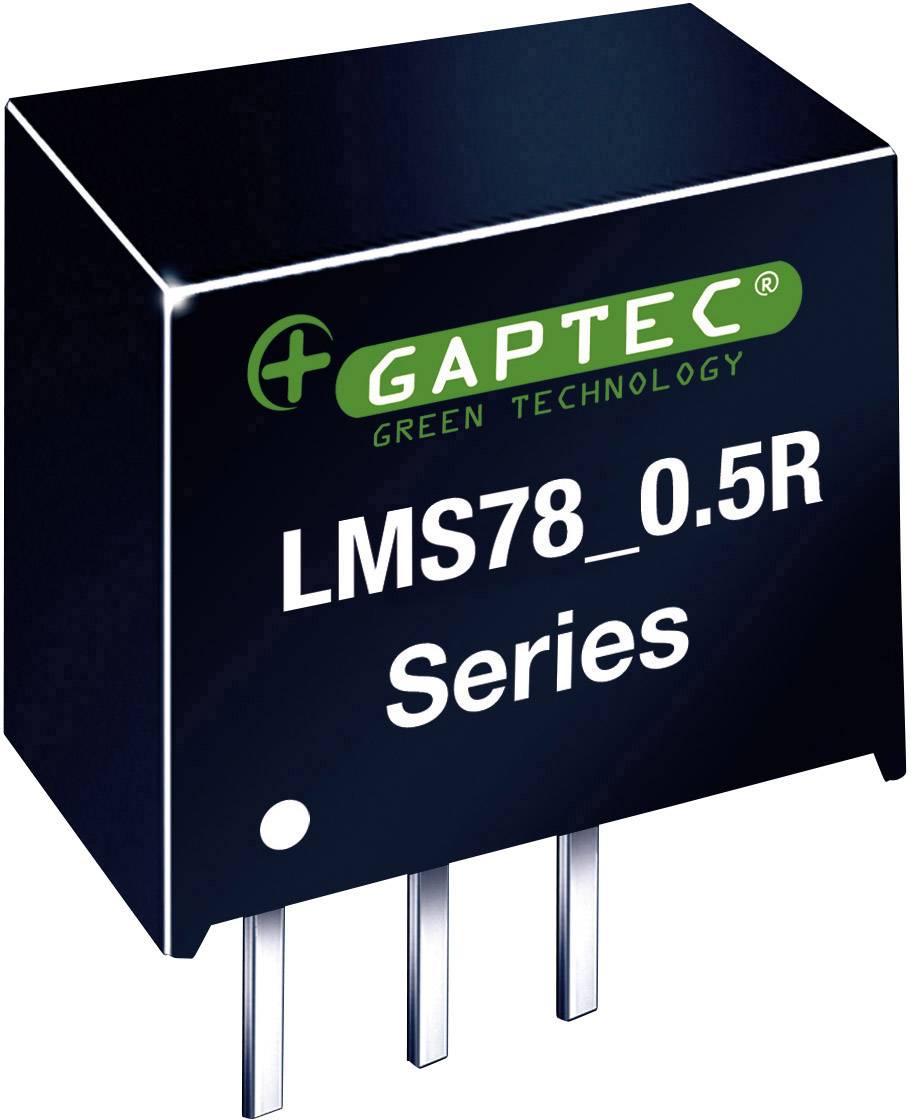

Gaptec 10020401 DC/DC converter (print) 24 V DC 9 V DC 500 mA 4.5 W No. of outputs: 1 x Content 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 4.29 / piece)
€ 4.29
incl. VAT
Only 2 Piece(s) available
Highlights & Details
DC/DC converter PIN, not isolated
- Switching regulator LM78 Series
- Protected against permanent short circuit
- Closed housing
Technical specifications
- Product type
DC/DC converter (print)
- Type
LMS78_09-0.5R
- Nominal voltage
24 V DC
- Min. input voltage
12 V DC
- Input voltage (max.)
36 V DC
- No. of outputs
1 x
- Output voltages
9 V DC
- Max. output current
500 mA
- Output current (max.) - rounded
500 mA
- Efficiency (max.)
90 %
4.5 W
- Enclosure
SIP 3
- Connection
Solder pins
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
+85 °C
- Dim
(L x W x H) 11.6 x 7.5 x 10.2 mm
- Height
10.2 mm
- Length
11.6 mm
- Width
7.5 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
- Type
LMS 78_09-0.5R
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 1603631 Gaptec 10020401 DC/DC converter (print) 24 V DC 9 V DC 500 mA 4.5 W No. of outputs: 1 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1603631 Gaptec 10020401 DC/DC converter (print) 24 V DC 9 V DC 500 mA 4.5 W No. of outputs: 1 x Content 1 pc(s)
Warranty Terms
Warranty Terms 1603631 Gaptec 10020401 DC/DC converter (print) 24 V DC 9 V DC 500 mA 4.5 W No. of outputs: 1 x Content 1 pc(s)
Description
Switching regulator of the 78 series as an alternative to the classical linear regulator. High efficiency with low output noise.
This text is machine translated.
This text is machine translated.
