Name: Gaptec 10020533 DC/DC converter (print) 24 V DC 5 V DC 500 mA 2.5 W No. of outputs: 1 x Content 1 pc(s)
Brand: Gaptec
SKU: 1603638
Availability: InStock

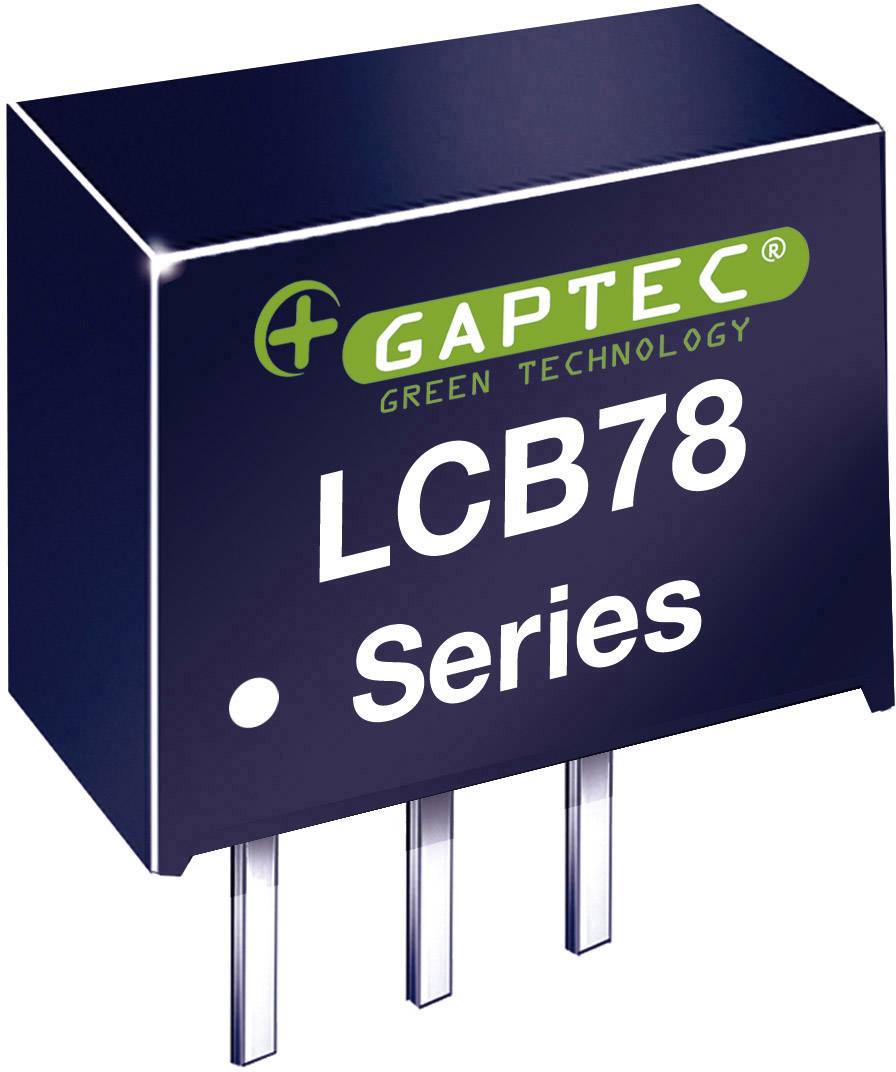

'Electronic component of the LCB78 series by GAPTEC, with three connection pins and the inscription "Green Technology".'

Image similar

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Fri 6 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Minimum order quantity: 5

Multiple: 5

Total (€ 7.49 / piece)

€ 15.99

-53 %

€ 7.49

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

DC/DC converter PIN, not isolated

Switching regulator LC 78 series
Protected against permanent short circuit
Closed housing

Technical specifications

Product type: DC/DC converter (print)

Type: LCB78_05-0.5

Nominal voltage: 24 V DC

Min. input voltage: 6.5 V DC

Input voltage (max.): 55 V DC

No. of outputs: 1 x

Output voltages: 5 V DC

Max. output current: 500 mA

Output current (max.) - rounded: 500 mA

Efficiency (max.): 95 %

: 2.5 W

Enclosure: SIP 3

Connection: Solder pins

Operating temperature (min.): -40 °C

Operating temperature (max.): +85 °C

Dim: (L x W x H) 11.6 x 6 x 10.2 mm

Height: 10.2 mm

Length: 11.6 mm

Width: 6 mm

RoHS-compliant: Yes

Content: 1 pc(s)

Type: LCB 78_05-0.5

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 1603638 Gaptec 10020533 DC/DC converter (print) 24 V DC 5 V DC 500 mA 2.5 W No. of outputs: 1 x Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1603638 Gaptec 10020533 DC/DC converter (print) 24 V DC 5 V DC 500 mA 2.5 W No. of outputs: 1 x Content 1 pc(s)

Warranty Terms

Warranty Terms 1603638 Gaptec 10020533 DC/DC converter (print) 24 V DC 5 V DC 500 mA 2.5 W No. of outputs: 1 x Content 1 pc(s)

Description

Switching regulator of the 78 series as an alternative to the classical linear regulator. Very high degree of efficiency greater than 90% with low output noise.

This text is machine translated.

Description

Switching regulator of the 78 series as an alternative to the classical linear regulator. Very high degree of efficiency greater than 90% with low output noise.
