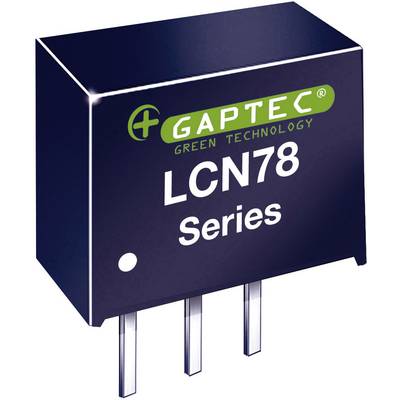

Name: Gaptec 10070190 DC/DC converter (print) 24 V DC 3.3 V DC 1 A 1.65 W No. of outputs: 1 x Content 1 pc(s)
Brand: Gaptec
SKU: 1603634
Availability: InStock

Image similar

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Wed 4 Nov

3 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 8.49 / piece)

€ 8.49

incl. VAT

Only 3 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

DC/DC converter PIN, not isolated

Switching regulator LC 78 series
Protected against permanent short circuit
Closed housing

Technical specifications

Product type: DC/DC converter (print)

Type: LCN78_03-0.5

Nominal voltage: 24 V DC

Min. input voltage: 4.5 V DC

Input voltage (max.): 42 V DC

No. of outputs: 1 x

Output voltages: 3.3 V DC

Max. output current: 1 A

Output current (max.) - rounded: 1 A

Efficiency (max.): 92 %

: 1.65 W

Enclosure: SIP 3

Connection: Solder pins

Operating temperature (min.): -40 °C

Operating temperature (max.): +100 °C

Dim: (L x W x H) 11.6 x 6 x 10.2 mm

Height: 10.2 mm

Length: 11.6 mm

Width: 6 mm

RoHS-compliant: Yes

Content: 1 pc(s)

Type: LCN 78_03-0.5

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 1603634 Gaptec 10070190 DC/DC converter (print) 24 V DC 3.3 V DC 1 A 1.65 W No. of outputs: 1 x Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1603634 Gaptec 10070190 DC/DC converter (print) 24 V DC 3.3 V DC 1 A 1.65 W No. of outputs: 1 x Content 1 pc(s)

Warranty Terms

Warranty Terms 1603634 Gaptec 10070190 DC/DC converter (print) 24 V DC 3.3 V DC 1 A 1.65 W No. of outputs: 1 x Content 1 pc(s)

Description

Switching regulator of the 78 series as an alternative to the classical linear regulator. Very high degree of efficiency greater than 90% with low output noise.

This text is machine translated.

Description

Switching regulator of the 78 series as an alternative to the classical linear regulator. Very high degree of efficiency greater than 90% with low output noise.
