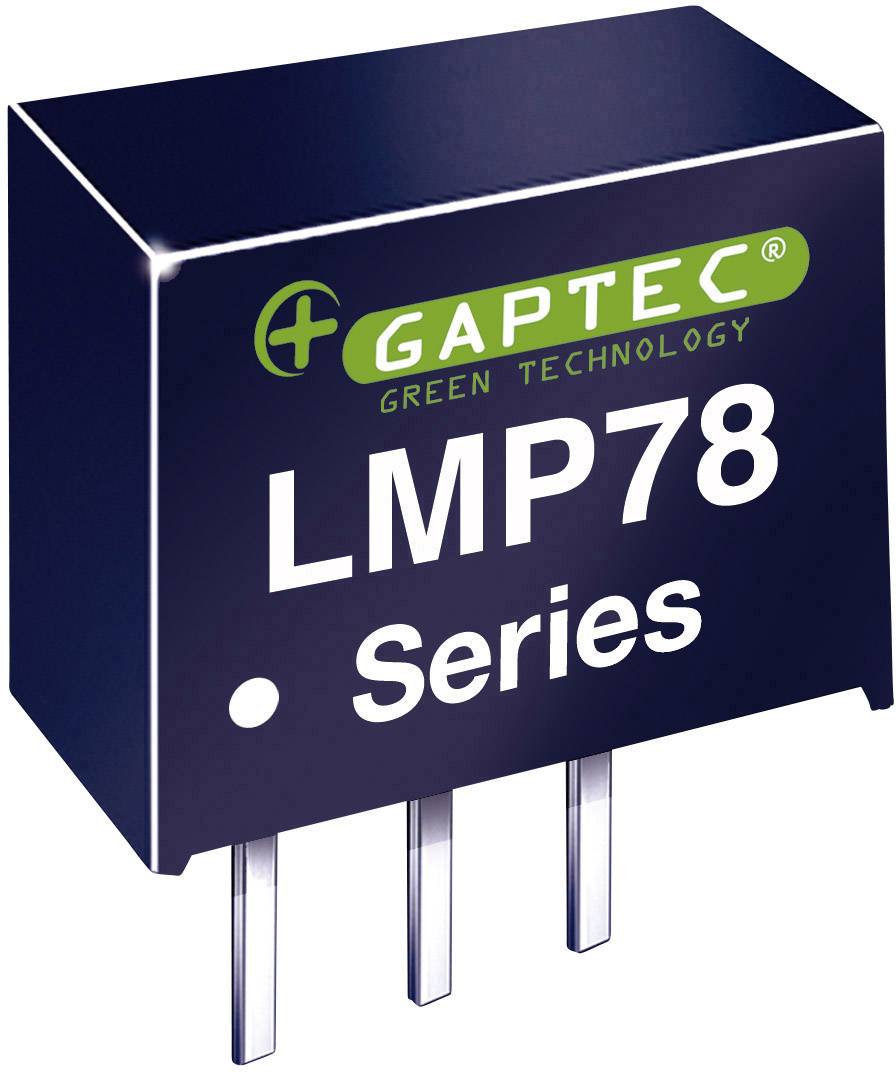

Gaptec 10070273 DC/DC converter (print) 24 V DC 5 V DC 1.5 A 7.5 W No. of outputs: 1 x Content 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 13.99 / piece)
€ 13.99
incl. VAT
Only 2 Piece(s) available
Highlights & Details
DC/DC converter PIN, not isolated
- Switching regulator LM78 Series
- Protected against permanent short circuit
- Closed housing
Technical specifications
- Product type
DC/DC converter (print)
- Type
LMP78_05-1.5
- Nominal voltage
24 V DC
- Min. input voltage
8 V DC
- Input voltage (max.)
42 V DC
- No. of outputs
1 x
- Output voltages
5 V DC
- Max. output current
1.5 A
- Output current (max.) - rounded
1.5 A
- Efficiency (max.)
90 %
7.5 W
- Enclosure
SIP 3
- Connection
Solder pins
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
+85 °C
- Dim
(L x W x H) 11.6 x 6 x 10.2 mm
- Height
10.2 mm
- Length
11.6 mm
- Width
6 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
- Type
LMP 78_05-1.5
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 1603649 Gaptec 10070273 DC/DC converter (print) 24 V DC 5 V DC 1.5 A 7.5 W No. of outputs: 1 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1603649 Gaptec 10070273 DC/DC converter (print) 24 V DC 5 V DC 1.5 A 7.5 W No. of outputs: 1 x Content 1 pc(s)
Warranty Terms
Warranty Terms 1603649 Gaptec 10070273 DC/DC converter (print) 24 V DC 5 V DC 1.5 A 7.5 W No. of outputs: 1 x Content 1 pc(s)
Description
Switching regulator of the 78 series as an alternative to the classical linear regulator. High efficiency with low output noise.
This text is machine translated.
This text is machine translated.
