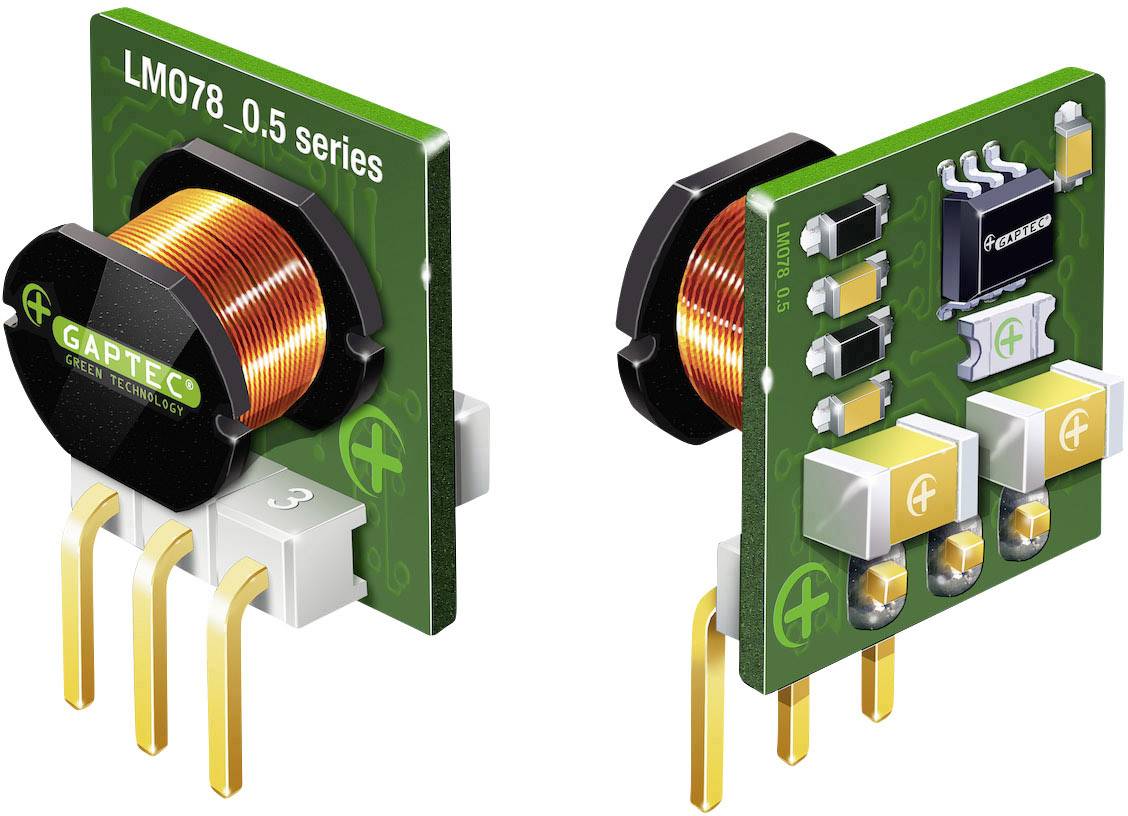

Gaptec 10070366 DC/DC converter (print) 24 V DC 12 V DC 500 mA 6 W No. of outputs: 1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 2.93 / piece)
€ 2.93
plus VAT.
Highlights & Details
DC/DC converter PIN, not isolated
- Switching regulator LM78 Series
- Protected against permanent short circuit
- Without housing
Technical specifications
- Product type
DC/DC converter (print)
- Type
LMO78_12-0.5
- Nominal voltage
24 V DC
- Min. input voltage
15 V DC
- Input voltage (max.)
36 V DC
- No. of outputs
1 x
- Output voltages
12 V DC
- Max. output current
500 mA
- Output current (max.) - rounded
500 mA
- Efficiency (max.)
92 %
6 W
- Enclosure
SIP 3
- Connection
Solder pins
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
+85 °C
- Dim
(L x W x H) 10 x 5.4 x 11 mm
- Height
11 mm
- Length
10 mm
- Width
5.4 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
- Type
LMO78_12-0.5
Documents & Downloads
Datasheet
Datasheet 1603612 Gaptec 10070366 DC/DC converter (print) 24 V DC 12 V DC 500 mA 6 W No. of outputs: 1 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1603612 Gaptec 10070366 DC/DC converter (print) 24 V DC 12 V DC 500 mA 6 W No. of outputs: 1 x Content 1 pc(s)
Warranty Terms
Warranty Terms 1603612 Gaptec 10070366 DC/DC converter (print) 24 V DC 12 V DC 500 mA 6 W No. of outputs: 1 x Content 1 pc(s)
Description
Switching regulator of the 78 series as an alternative to the classical linear regulator. High efficiency with low output noise.
