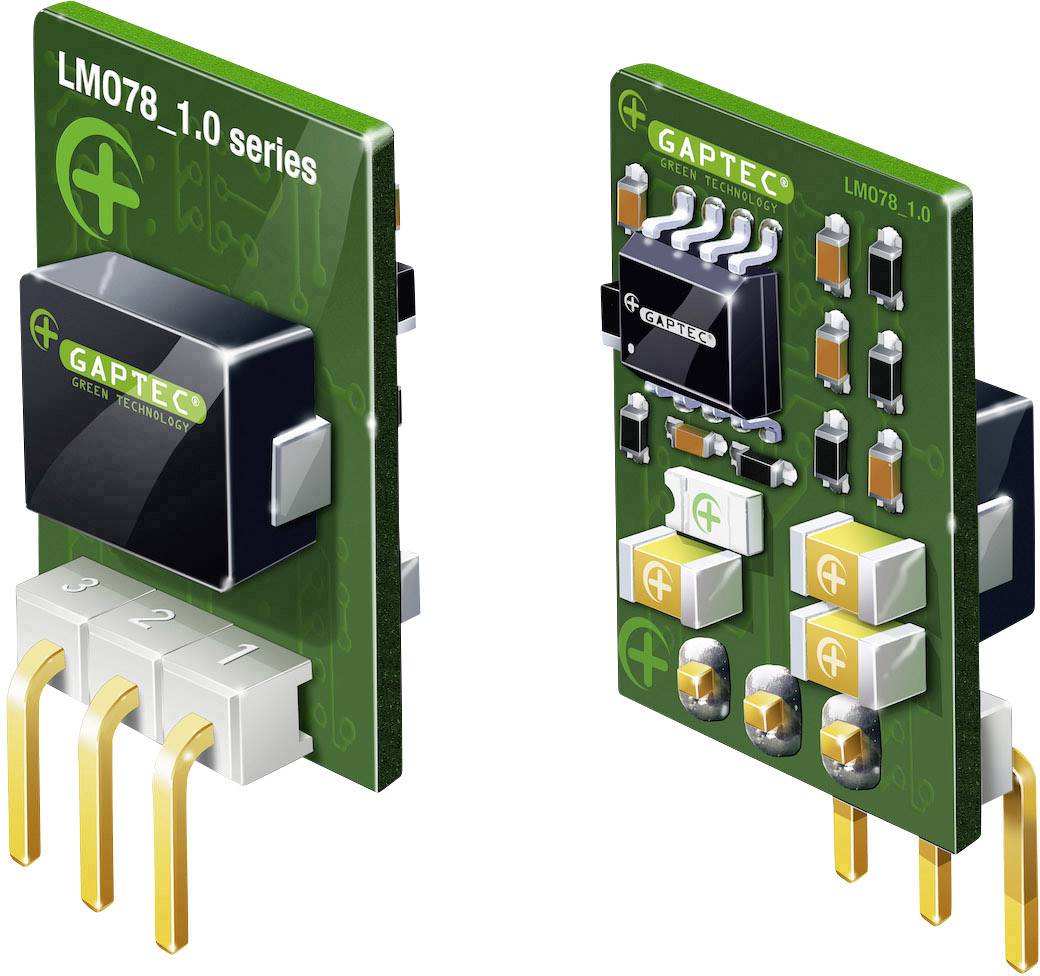

Gaptec 10070378 DC/DC converter (print) 24 V DC 12 V DC 1 A 12 W No. of outputs: 1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 4.61
5
7% = € 0.30
€ 4.31
10
9% = € 0.42
€ 4.19
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 4.61 / piece)
€ 4.61
plus VAT.
Highlights & Details
DC/DC converter PIN, not isolated
- Switching regulator LM78 Series
- Protected against permanent short circuit
- Without housing
Technical specifications
- Product type
DC/DC converter (print)
- Type
LMO78_12-1.0
- Nominal voltage
24 V DC
- Min. input voltage
16 V DC
- Input voltage (max.)
36 V DC
- No. of outputs
1 x
- Output voltages
12 V DC
- Max. output current
1 A
- Output current (max.) - rounded
1 A
- Efficiency (max.)
96 %
12 W
- Enclosure
SIP 3
- Connection
Solder pins
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
+85 °C
- Dim
(L x W x H) 10 x 5.4 x 11 mm
- Height
11 mm
- Length
10 mm
- Width
5.4 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
- Type
LMO78_12-1.0
Documents & Downloads
Datasheet
Datasheet 1603616 Gaptec 10070378 DC/DC converter (print) 24 V DC 12 V DC 1 A 12 W No. of outputs: 1 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1603616 Gaptec 10070378 DC/DC converter (print) 24 V DC 12 V DC 1 A 12 W No. of outputs: 1 x Content 1 pc(s)
Warranty Terms
Warranty Terms 1603616 Gaptec 10070378 DC/DC converter (print) 24 V DC 12 V DC 1 A 12 W No. of outputs: 1 x Content 1 pc(s)
Description
Switching regulator of the 78 series as an alternative to the classical linear regulator. Very high degree of efficiency greater than 90% with low output noise.
