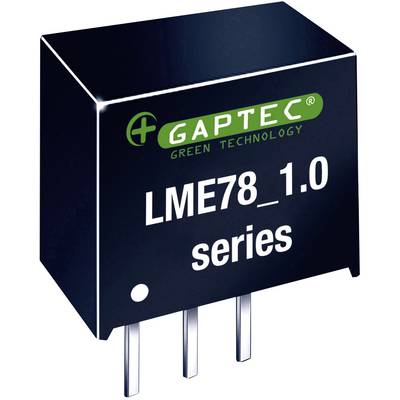

Gaptec 10070822 DC/DC converter (print) 24 V DC 3.3 V DC 1 A 3.3 W No. of outputs: 1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 4.03
5
7% = € 0.27
€ 3.76
10
9% = € 0.37
€ 3.66
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 4.03 / piece)
€ 4.03
plus VAT.
Highlights & Details
DC/DC converter PIN, not isolated
- Switching regulator LM78 Series
- Protected against permanent short circuit
- Closed housing
Technical specifications
- Product type
DC/DC converter (print)
- Type
LME78_03-1.0
- Nominal voltage
24 V DC
- Min. input voltage
6 V DC
- Input voltage (max.)
36 V DC
- No. of outputs
1 x
- Output voltages
3.3 V DC
- Max. output current
1 A
- Output current (max.) - rounded
1 A
- Efficiency (max.)
95 %
3.3 W
- Enclosure
SIP 3
- Connection
Solder pins
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
+85 °C
- Dim
(L x W x H) 11.6 x 8 x 10.4 mm
- Height
10.4 mm
- Length
11.6 mm
- Width
8 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
- Type
78_03-1.0 LME
Documents & Downloads
Datasheet
Datasheet 1603783 Gaptec 10070822 DC/DC converter (print) 24 V DC 3.3 V DC 1 A 3.3 W No. of outputs: 1 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1603783 Gaptec 10070822 DC/DC converter (print) 24 V DC 3.3 V DC 1 A 3.3 W No. of outputs: 1 x Content 1 pc(s)
Warranty Terms
Warranty Terms 1603783 Gaptec 10070822 DC/DC converter (print) 24 V DC 3.3 V DC 1 A 3.3 W No. of outputs: 1 x Content 1 pc(s)
Description
Switching regulator of the 78 series as an alternative to the classical linear regulator. Very high degree of efficiency greater than 90% with low output noise.
