Image similar

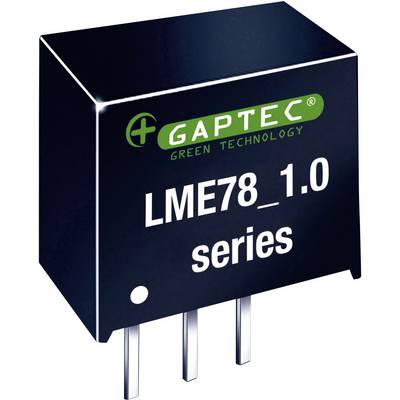

Gaptec 10070826 DC/DC converter (print) 24 V DC 15 V DC 1 A 15 W No. of outputs: 1 x Content 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 3.49 / piece)
€ 3.49
incl. VAT
14-day return policy included
Highlights & Details
DC/DC converter PIN, not isolated
- Switching regulator LM78 Series
- Protected against permanent short circuit
- Closed housing
Technical specifications
- Product type
DC/DC converter (print)
- Type
LME78_15-1.0
- Nominal voltage
24 V DC
- Min. input voltage
20 V DC
- Input voltage (max.)
36 V DC
- No. of outputs
1 x
- Output voltages
15 V DC
- Max. output current
1 A
- Output current (max.) - rounded
1 A
- Efficiency (max.)
96 %
15 W
- Enclosure
SIP 3
- Connection
Solder pins
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
+85 °C
- Dim
(L x W x H) 11.6 x 8 x 10.4 mm
- Height
10.4 mm
- Length
11.6 mm
- Width
8 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
- Type
LME 78_15-1.0
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 1603787 Gaptec 10070826 DC/DC converter (print) 24 V DC 15 V DC 1 A 15 W No. of outputs: 1 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1603787 Gaptec 10070826 DC/DC converter (print) 24 V DC 15 V DC 1 A 15 W No. of outputs: 1 x Content 1 pc(s)
Warranty Terms
Warranty Terms 1603787 Gaptec 10070826 DC/DC converter (print) 24 V DC 15 V DC 1 A 15 W No. of outputs: 1 x Content 1 pc(s)
Description
Switching regulator of the 78 series as an alternative to the classical linear regulator. Very high degree of efficiency greater than 90% with low output noise.
This text is machine translated.
This text is machine translated.
