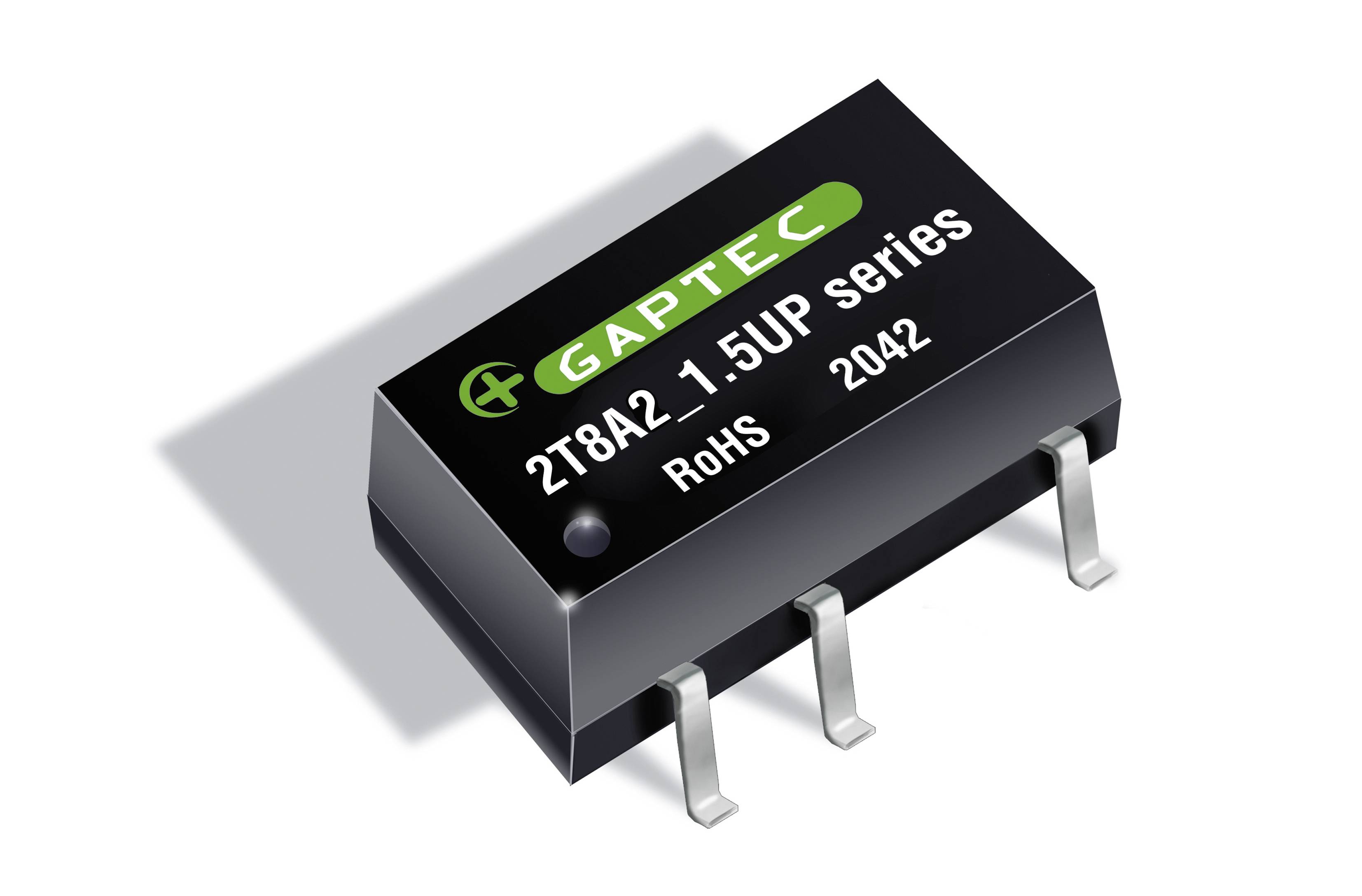

Gaptec 2T8A2_0505S1.5UP DC/DC converter 400 mA 2 W Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 5.87
5
6% = € 0.35
€ 5.52
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 5.87 / piece)
€ 5.87
plus VAT.
Technical specifications
- Product type
DC/DC converter
- Type
2T8A2_1.5UP
- Min. input voltage
4.5 V DC
- Input voltage (max.)
5.5 V DC
- Max. output current
400 mA
- Output current (max.) - rounded
400 mA
2 W
- Insulation voltage
1.5 kV
- Enclosure
SMD 8 (5-pins)
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
105 °C
- Dim
(L x W x H) 12.7 x 7.6 x 6.4 mm
- Height
6.4 mm
- Length
12.7 mm
- Width
7.6 mm
- RoHS-compliant
Yes
- Output voltage (max.)
5 V DC
- Weight
1.2 g
- Content
1 pc(s)
- Efficiency
85 %
- Max. operating temperature (derating)
105 °C
- Min. operating temperature (derating)
-40 °C
Documents & Downloads
Datasheet
Datasheet 3355003 Gaptec 2T8A2_0505S1.5UP DC/DC converter 400 mA 2 W Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3355003 Gaptec 2T8A2_0505S1.5UP DC/DC converter 400 mA 2 W Content 1 pc(s)
Description
Isolated DC-DC converter module 1 output 5V 400mA 5V input
