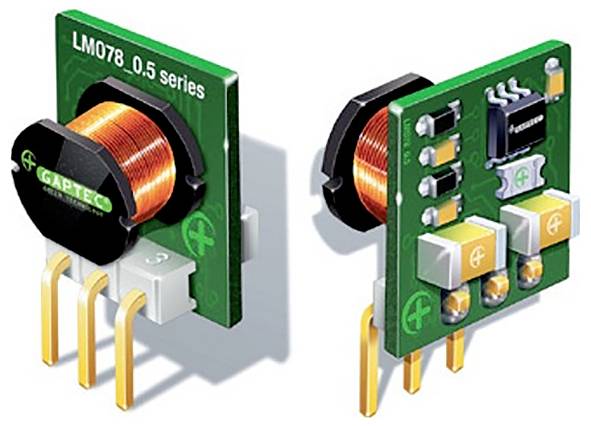

Gaptec LMO78_03-0.5 DC/DC converter 500 mA Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 3.61
10
7% = € 0.27
€ 3.34
25
11% = € 0.38
€ 3.23
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 3.61 / piece)
€ 3.61
plus VAT.
Technical specifications
- Product type
DC/DC converter
- Type
LMO78_0.5
- Min. input voltage
4.75 V DC
- Input voltage (max.)
36 V DC
- Max. output current
500 mA
- Output current (max.) - rounded
500 mA
- Enclosure
SIP 3
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
85 °C
- Dim
(L x W x H) 10.0 x 7.2 x 11.0 mm
- Height
11.0 mm
- Length
10.0 mm
- Width
7.2 mm
- RoHS-compliant
Yes
- Output voltage (max.)
3.3 V DC
- Weight
1 g
- Content
1 pc(s)
- Efficiency
81 %
- Max. operating temperature (derating)
85 °C
- Min. operating temperature (derating)
-40 °C
Documents & Downloads
Datasheet
Datasheet 3356286 Gaptec LMO78_03-0.5 DC/DC converter 500 mA Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3356286 Gaptec LMO78_03-0.5 DC/DC converter 500 mA Content 1 pc(s)
Description
Non-isolated DC-DC converter pole-module 1 output 3.3V 500mA 4.75V - 36V input
