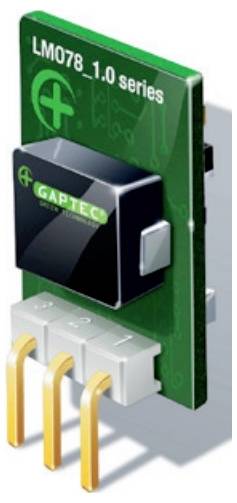

Gaptec LMO78_03-1.0 DC/DC converter 1 A Content 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 5.99 / piece)
€ 5.99
incl. VAT
14-day return policy included
Technical specifications
- Product type
DC/DC converter
- Type
LMO78_1.0
- Min. input voltage
6 V DC
- Input voltage (max.)
36 V DC
- Max. output current
1 A
- Output current (max.) - rounded
1 A
- Enclosure
SIP 3
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
85 °C
- Dim
(L x W x H) 11.5 x 7.5 x 17.5 mm
- Height
17.5 mm
- Length
11.5 mm
- Width
7.5 mm
- RoHS-compliant
Yes
- Output voltage (max.)
3.3 V DC
- Weight
2.1 g
- Content
1 pc(s)
- Efficiency
90 %
- Max. operating temperature (derating)
85 °C
- Min. operating temperature (derating)
-40 °C
Documents & Downloads
Datasheet
Datasheet 3356287 Gaptec LMO78_03-1.0 DC/DC converter 1 A Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3356287 Gaptec LMO78_03-1.0 DC/DC converter 1 A Content 1 pc(s)
Description
Uninsulated DC-DC converter pin module 1 output 3.3V 1A 6V - 36V input
