Name: Gesipa 1453876 Sealing blind rivet Steel Aluminium 500 pc(s)
Brand: Gesipa
SKU: 2910401
Availability: BackOrder

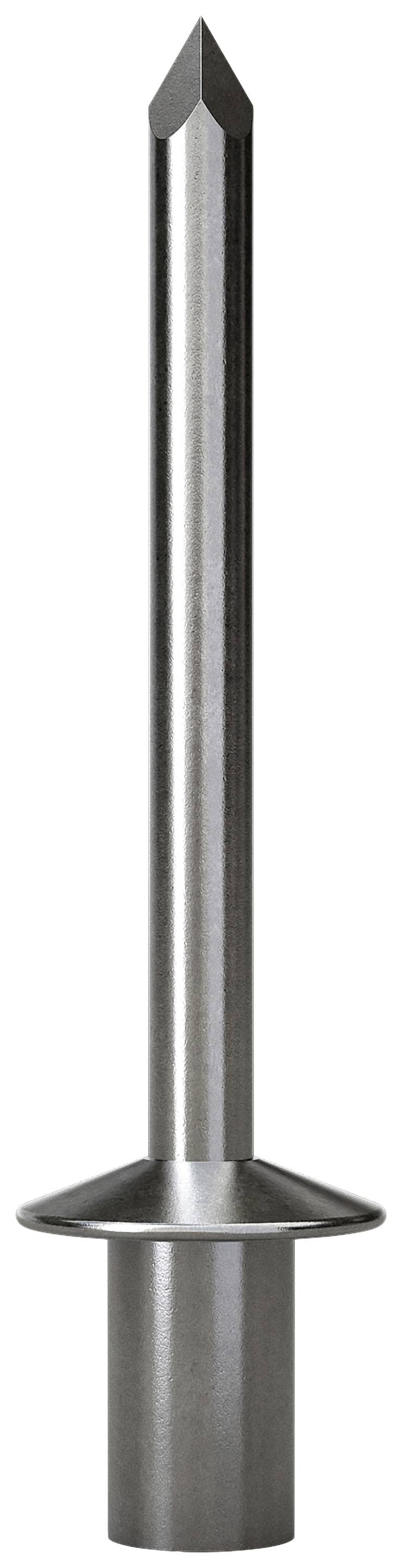

A silver metal rod with a pointed end and a round flange in the middle, most likely a tool or technical component.

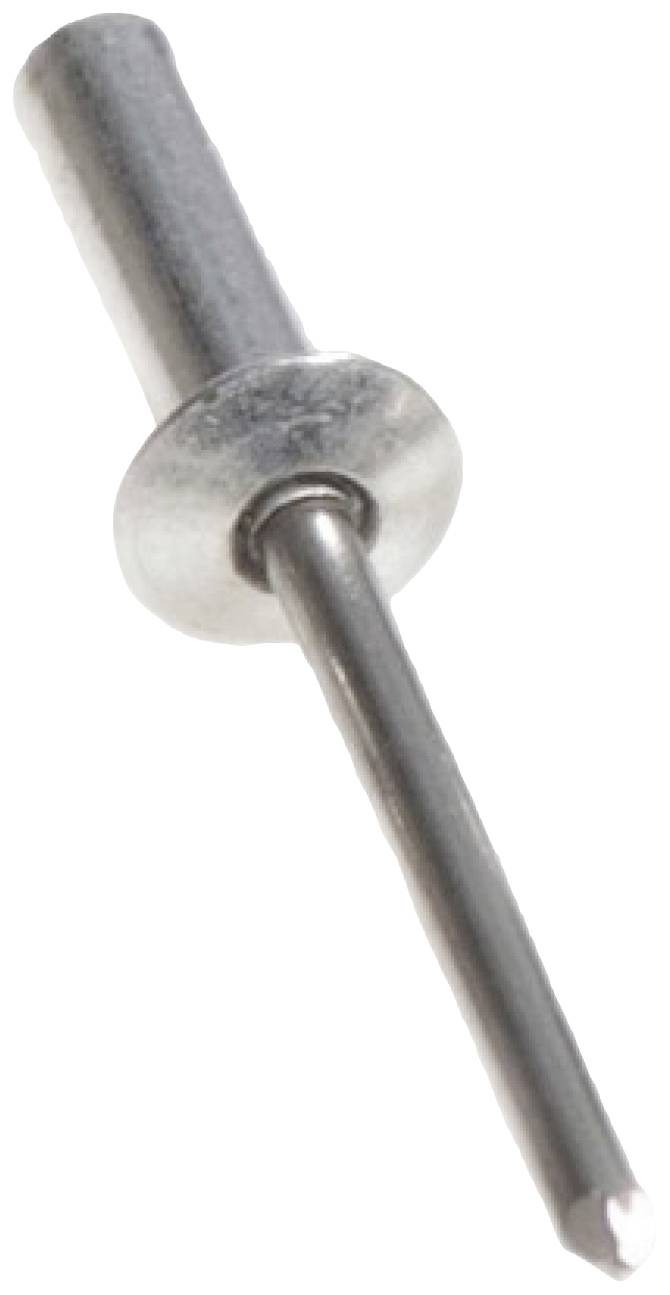

A metal pin with a flat head, possibly a rivet.

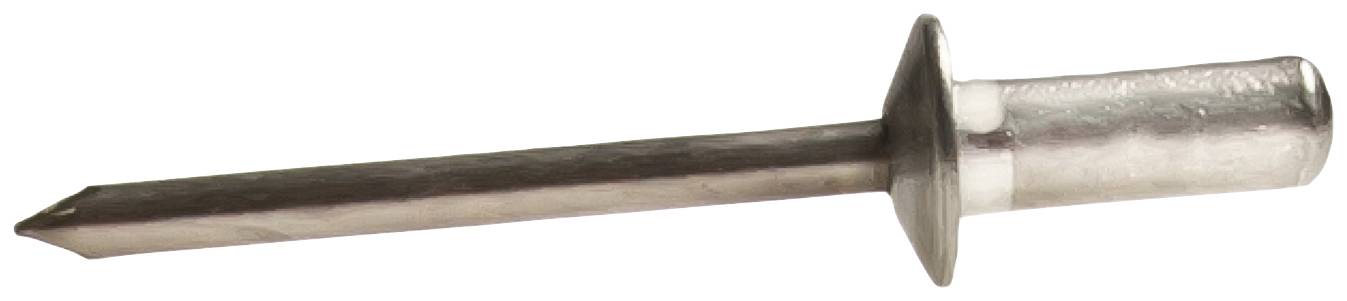

A silver pop rivet with a smooth shank and wide head, used for fastening materials where there is no access to the reverse side.

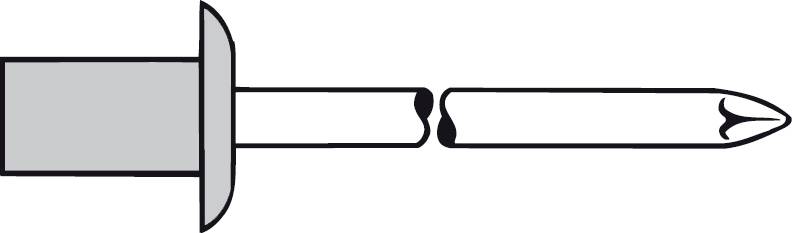

$Illustration of a fractured rivet with a protruding bolt indicating the point of fracture.$

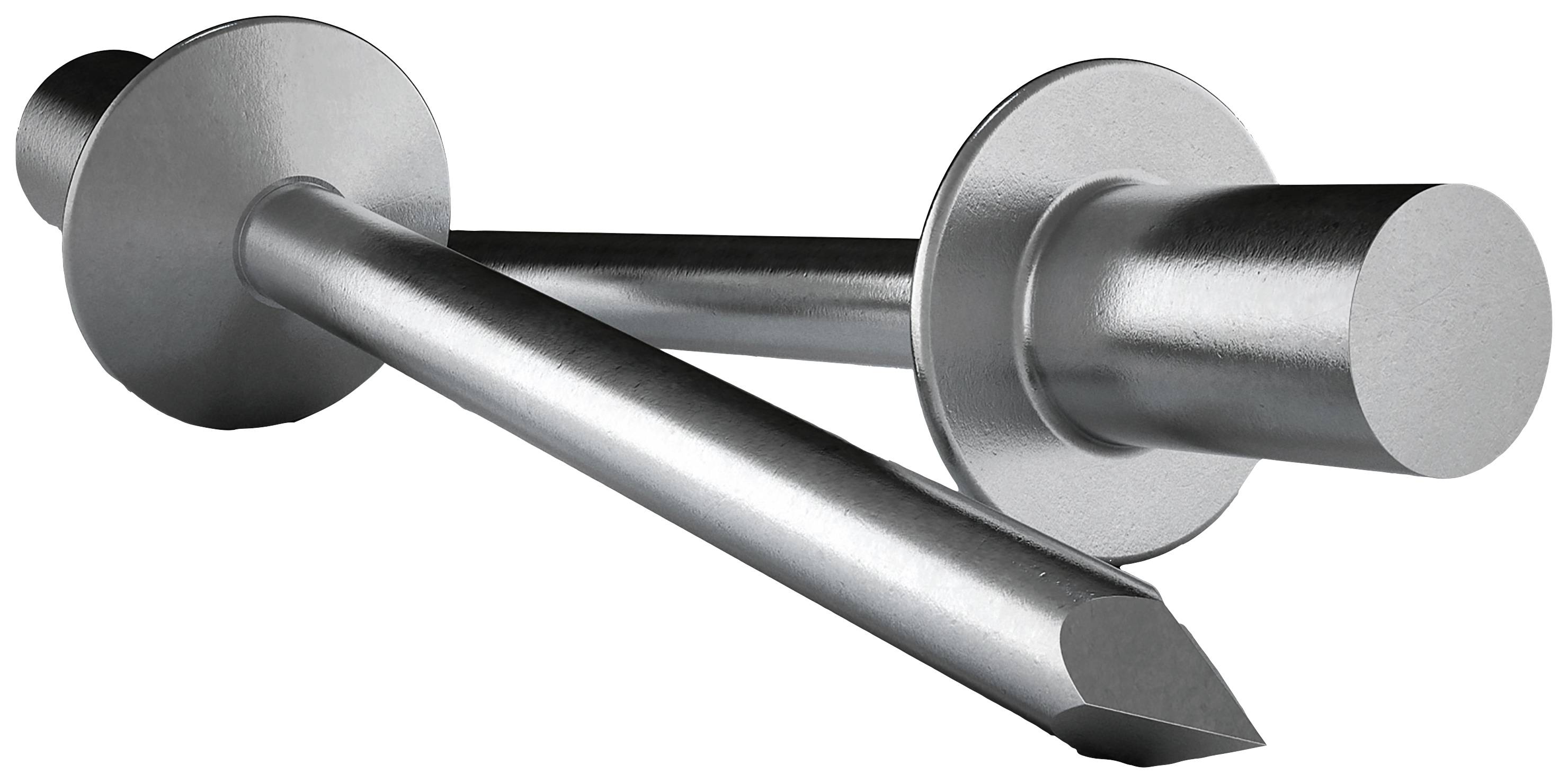

Two metallic bolts with flat, circular heads and pointed ends lie diagonally overlapping on a white background.

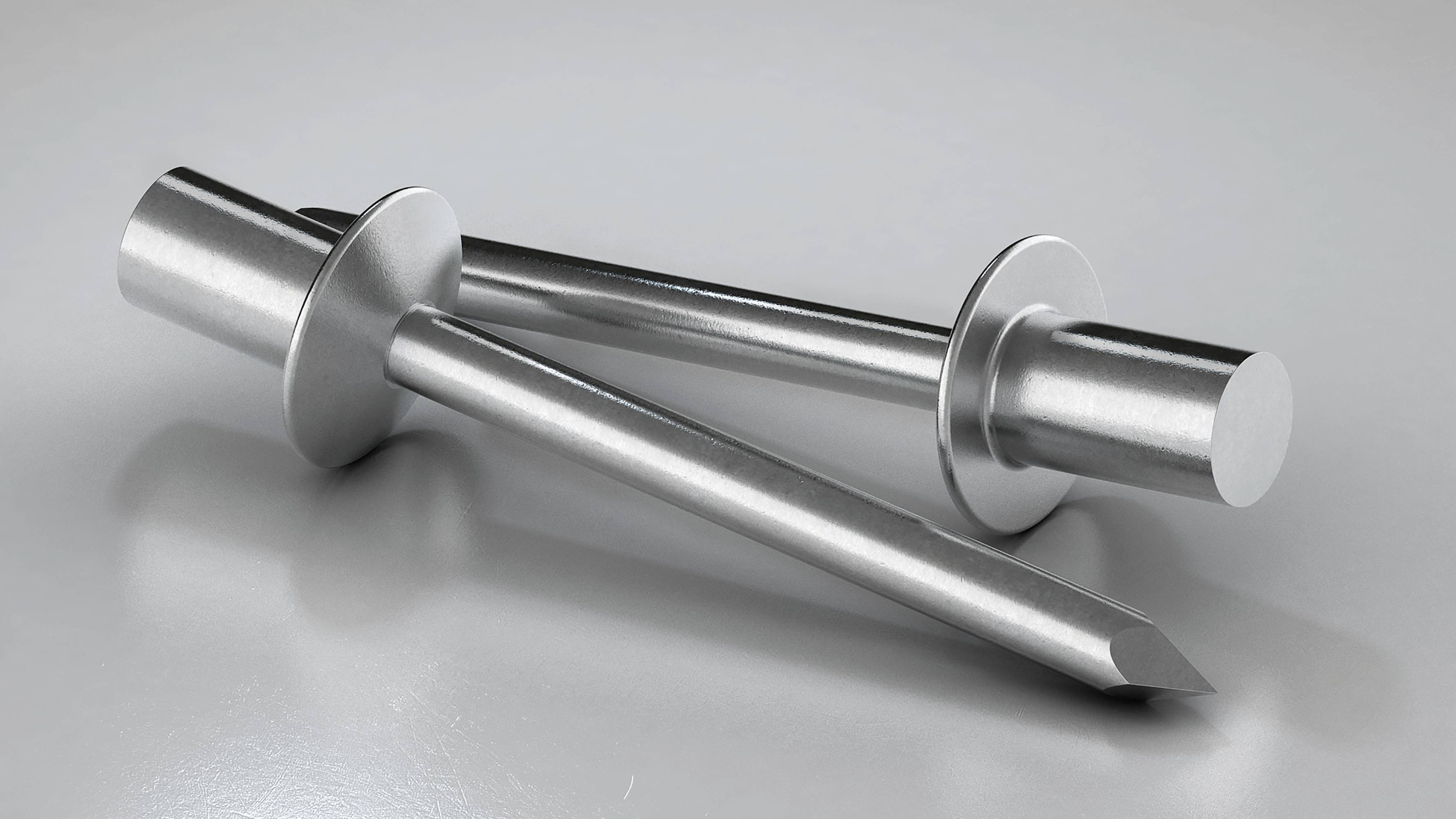

Two grey, metallic tools with round tips and flat discs as stoppers, lying on a white background.

1/6

Product type

Sealing blind rivet

Material (spike)

Steel

Material (sleeve)

Aluminium

Max. clamping range

6.5 mm

Min. clamping range

5.0 mm

EAN:

Part number:

Item no:

Dispatches on Tue 10 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 500 pc(s))

Set(s)

Total (€ 0.08 / piece)

€ 40.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Product type: Sealing blind rivet

Content: 500 pc(s)

Material (spike): Steel

Material (sleeve): Aluminium

Max. clamping range: 6.5 mm

Min. clamping range: 5.0 mm

Tubular rivet diameter: 3.2 mm

Tubular rivet length: 10.5 mm

Clamping range: 5.0 - 6.5 mm

Head Ø: 6.5

Head height: 1.2 mm

Hole diameter: 3.3 mm

Rivet mandrel diameter: 1.7 mm

Shear force: 1100 N

Head shape: Truss head

Tensile force (max.): 1250 N

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2910401 Gesipa 1453876 Sealing blind rivet Steel Aluminium 500 pc(s)

Description

CAP – The cup blind rivet

GESIPA CAP - By nature, air and water-tight.

The layout
For technical reasons, the rivet pin of the
CAP - blind rivets must be fixed in the hollow rivet.
This allows the rivet body to move during setting
however, it does not deform much. As a result,
A cup blind rivet has only marginal punching properties.
However, these are necessary in order to compensate for larger hole tolerances.

With care for the close connection:
If the GESIPA CAP blind rivet is carefully processed, it provides the base
For a reliable "dense" connection.
The technical conditions make a very careful preparation
Indispensable in the application. The drilled hole diameter should be so close
Be measured as possible to ensure a correct function in the application
Over a long term.
